Manual Optical Receiver for DS Strobes / Mirrorless or DSLR Version
Trigger you Ikelite DS strobe via fiber optic cable - or remotely off another flash - when combined with a mirrorless or DSLR camera, and/or with an LED flash trigger.
Exposure Modes
The Optical Receiver (Non-Pre-Flash) supports manual exposure modes as set on the attached DS strobe. TTL exposure mode is not supported.
Multiple Strobes
An individual Optical Receiver is needed for each strobe. Use of multiple strobes requires one Optical Receiver per strobe. The Optical Receiver supports all Ikelite DS strobes.
READ MORE: Off-Camera Remote Underwater Lighting
Camera Compatibility
|
Canon G7X-series (built-in flash) Canon Compact Point-and-Shoot (built-in flash) |
Use 4403 instead |
|
Canon Mirrorless with Ikelite TT5 Transmitter |
Use 4414 instead |
|
Canon Mirrorless or DSLR with non-Ikelite flash trigger |
YES |
| OM System / Olympus TG-series (built-in flash) | Use 4412 instead |
| OM System / Olympus Mirrorless (built-in flash) | Use 4412 instead |
| OM System / Olympus Mirrorless (AOI trigger) | Use 4413 instead |
| Nikon Mirrorless or DSLR | YES |
| Sony RX100-series (built-in flash)
Sony Compact Point-and-Shoot (built-in flash) |
Use 4403 instead |
| Sony Mirrorless or DSLR | YES |
Fiber Optic Cord Triggering
The removable fiber optic port allows for the attachment of a compatible fiber optic cord (see compatibility below).
Remote Triggering
The enlarged slave window provides approximately 90 degrees field of view for remote triggering. Or thread on the included fiber optic port for the attachment of and triggering via a fiber optic cord.
The Optical Receiver can be extended using the optional 3-foot Extension Cord for creative backlighting in wrecks, caves, and pool studio set-ups. It can also be used above water for studio photography work.
Connector Material

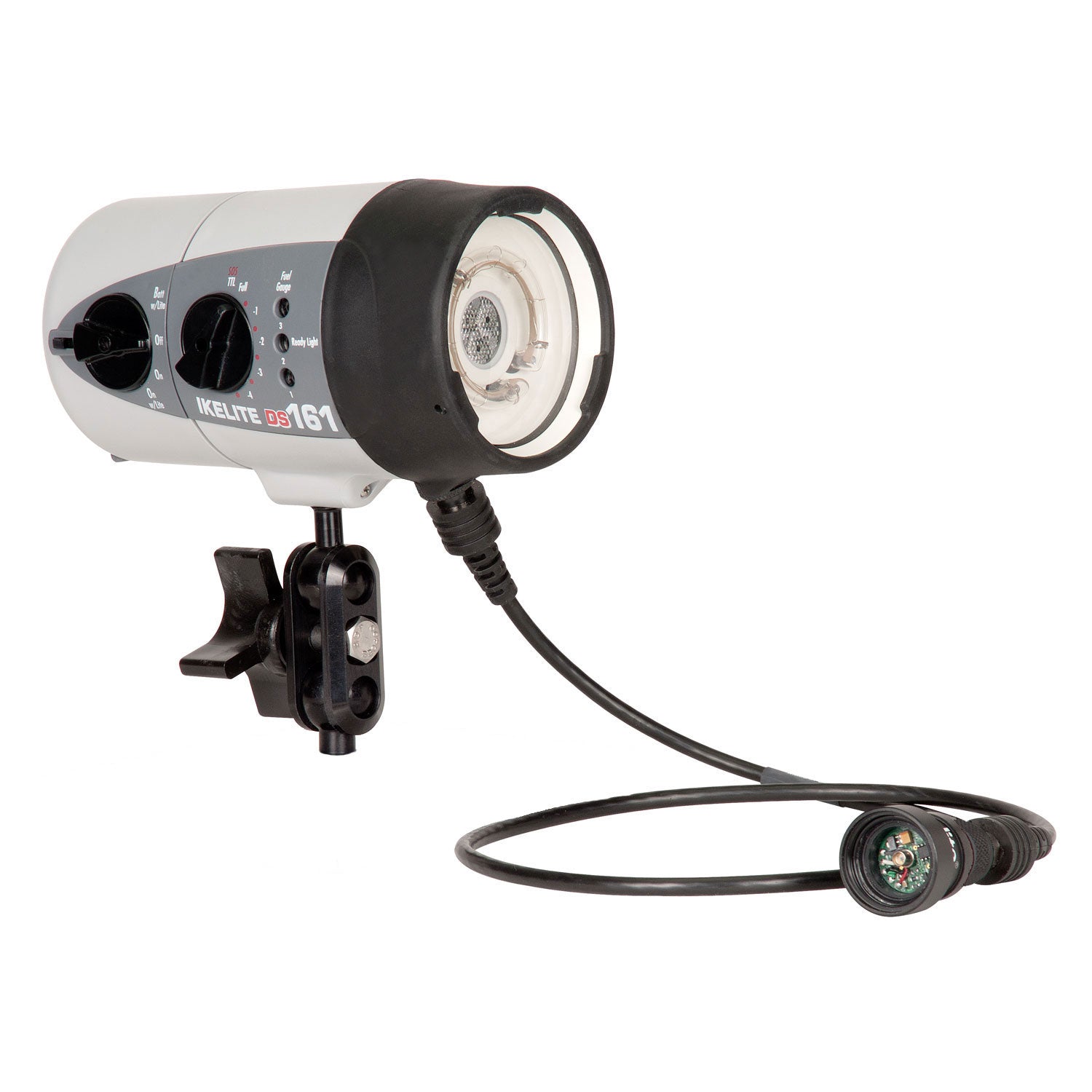

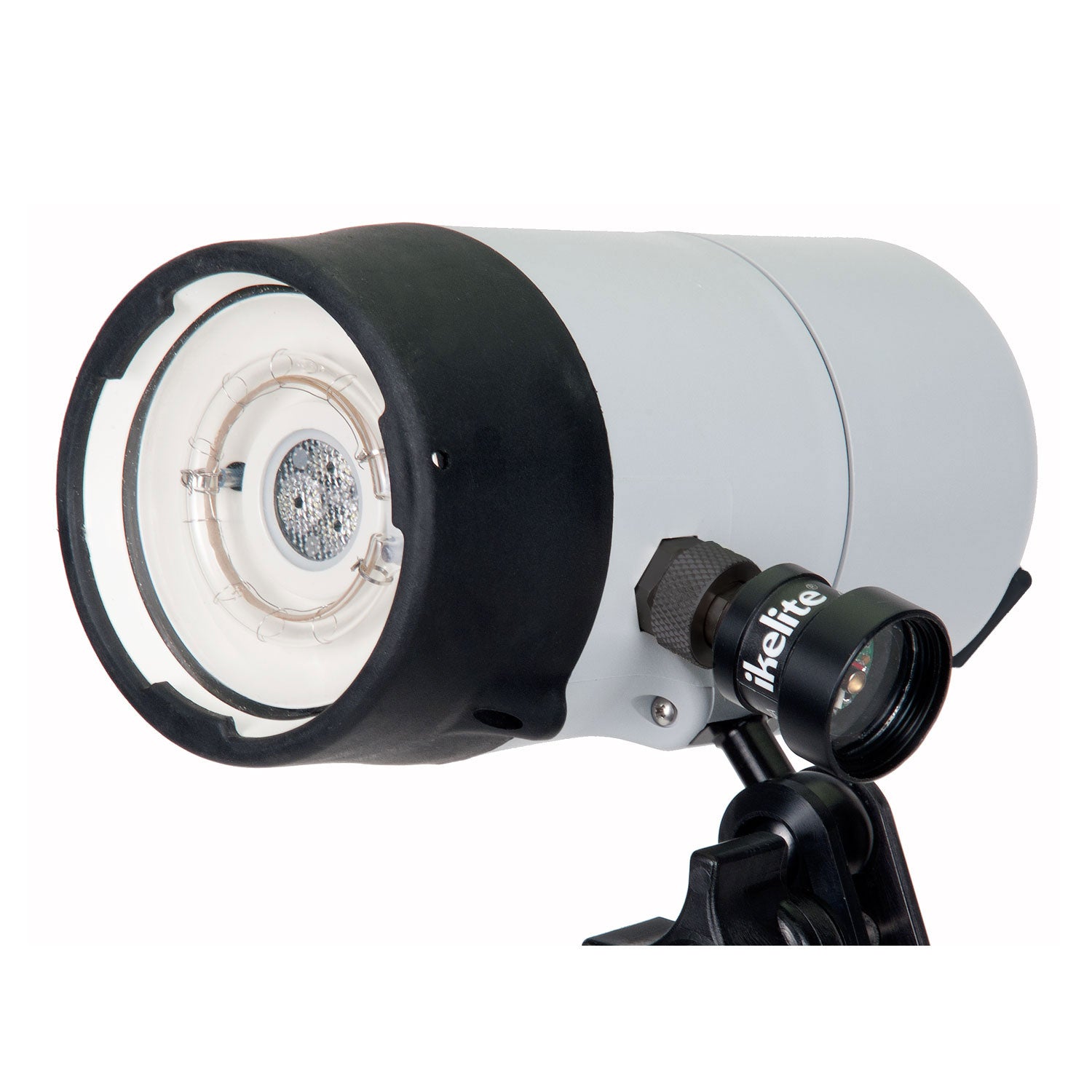

The Optical Converter simply attaches to the strobe's electrical bulkhead in place of a sync cord connector.
This product features a hard anodized aluminum connector. If you have an older strobe with a nickel plated brass (silver color) bulkhead, then we recommend returning your strobe to have the bulkhead updated to anodized aluminum to prevent seizing of the connectors.
The High Sensitivity Optical Slave Converter is perfect for use in environments with high ambient light or large distances between your remote strobe and the primary flash.
This is a non-learning, sensor which requires the camera to be in manual flash mode. This Converter will not work with a preflash. The Optical Slave Converter supports manual exposure modes as set on the attached DS strobe. TTL exposure mode is not supported.
1.1" diameter x 2.7" (28 x 69 mm)
Have questions?
We're here for you for every step along the way. Email ikelite@ikelite.com for help on gear selection, assembly, camera settings, and photo advice. We can even help you decide where to dive!
Instruction manualHigh-speed shooting
Attachment and use
In the Box
