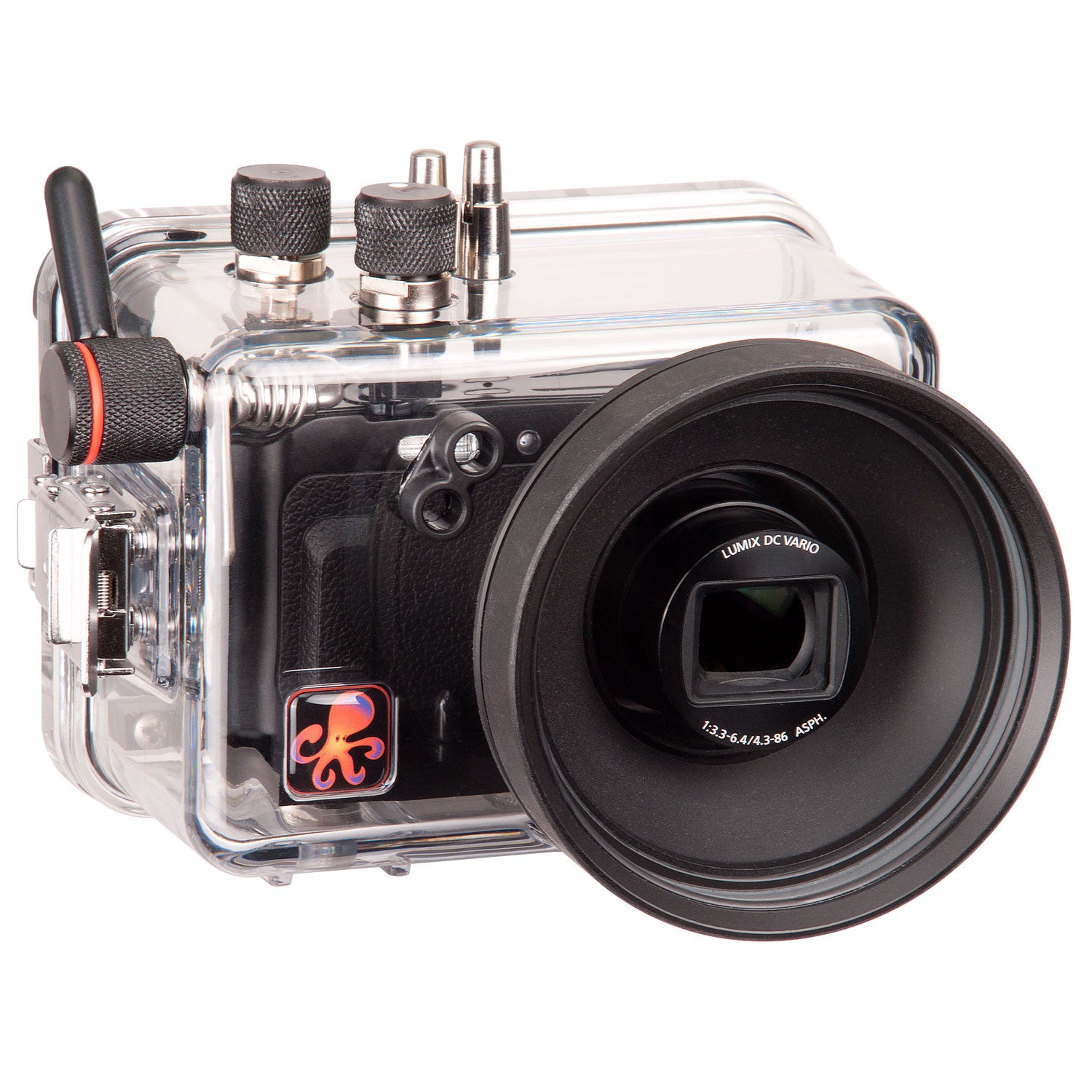

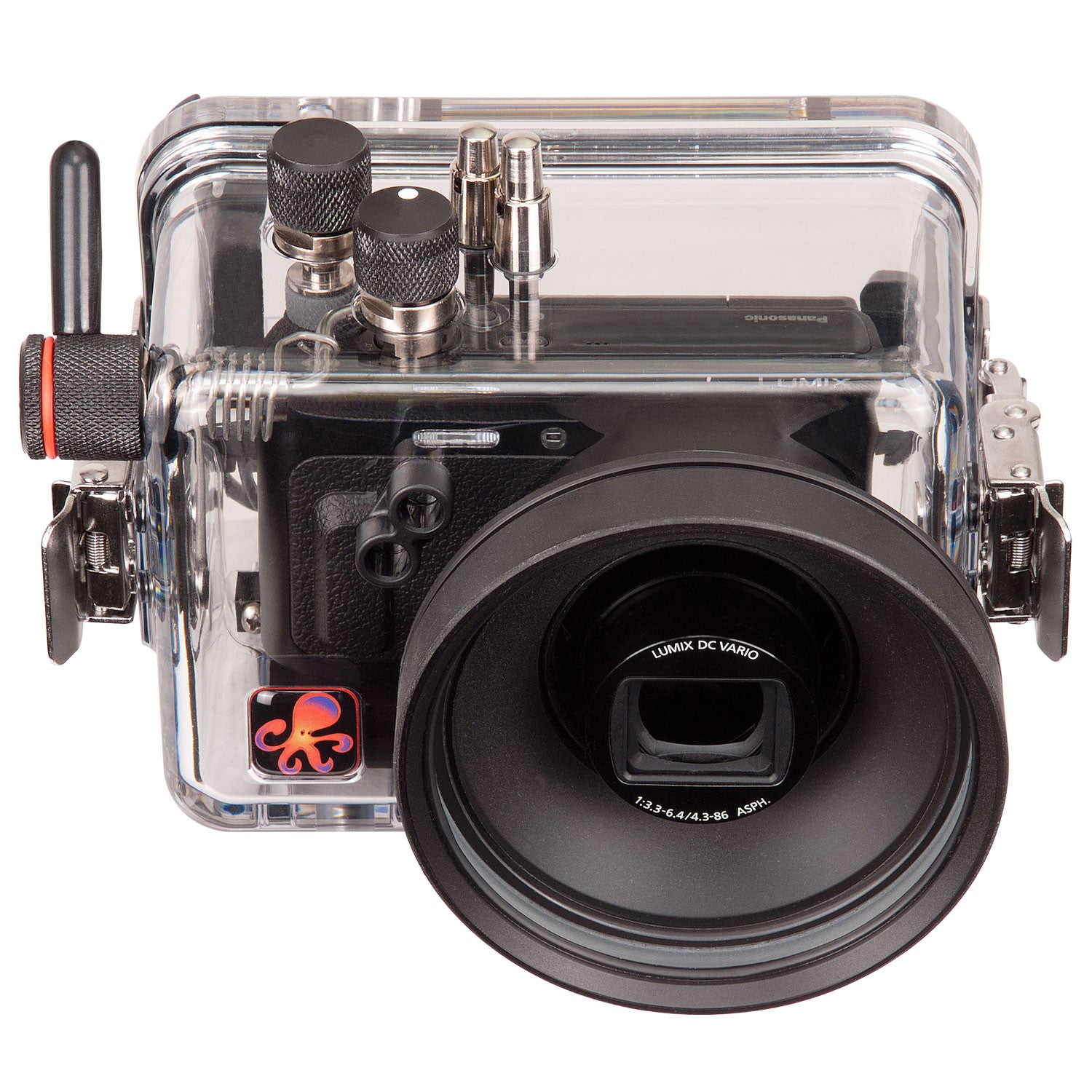

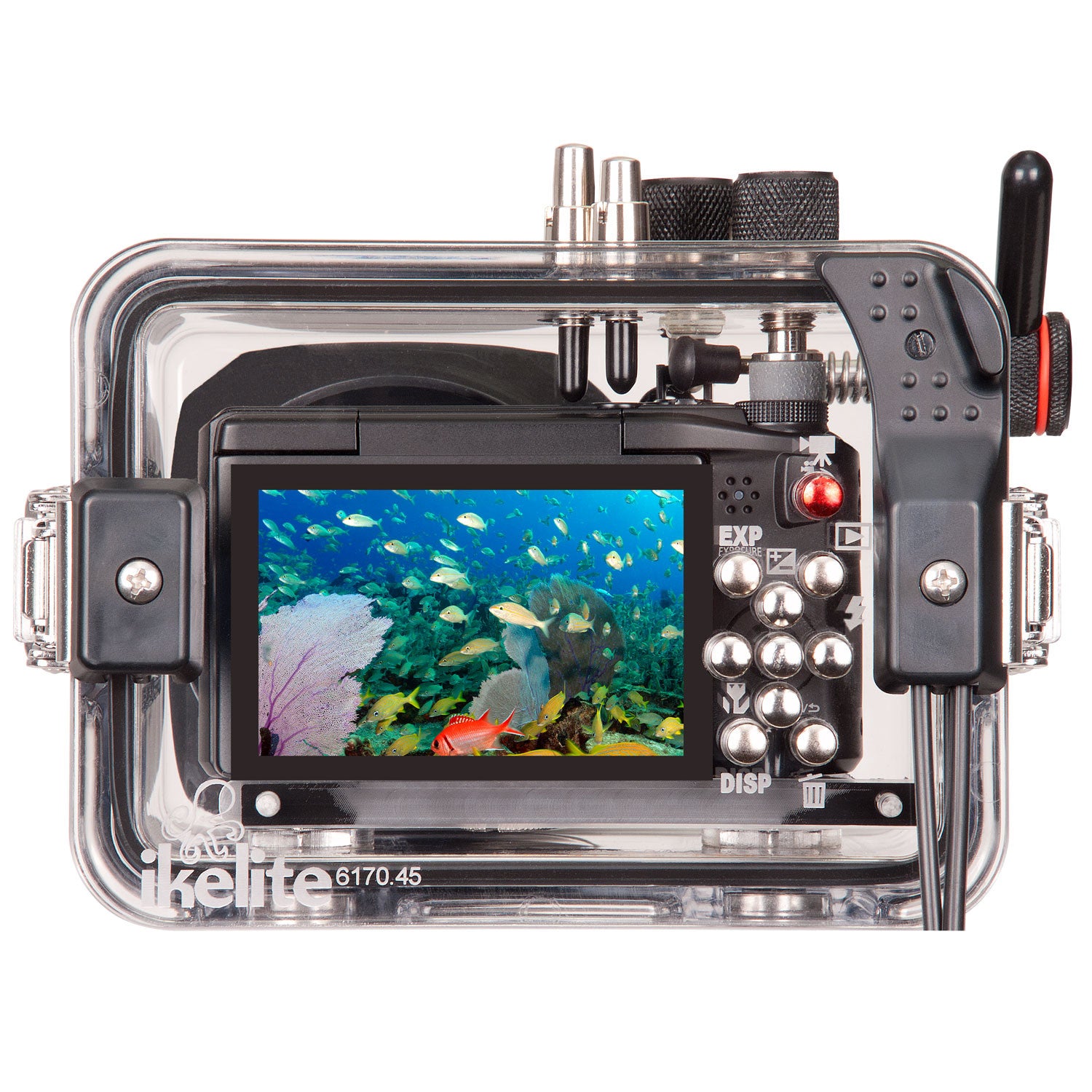

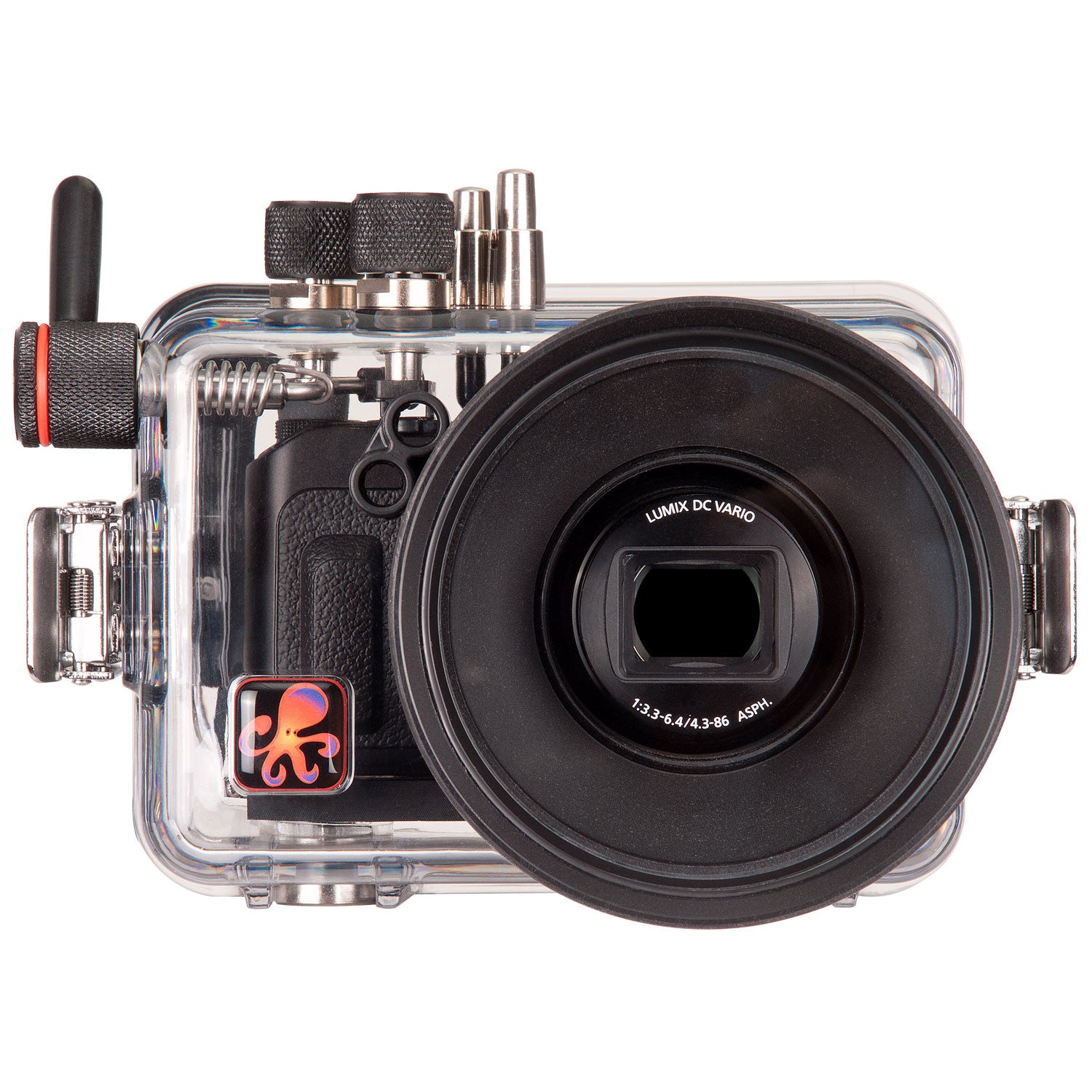

Underwater Housing for Panasonic Lumix ZS45 TZ57

Sale price$ 0.00
Sold out

This housing is out of stock and permanently out of production. We have no remaining new, blemished, or used inventory. We continue to provide service of this product even though it has been discontinued.

A full featured and durable underwater housing for Panasonic Lumix ZS45 and TZ57 digital cameras. Suitable for scuba, snorkel, surf, pool, and any application in or around the water.

Construction

There's no greater assurance than being able to see the o-ring seal. Simply close the two double-passivated stainless steel locking lid snaps, and see the o-ring form a solid black, watertight seal. Large, easy-to-reach controls are provided for all camera functions.

Ikelite products are designed, built and tested in the USA. We use locally sourced, top-grade materials. Our housings are built by hand and individually tested for fit, function and waterproof integrity. We back our products with over 50 years of experience and service within the dive industry.

Flash

An included flash diffuser improves lighting quality when the camera's built-in flash is used. A built-in flash is effective between 1-3 feet (0.3-0.9m) from the subject in clear conditions. For best results a color correcting filter or external lighting is recommended. External lighting is more powerful and can be placed in a position to virtually eliminate the backscatter - or "snow" - from your underwater images.

The optional AF35 strobe triggers and provides automatic TTL exposure by watching the camera's built-in flash, without the need of fiber optic cords or sensors. Alternatively, two ports are provided for the connection of up to two Ikelite-, SEA&SEA-, or Olympus-type fiber optic cords.

Wide Angle, Macro + Filters

The housing port is designed to accept color filter, wide angle, and macro options for 3.9-inch diameter ports. Light is absorbed very quickly as it passes through water. A subject will look darker, less colorful and somewhat grainy when viewed through even a few feet of water. The addition of a compatible wide angle accessory expands the camera's field of view underwater, providing the opportunity to get as close as possible to the subject and reduce the amount of water light passes through. The results speak for themselves - photos with the best color, exposure and clarity possible.



    In the Box

    Housing

    Vinyl port cover # 0200.08

    Flash diffuser

    Flash deflector

    Silicone lubricant 1cc tube



    Specifications

    200" (60m) depth rating

    Controls for all camera functions

    Near neutral buoyancy in fresh water

    12-24 thread tray mounting with 3" (76mm) spacing

    2.7 lb (1.2 kg)

    6.8 x 4.9 x 5.3" (173 x 122 x 135 mm)

    3.9" diameter lens port

    2 year limited warranty



    Documentation

    Instruction Manual
