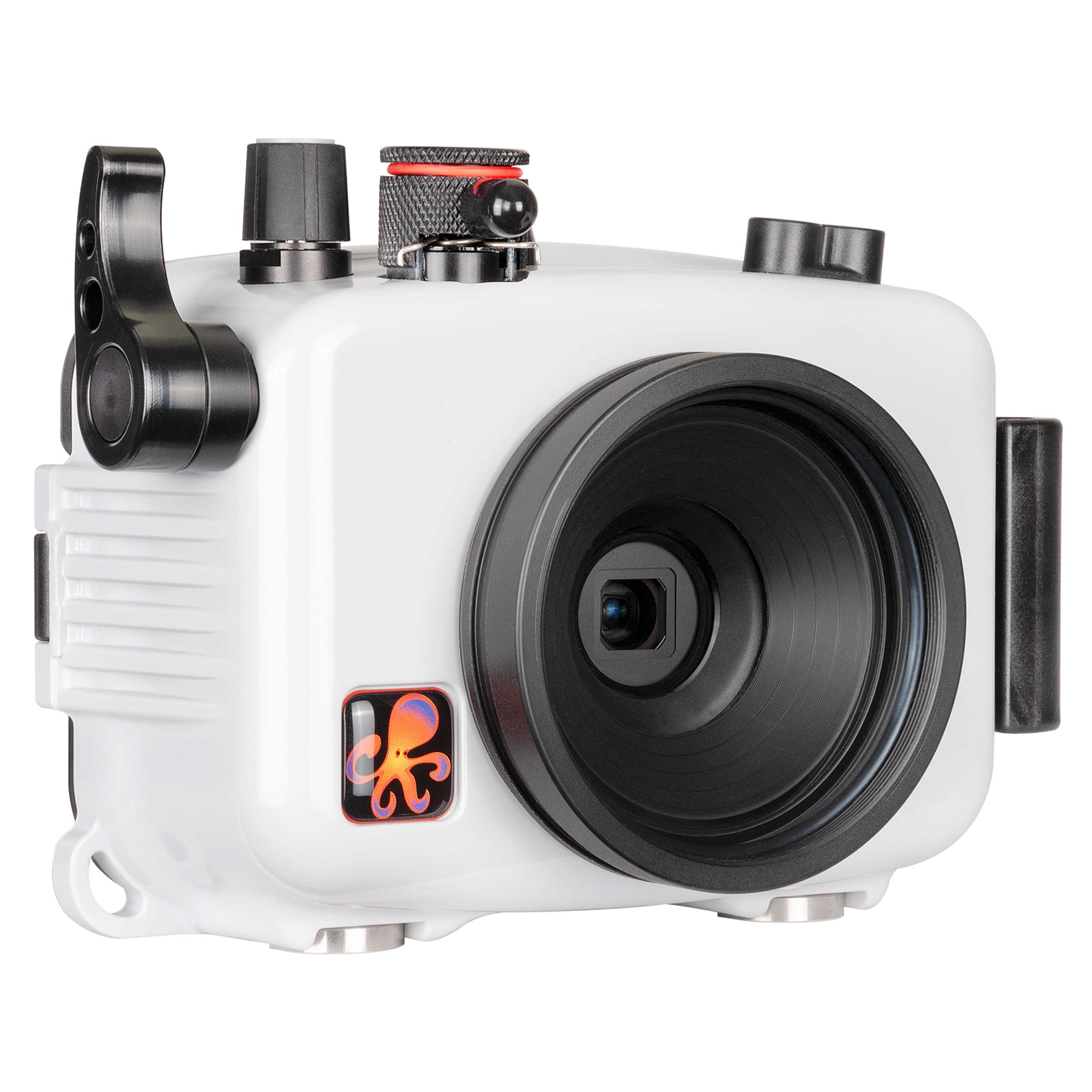

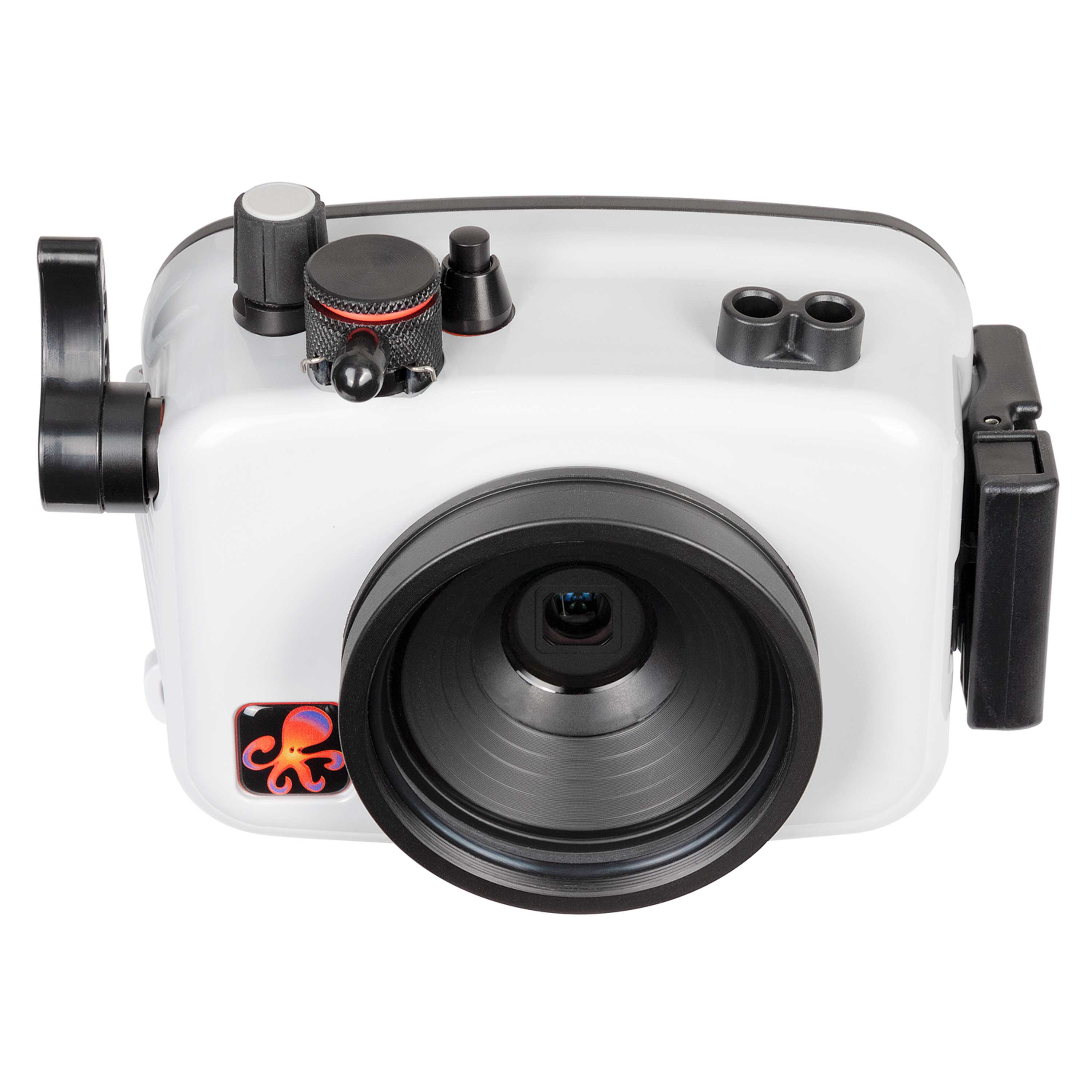

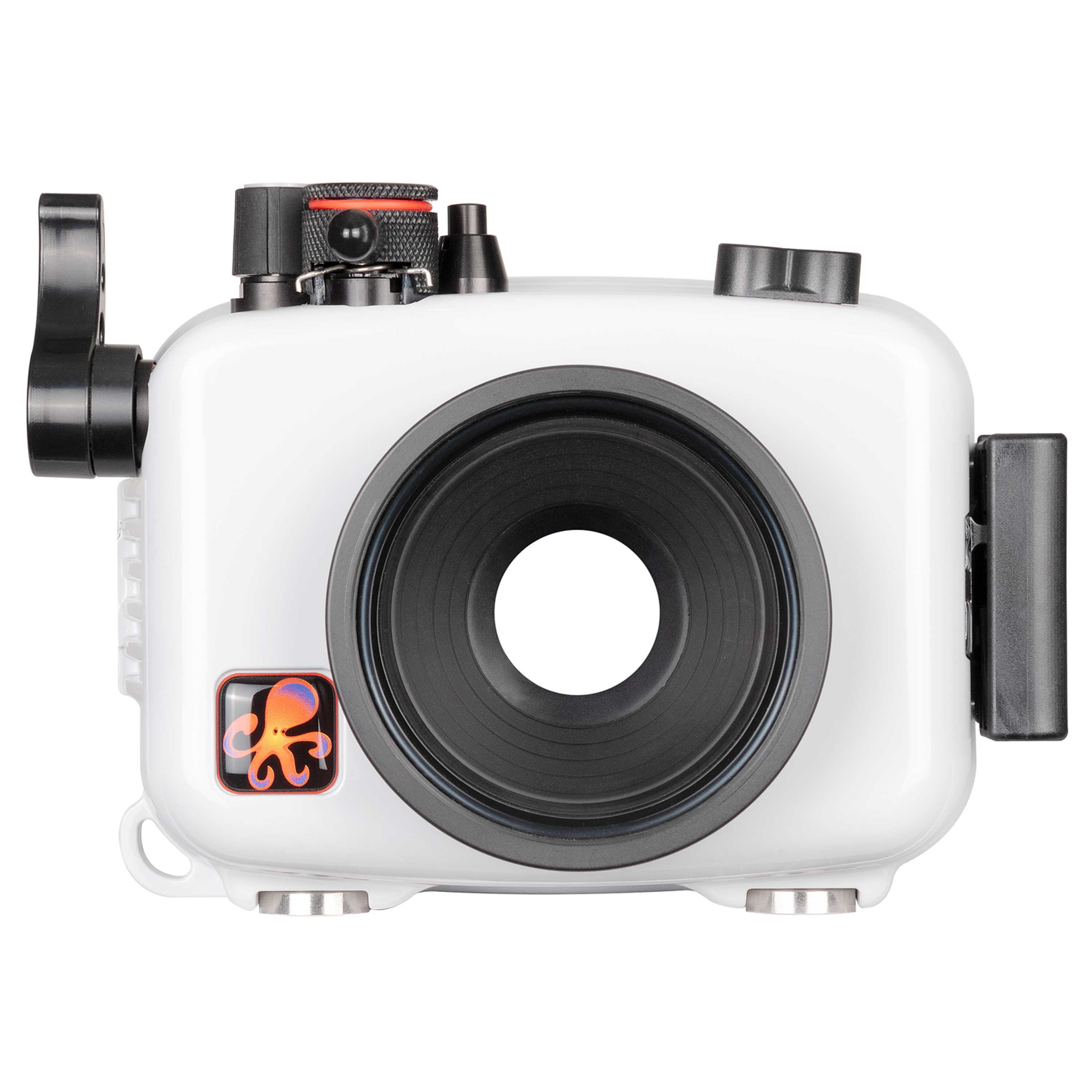

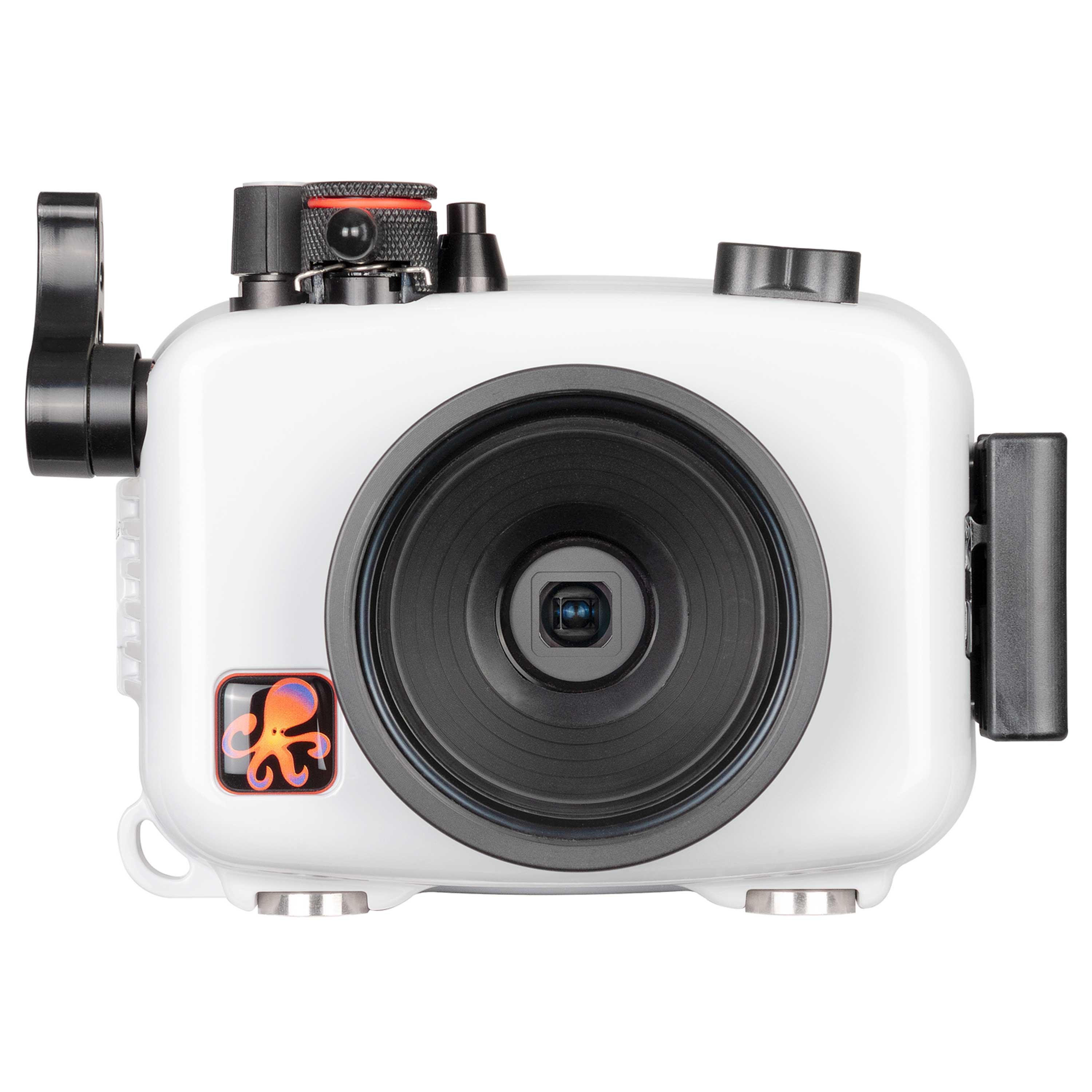

Underwater Housing and Olympus Tough TG-6 Camera Kit

Product # 6233.09
  • Underwater Housing and Olympus Tough TG-6 Camera Kit

Underwater Housing and Olympus Tough TG-6 Camera Kit

Product # 6233.09

* Shipping only available within the United States. Outside of the US, please visit the Stores section to find and contact your local Ikelite Dealer. Prices are listed in USD and do not include taxes, duties, or currency conversion fees.

About this Product

The TG-6 has a bright 25-100mm mid-range zoom lens and a high-speed back-lit CMOS image sensor for excellent performance in low-light settings. The microscope mode has been improved since the previous TG-5 model and is capable of macro close-up images that are as good as if not better than expensive full-frame DSLR cameras.

The TG-6 supports ultra HD 4K video and RAW image capture, which is a powerful tool for post-dive color corrections using either Adobe Lightroom or the included software. The TG-6 is waterproofed to 50' (15.2m) even without a housing, which makes set-up a little less stress-inducing.

Flash

Due to the position of the camera's flash in relation to its lens, the built-in flash is not suitable to illuminate photos under water. For the best color and clarity, we recommend adding a filter, strobe, or constant-on light. The built-in flash may be used to trigger external strobes via fiber optic sync cord. Two ports are provided for the connection of up to two fiber optic cords.

Any current model Ikelite DS strobe can be triggered fiber optically with true automatic Olympus TTL exposure using the RC1 TTL Receiver # 4412 and Fiber Optic Cord # 4501. The AF35 strobe is not compatible with this housing. Read more about fiber optic strobe options here...

Wide Angle, Macro + Filters

Our 3" diameter ports feature a 67mm thread on the front for the easy attachment of external wide angle and macro wet lenses. Wide angle lenses make objects appear smaller, so that you can fit more into your frame underwater. Macro close-up lenses make small objects appear larger, so that tiny creatures will fill your frame.

The DC1 6" Dome Port # 6401 offers the best of everything: wide angle, macro, and over-under all on one dive. This special dome port replaces the housing's standard port and provides sharp 25mm wide angle, full zoom through and macro capabilities, and is perfect for split shots (half-in, half-out of the water).

The WD-3 Wide Angle Dome # 6430.3 attaches to the front of the standard port and provides mid-range angle of view with no vignetting (dark shadows in the corners of the image).

The W-30 Wide Angle Lens # 6430, INON UWL-H100, and other 67mm threaded wide angle lenses, provide a wider maximum angle of view. Because these are separated from the camera's lens by glass, air, and water, some vignetting and edge distortion will be present. These effects can be reduced or eliminated by using a smaller aperture, zooming in slightly, and/or cropping in post-production.

External macro lenses with 67mm threads from INON, Epoque, and other manufacturers, can be attached directly to the front of the housing's port.

3" diameter color filters press directly onto these ports. Most wide angle lenses require a 3.6" diameter color filter. Refer to the product page for information on color filter compatibility.

Specifications

200 ft (60m) depth rating

Controls for all camera functions except INFO button

Slightly positive buoyancy in fresh water

Central 1/4-20 thread tray mounting

1.1 lb (500 g)

6.2 x 5.5 x 3.6" (158 x 141 x 85 mm)

3.0" diameter glass lens port



In the Box

Ikelite Underwater Housing # 6233.06

Olympus Stylus TOUGH TG-6 Digital Camera (Red)

Olympus LI-92B Rechargeable Lithium-Ion Battery (3.6V, 1350mAh)

Olympus CB-USB8 Cable (26")

Olympus F-2AC AC Adapter

Olympus Wrist Strap

Olympus Software CD-ROM



Documentation

Instruction Manual
