DL 8 inch Dome Port

Product # 75340
  • 75340 DL 8 inch Dome Port

DL 8 inch Dome Port

Product # 75340

* Shipping only available within the United States. Outside of the US, please visit the Stores section to find and contact your local Ikelite Dealer. Prices are listed in USD and do not include taxes, duties, or currency conversion fees.

About this Product

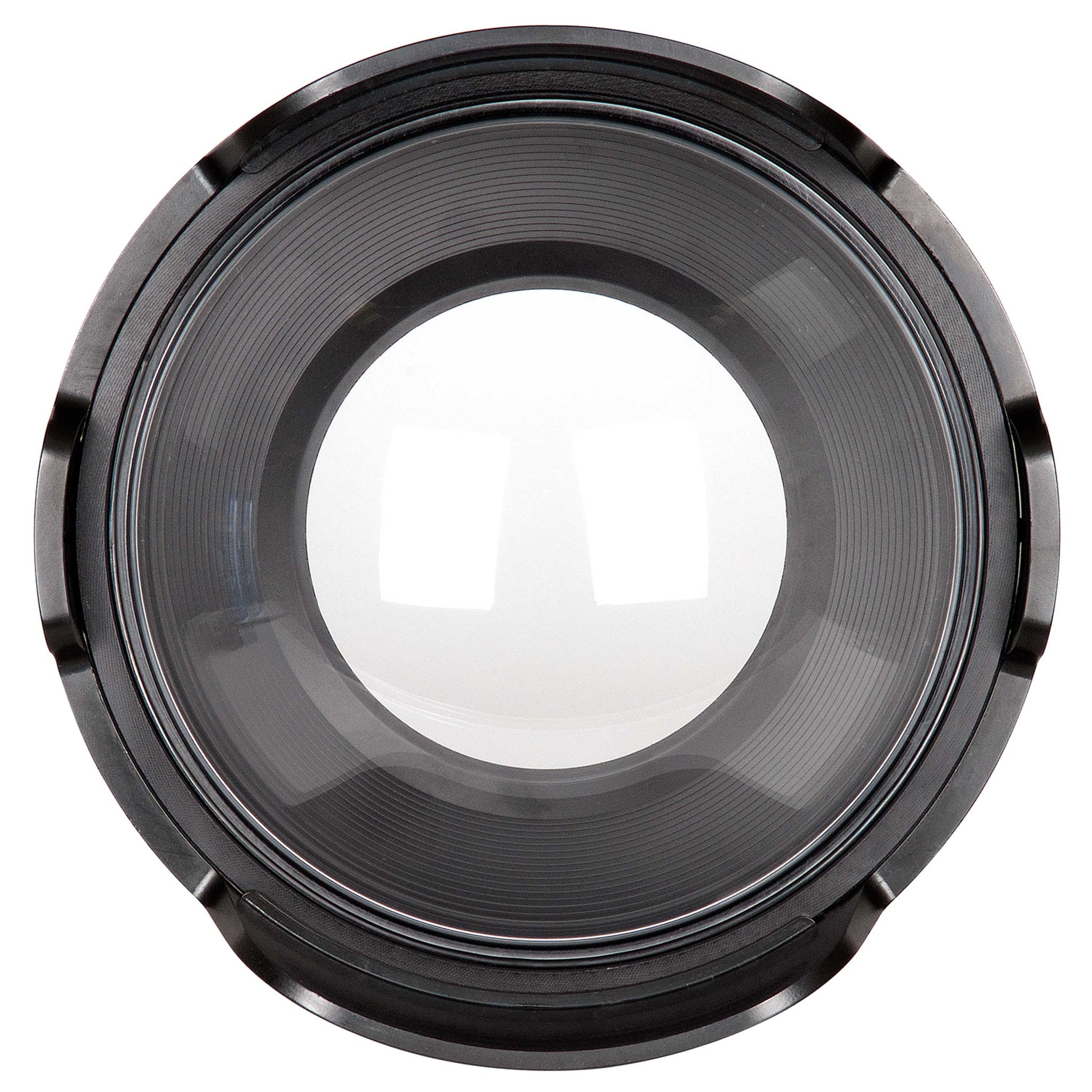

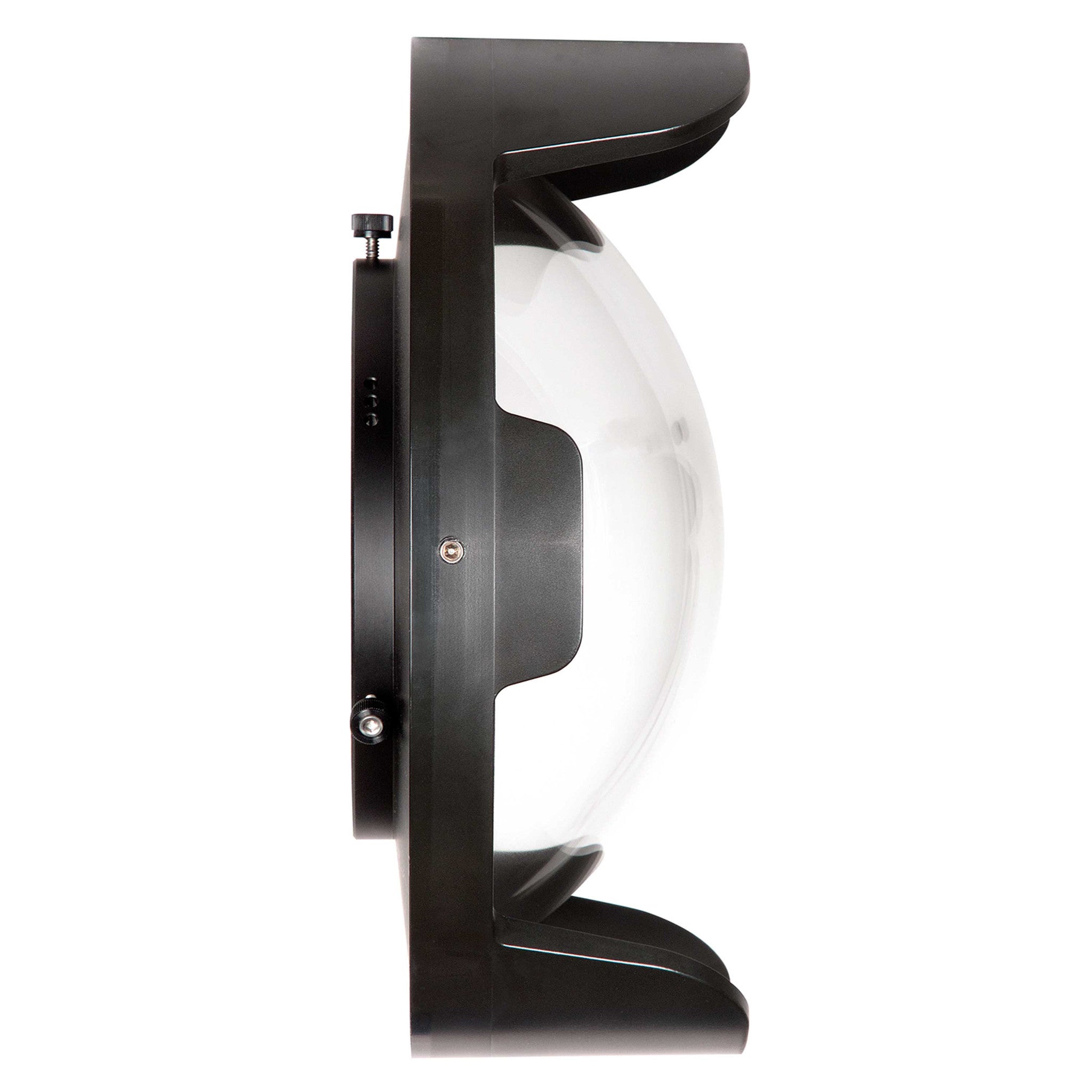

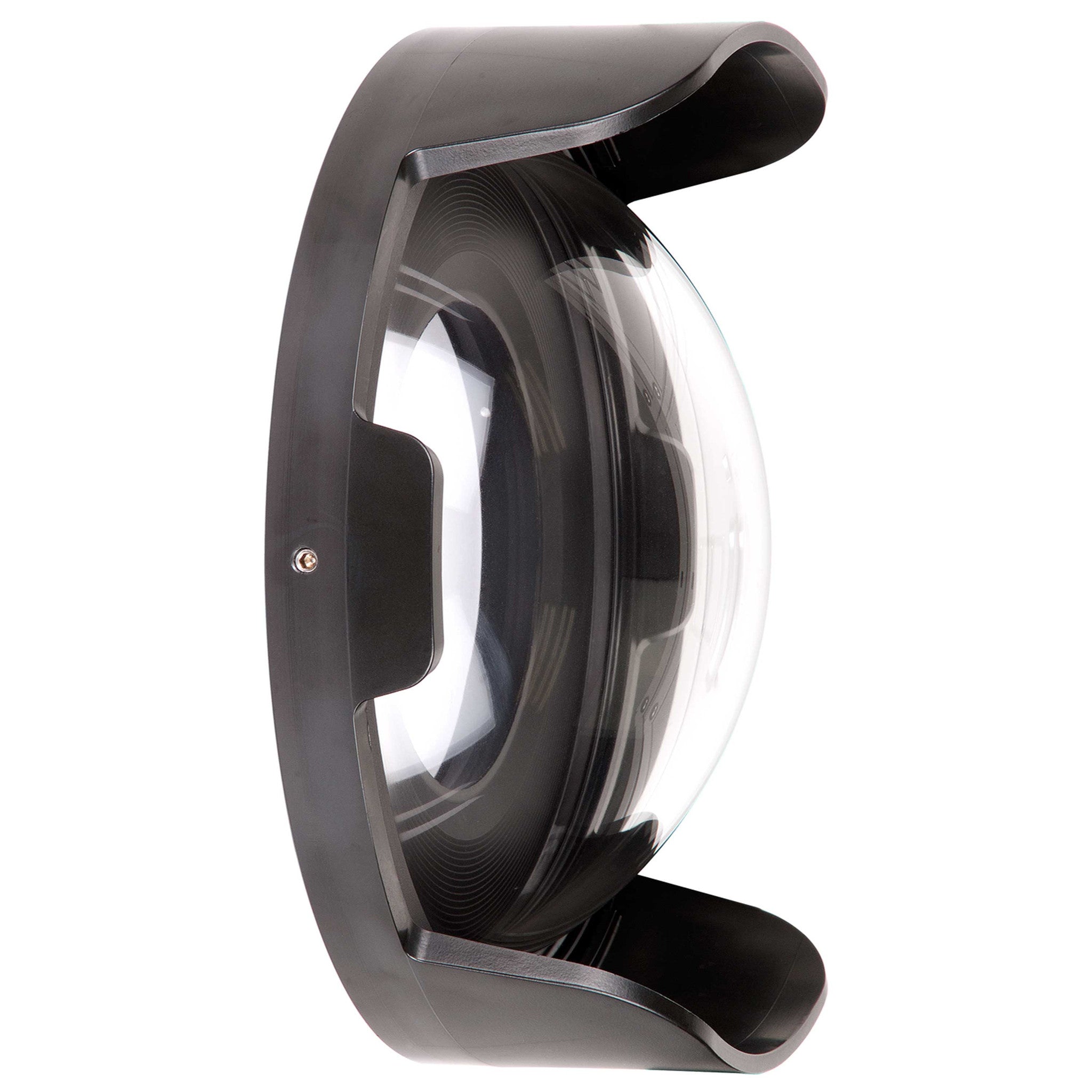

An 8” diameter dome made of optical grade acrylic. Comparable image quality to glass yet several pounds lighter and easier to handle, especially at the surface of the water.

External filters are not compatible with dome ports. Look for filters that attach to your lens prior to installation. We recommend Magic Filters (not sold by Ikelite).

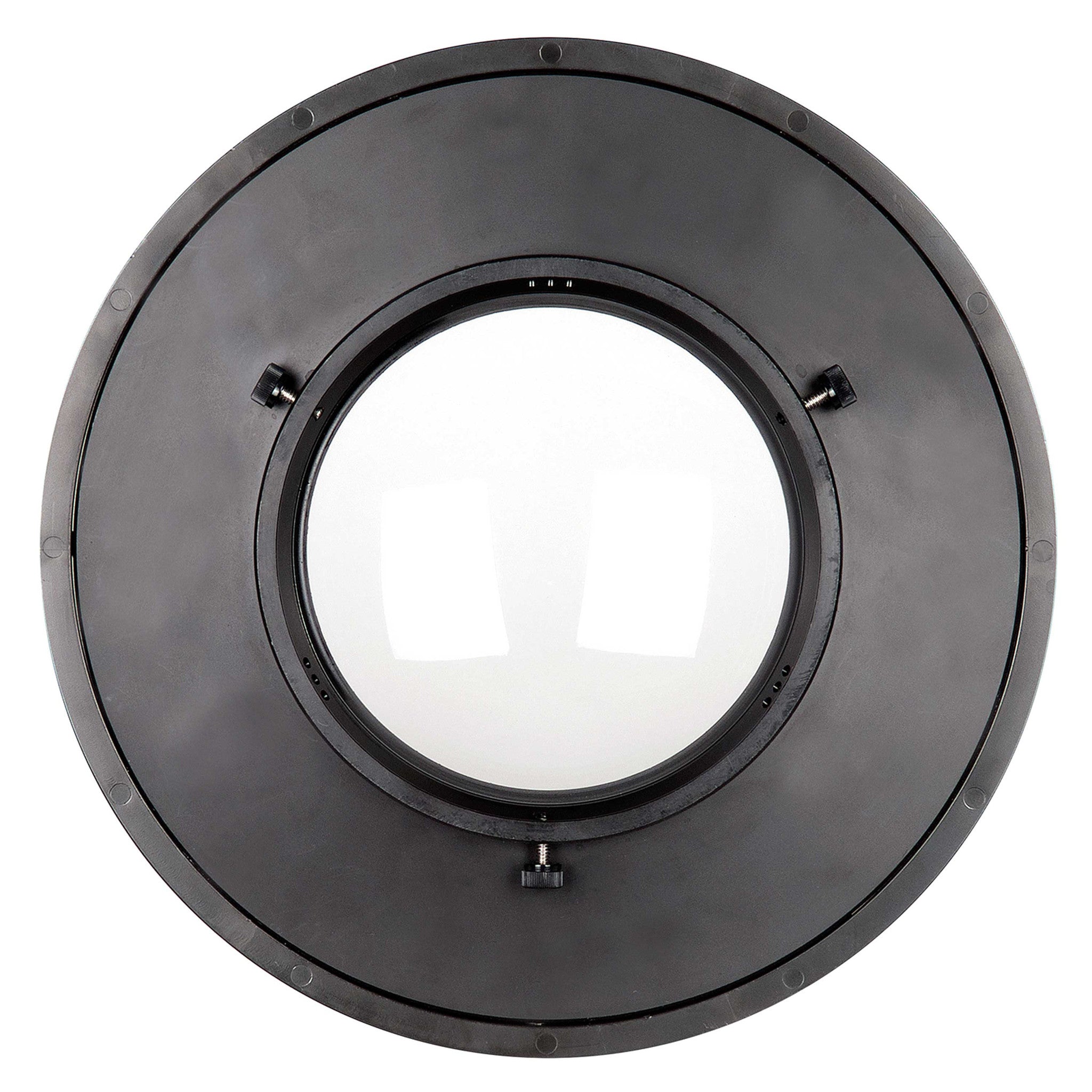

This port can be attached directly to housings featuring the Dry Lock (DL) port system or combined with DL extensions.



Optical grade acrylic 8" diameter dome

Acetyl body

9.2" diameter x 3.5" (234 x 89 mm)

Weighs 2.2 lb (998 g)


In the Box

Dome port

Dome shade # 5510.04

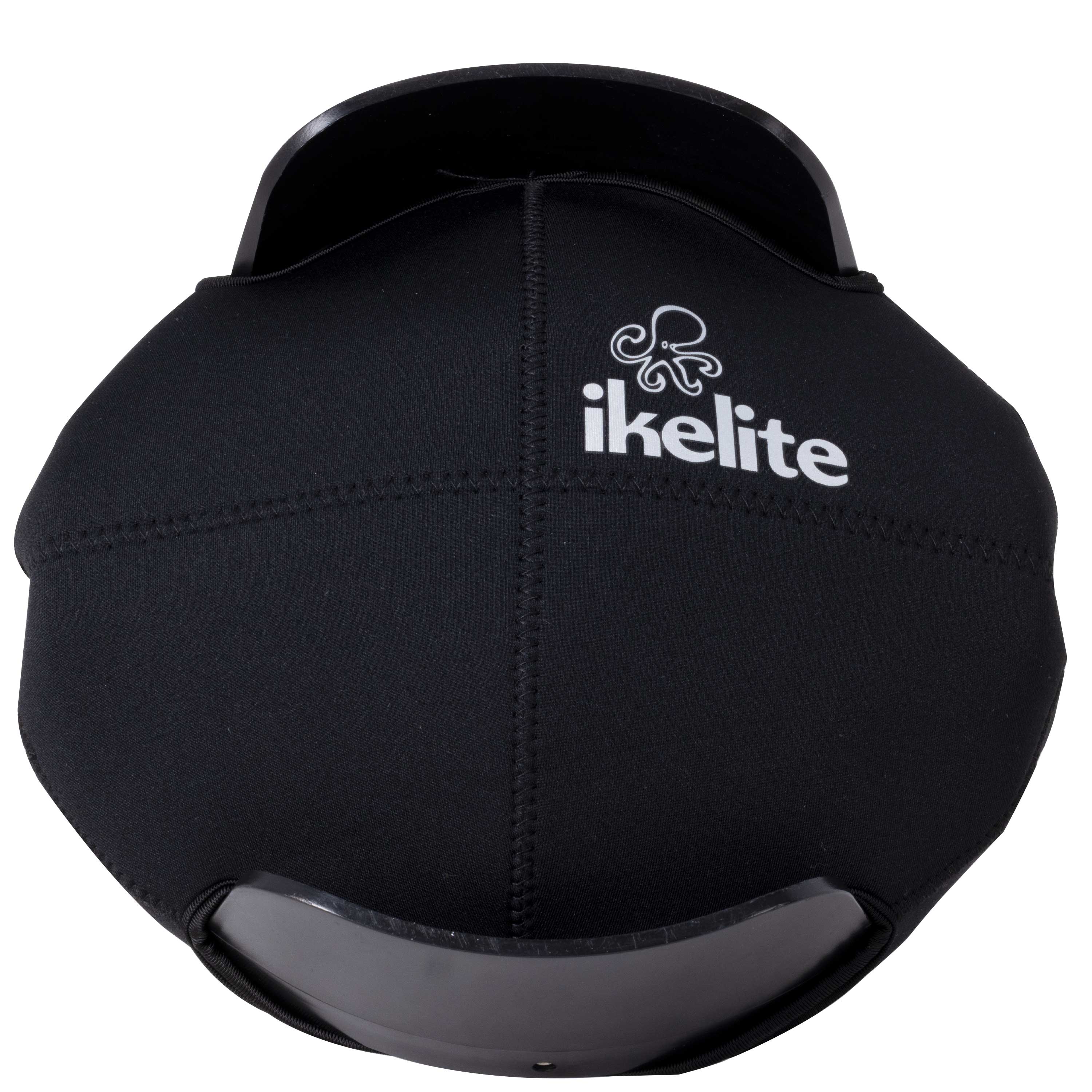

Neoprene front cover # 0200.84

Securing thumbscrews (set of 3) # 9249.7



Instruction Manual

Port Chart for DL Port System
