DC4 6 Inch Dome for Compact Housings

Product # 6404

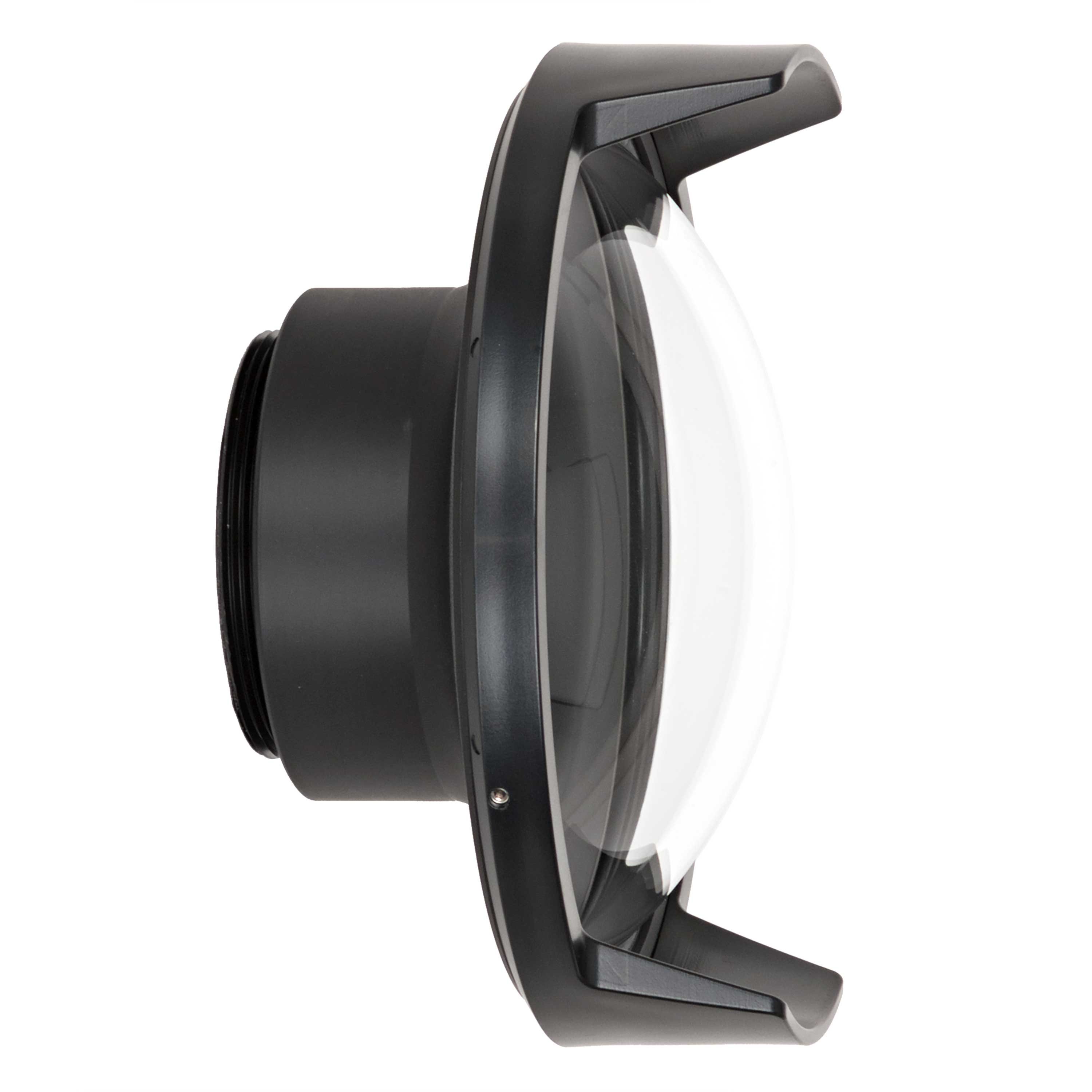

  • DC2 6 Inch Dome for Compact Housings

DC4 6 Inch Dome for Compact Housings

Product # 6404

* Shipping only available within the United States. Outside of the US, please visit the Stores section to find and contact your local Ikelite Dealer. Prices are listed in USD and do not include taxes, duties, or currency conversion fees.

About this Product

Want to shoot split shots (half-in, half-out of the water) with your compact digital system? Wet lenses will increase your angle of view but create a difficult double water line when used at the surface. The answer is a 6" diameter dry dome which lengthens and smoothes the waterline yet remains compact and lightweight for travel.

Underwater, the dry dome increases your angle of coverage significantly compared to a flat port. The dome exhibits much less edge distortion than an external wet wide angle lens.

Wide angle and zoom

Underwater, the dome corrects for refraction to provide the full wide field of view. That's substantially wider than a flat port, which magnifies the image 1.33x and reduces the field of view. Approximately 3/4 of the camera's zoom range is usable with the dome installed.

Sony RX100 VI Underwater Photo by John Brigham

ISO 100 • f/9 • 1/125 • 24mm equivalent • DC3 6" Dome Port with Sony Cyber-shot RX100 VI

Over-unders

At the surface, the large dry dome gives you greater control to get a clean, smooth water line when shooting split shots (half-in, half-out of the water). This type of shot can be impossible to get with a flat port, and extremely difficult with a wet lens or dome where you're fighting double water lines.

Learn more about how to shoot split shots...

Sony RX100 VI Underwater Photo by John Brigham

ISO 100 • f/9 • 1/125 • 24mm equivalent • DC3 6" Dome Port with Sony Cyber-shot RX100 VI

Ease of use

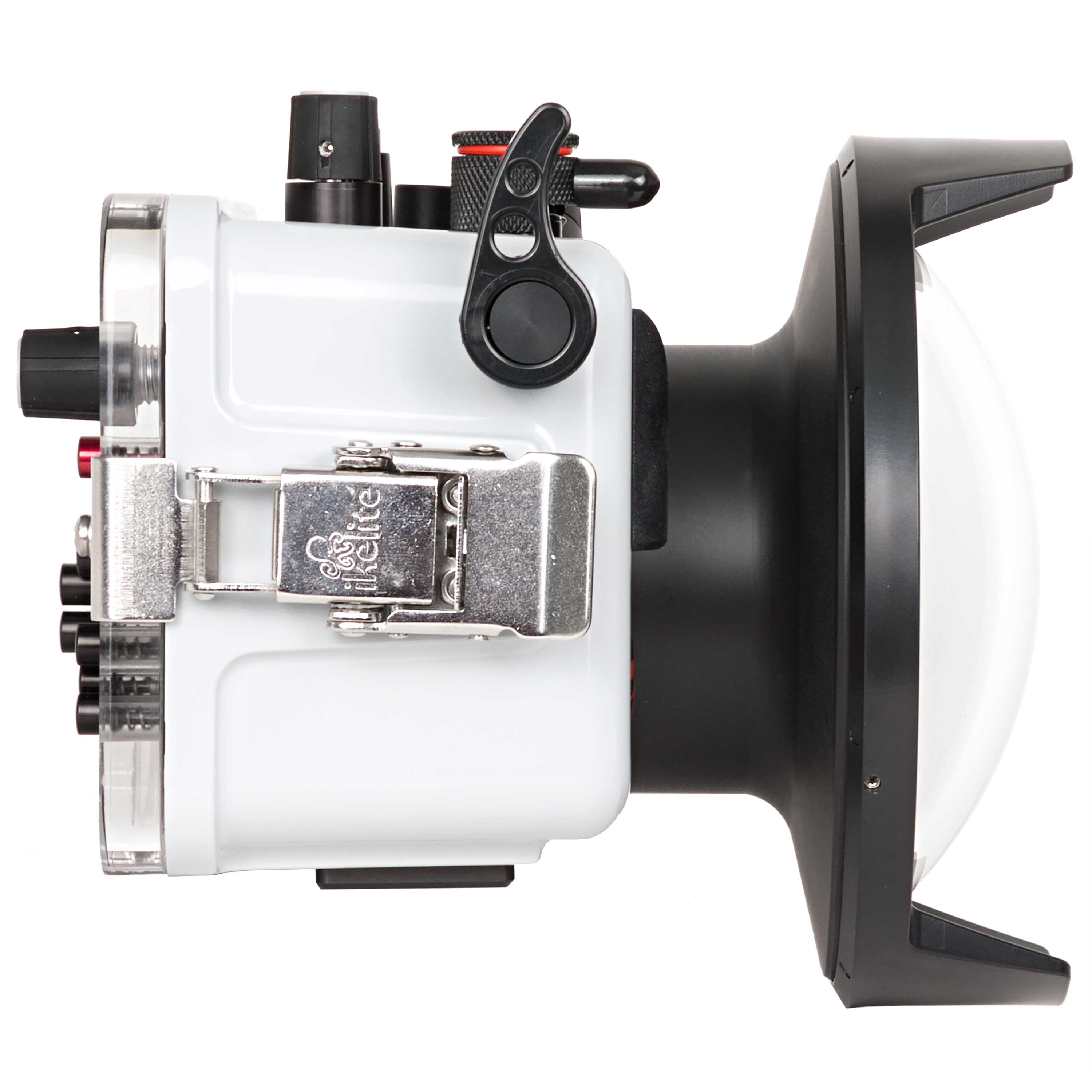

The dome replaces the standard port on the housing. Simply unthread the standard flat port and thread in the DC4 Dome unit. We recommend a rubber strap wrench commonly available at your local hardware store or as product # 0945.01 (not included). The included dome shade reduces reflections, protects the dome, and allows you to set the housing down on its face for easy assembly and disassembly.

Sony RX100 VI Underwater Photo by John Brigham

ISO 100 • f/22 • 1/125 • 60mm equivalent • DC3 6" Dome Port with Sony Cyber-shot RX100 VI



Compatibility

  • Ikelite Action Housing for Canon PowerShot G7X # 6245.07
  • Ikelite Action Housing for Canon PowerShot G7X Mark II # 6245.08
  • Ikelite Housing for Canon PowerShot G7X Mark II # 6146.08
  • Ikelite Housing for Canon PowerShot G1X Mark III # 6146.18
  • Ikelite Housing for Olympus Stylus 1s # 6139.51
  • Ikelite Housing for Panasonic Lumix LX10 # 6171.01
  • Ikelite Action Housing for Sony Cyber-shot RX100 I, RX100 II # 6215.02
  • Ikelite Action Housing for Sony Cyber-shot RX100 III, RX100 IV # 6215.04



Specifications

Acetyl body with acrylic dome

5.75" diameter x 3.75" (146 x 95 mm) length including shade

11.2 oz (317 g)



In the Box

Dome Port

Dome Shade # 5516.05 (installed)

O-ring # 0119.2 (installed)

Neoprene cover # 0200.1

Silicone lubricant 1cc tube



Documentation

Instruction Manual

DC Dome Port Compatibility Chart
