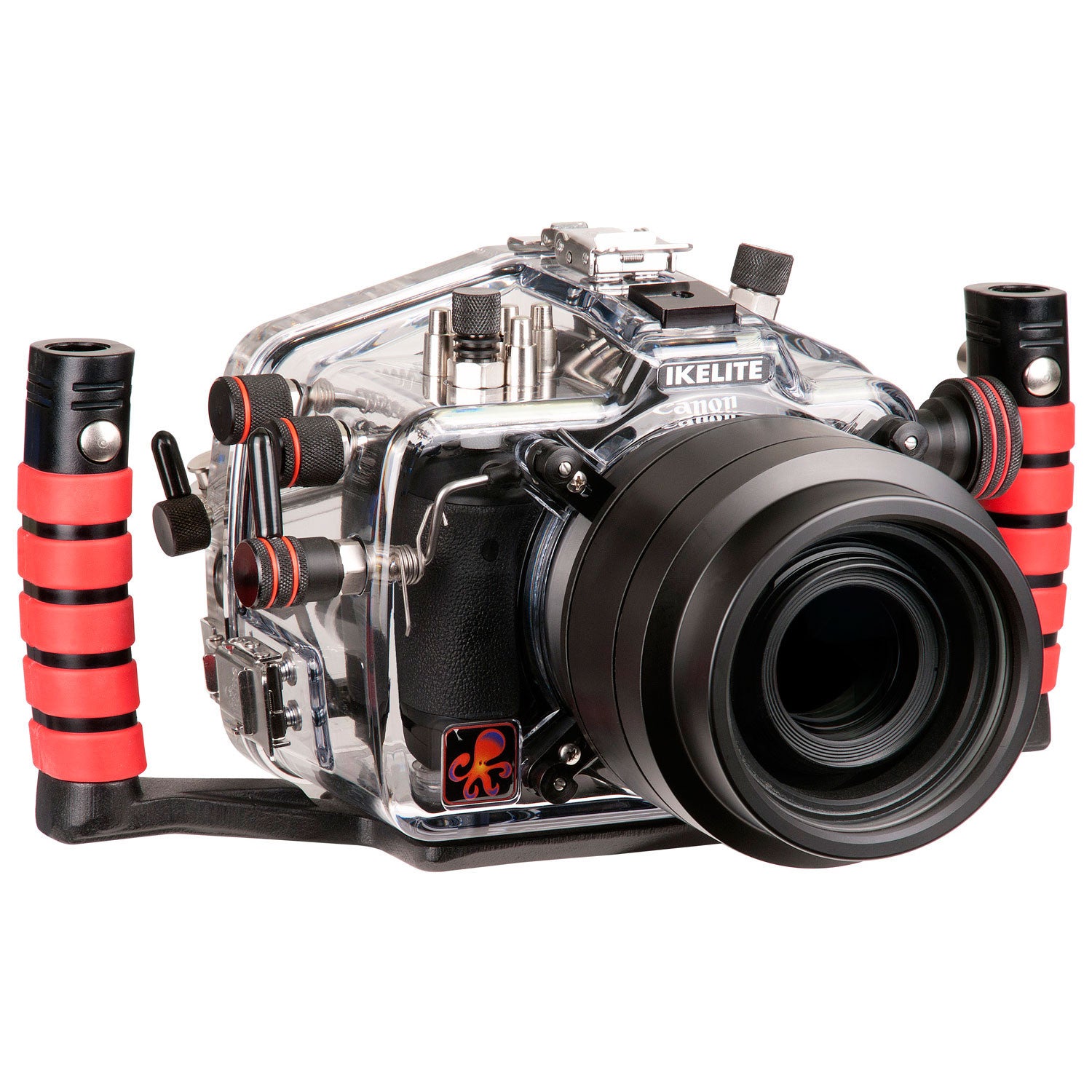

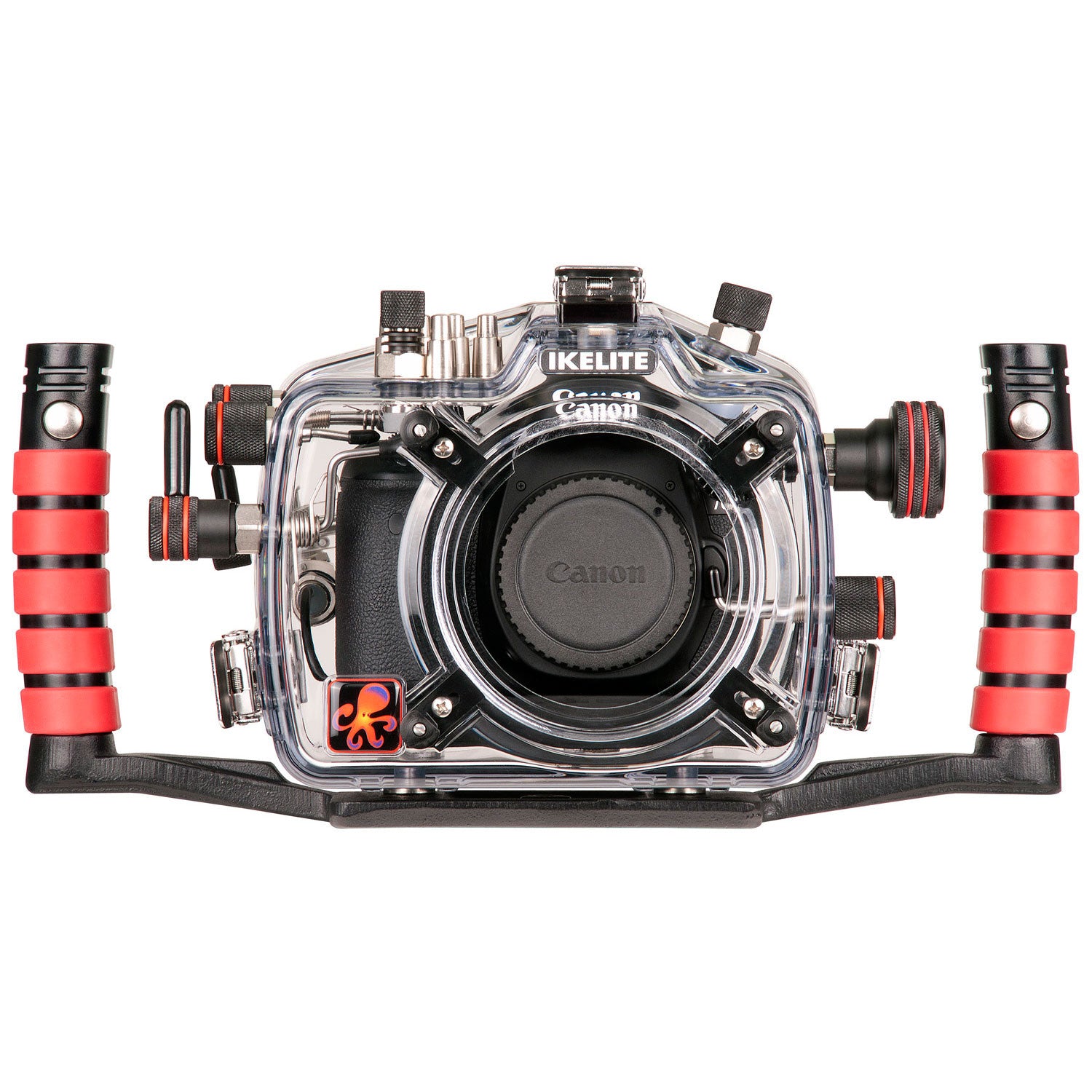

200FL Underwater TTL Housing for Canon EOS 70D DSLR Camera
This housing has been replaced with the 200DL Underwater Housing for Canon EOS 70D DSLR Cameras featuring the DL port system and a variety of other updated features. The new housing may be converted for use with legacy Four Lock (FL) system ports. See the housing webpage for more details. The housing # 6870.70 is out of stock and permanently out of production.
A compatible Four Lock (FL) lens port is required for waterproof operation. Lens port sold separately.
See underwater photos taken with the Canon EOS 70D
Other housings simply waterproof your camera. An Ikelite TTL housing improves your photos. TTL or "Through-The-Lens" flash metering means the camera controls flash duration to properly expose an image. Our built-in proprietary circuitry tells your camera that a TTL external flash is attached, allowing the camera to adjust exposure more accurately than with slave TTL strobes.
Fiber optic slave flash units require the camera's flash to fire every time. This creates a shutter lag as you wait for the camera's flash to recycle in between shots, drains your camera's battery life, and builds up heat inside of the housing. Ikelite electronics translate direct electrical impulses from your camera, triggering your strobe and precisely adjusting its power without the need to fire the camera's flash. This eliminates the slave TTL strobe issues of signal interference, inconsistent exposure due to weak fiber optic transmission and false triggering caused by light rays bouncing off the water's surface or your buddy's flash going off.

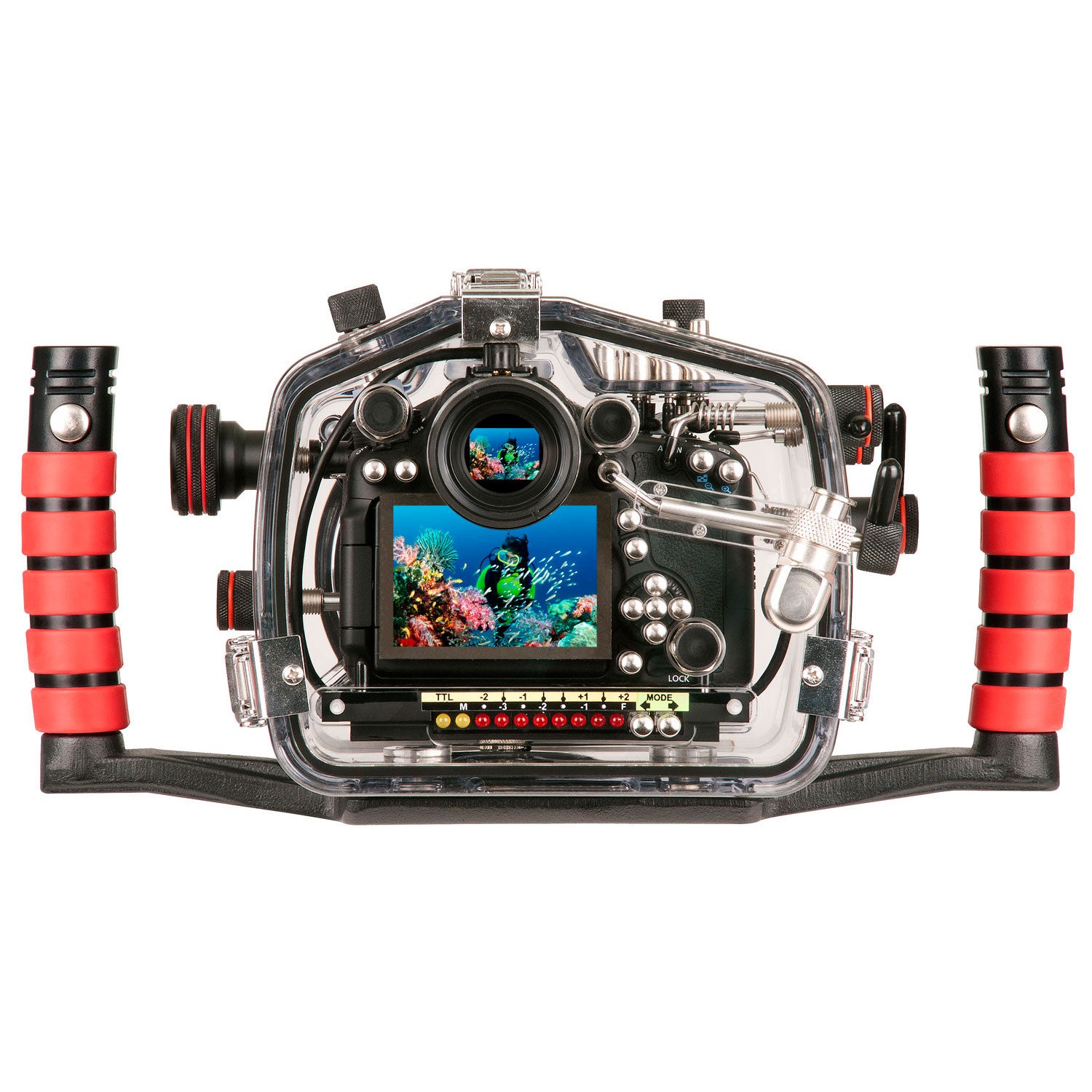

Exposure adjustments directly through the back of the housing put the perfect shot within reach every time. Tweak your TTL exposure or take total manual control without taking your hand off of your housing. Controls on the back of the housing acts as a remote control for compatible Ikelite DS-series strobes. Access plus/minus exposure compensation in TTL mode, plus manual power settings in half-stop increments.
Lens Port System
This housing features our legacy Four Lock (FL) port system. Lens ports can be removed and replaced quickly and easily. This housing accepts a variety of ports to accommodate zoom, macro, and wide angle lenses. Lens port sold separately.
An over-sized knob smoothly engages our unique system of universal zoom gears. We provide two zoom sets with each housing, one for use with most popular larger diameter zoom lenses and a second designed for use with smaller diameter zoom lenses. Both sets are lightweight and easy to install with no modification to the lens required. A variety of dome and flat ports attach with four locking latches for maximum security and quick changes between dives.
This housing includes a balanced aluminum tray with our signature quick release handles for easy attachment and removal of external lighting. An aluminum 1/4-20 threaded top mount provides an additional attachment point for lightweight accessories.
Special polycarbonate blends allow us to create an extremely strong yet clear and lightweight enclosure. We believe there's no substitute for inspecting the actual o-ring seal once your housing is closed. Our signature clear construction lets you see that the housing is watertight and dry before you enter the water, and provides full view of the camera while you're diving. Polycarbonate is fundamentally corrosion-resistant for easy maintenance year after year.
Like every Ikelite product, our housings are designed, built, and tested in the USA. We use locally sourced, top-grade materials. Our housings are built by hand and individually tested for fit, function and waterproof integrity. The average assembly technician is a certified scuba diver and has over 16 years of experience building Ikelite products. We back our products with over 50 years of experience and the most accessible and responsive customer service staff in the dive industry.
In the Box
200FL Underwater Housing
Rear o-ring # 0132.61
Base with Dual Handles # 4077.68
Port Hole Cover # 0200.91
Waterproof Bulkhead Cap # 9104.5
Universal Zoom Set for Lenses up to 2.8" Diameter # 5509.27
Universal Zoom Set for Lenses 2.8 to 3" Diameter # 5509.28
Control + push button tip assortment # 9249
Silicone Lubricant 1cc tube
1 Year Limited Warranty
200' (60 m) depth rating
All important camera functions are accessible
Controls are not provided for Dioptric Adjustment Knob, Flash button, Multi-Function Lock Switch, Depth-of-Field Preview Button
Slightly negative buoyancy in fresh water
5.5 lb (2.5 kg)
10 x 6.9 x 6.5 in (25.4 x 17.5 x 16.5 cm)
