SKU: 69746

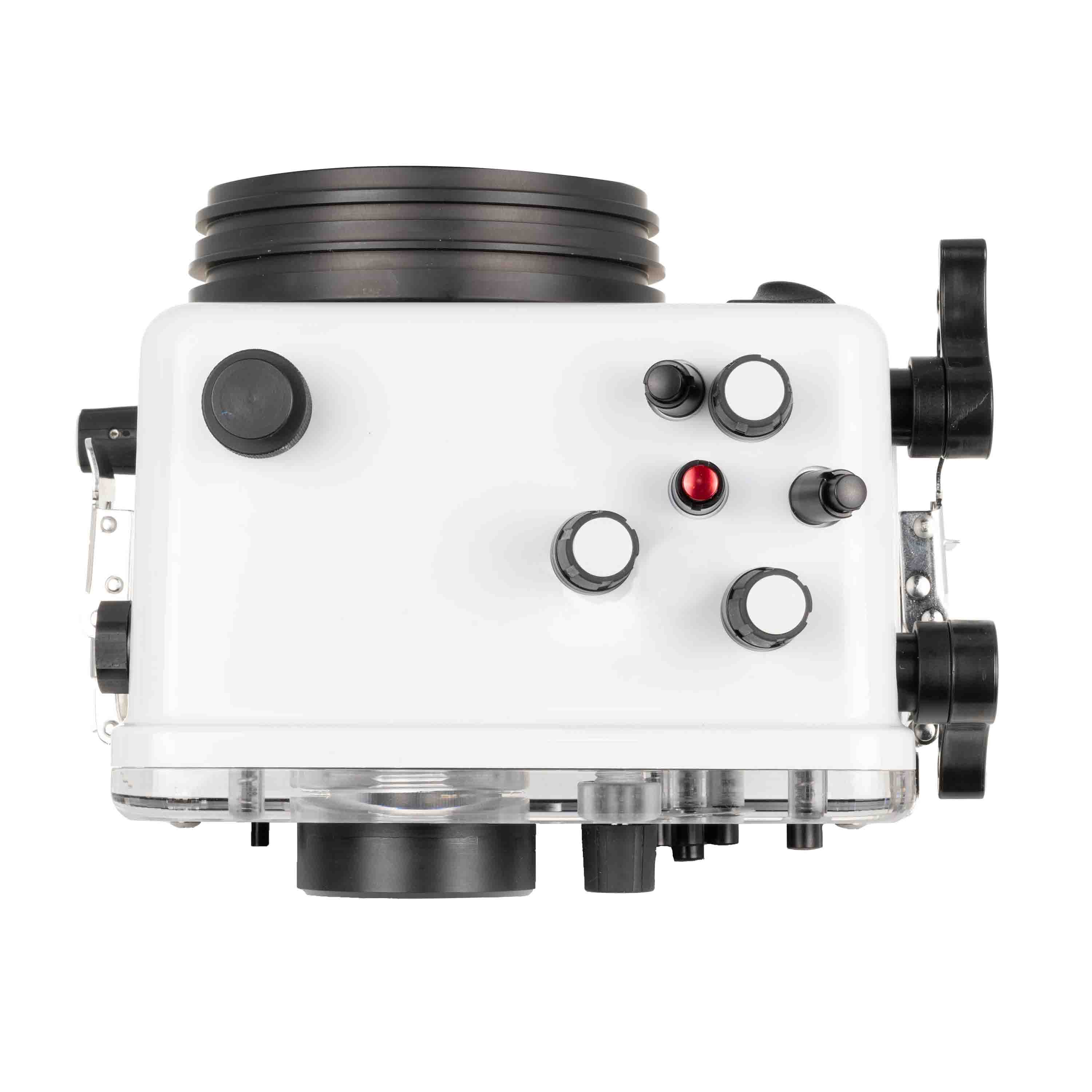

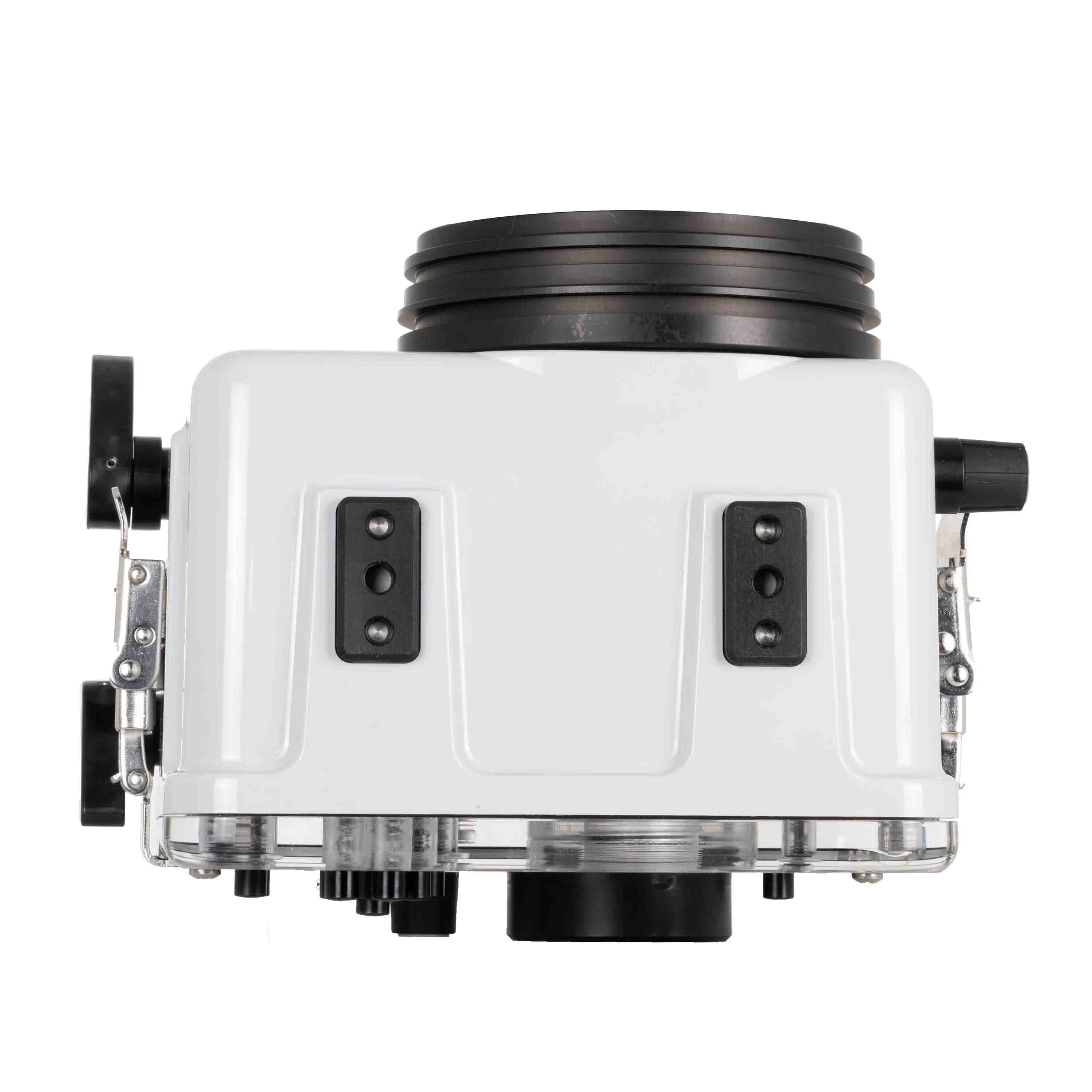

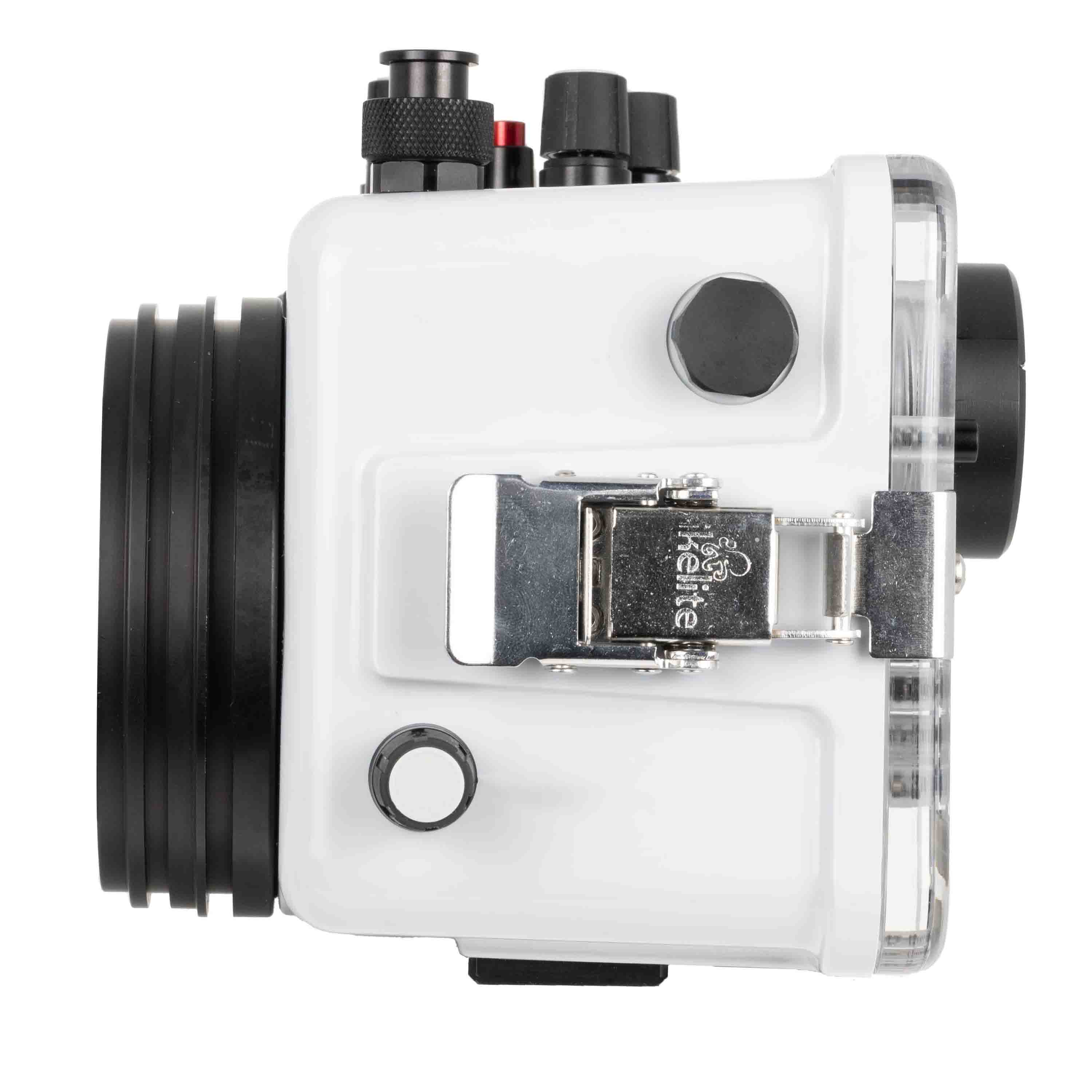

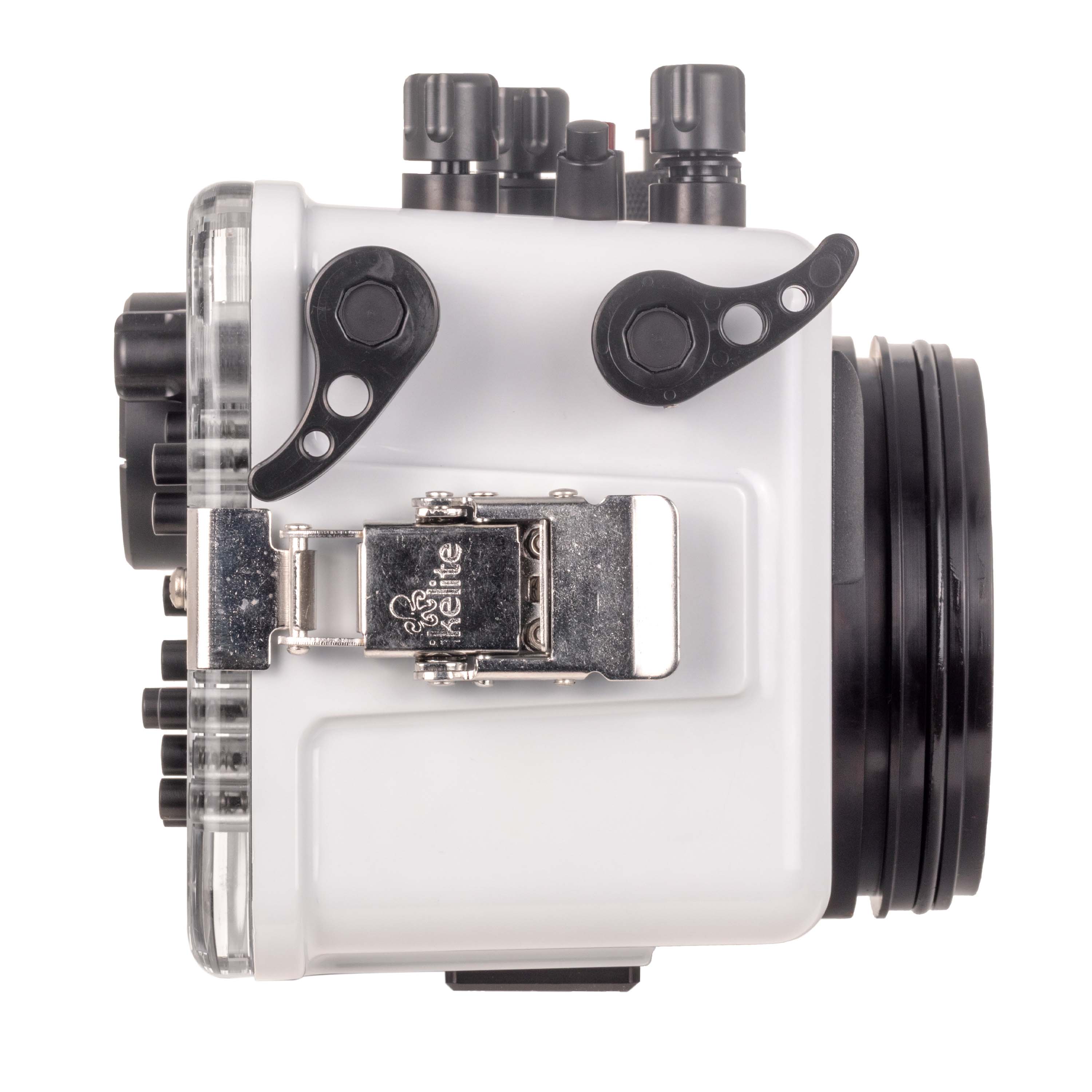

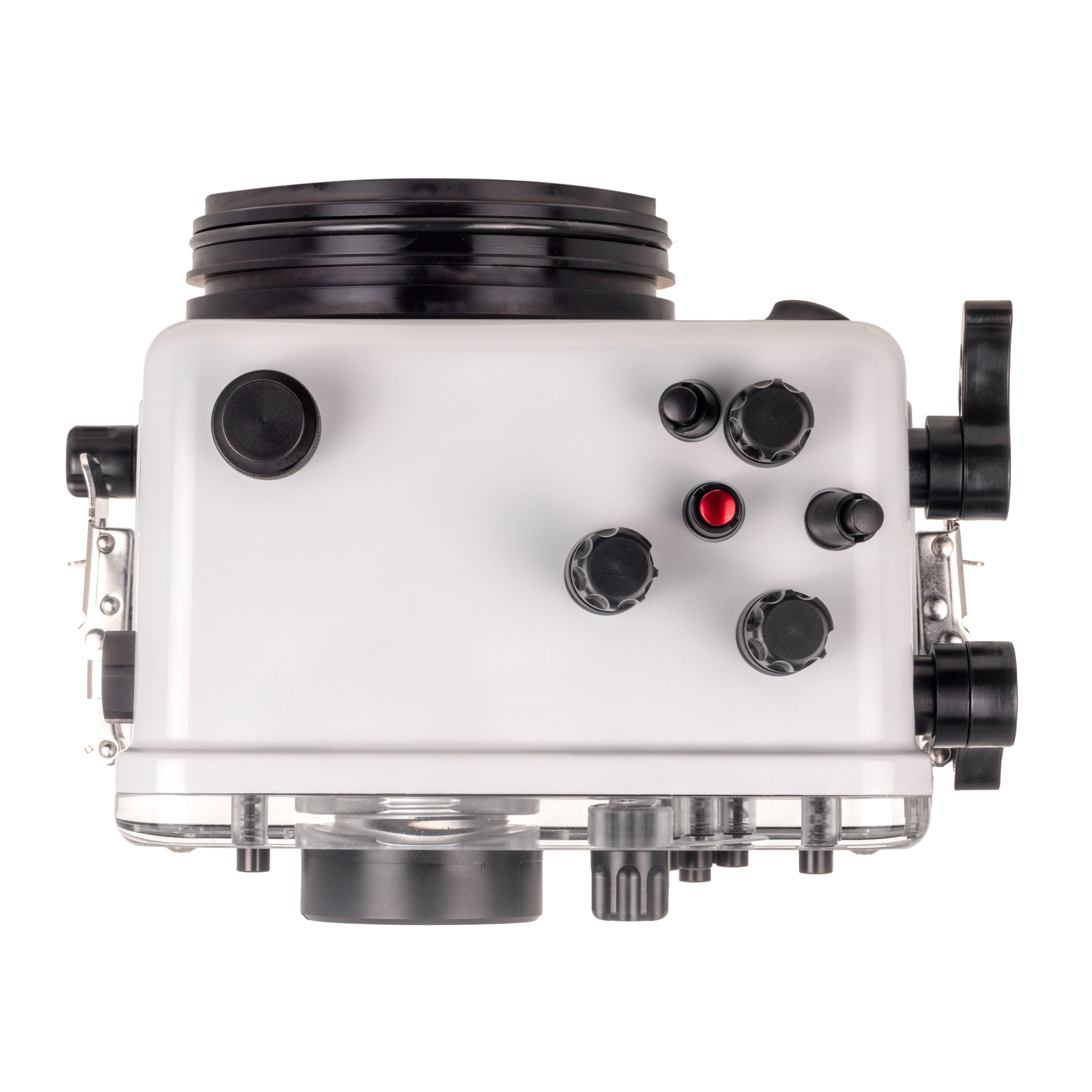

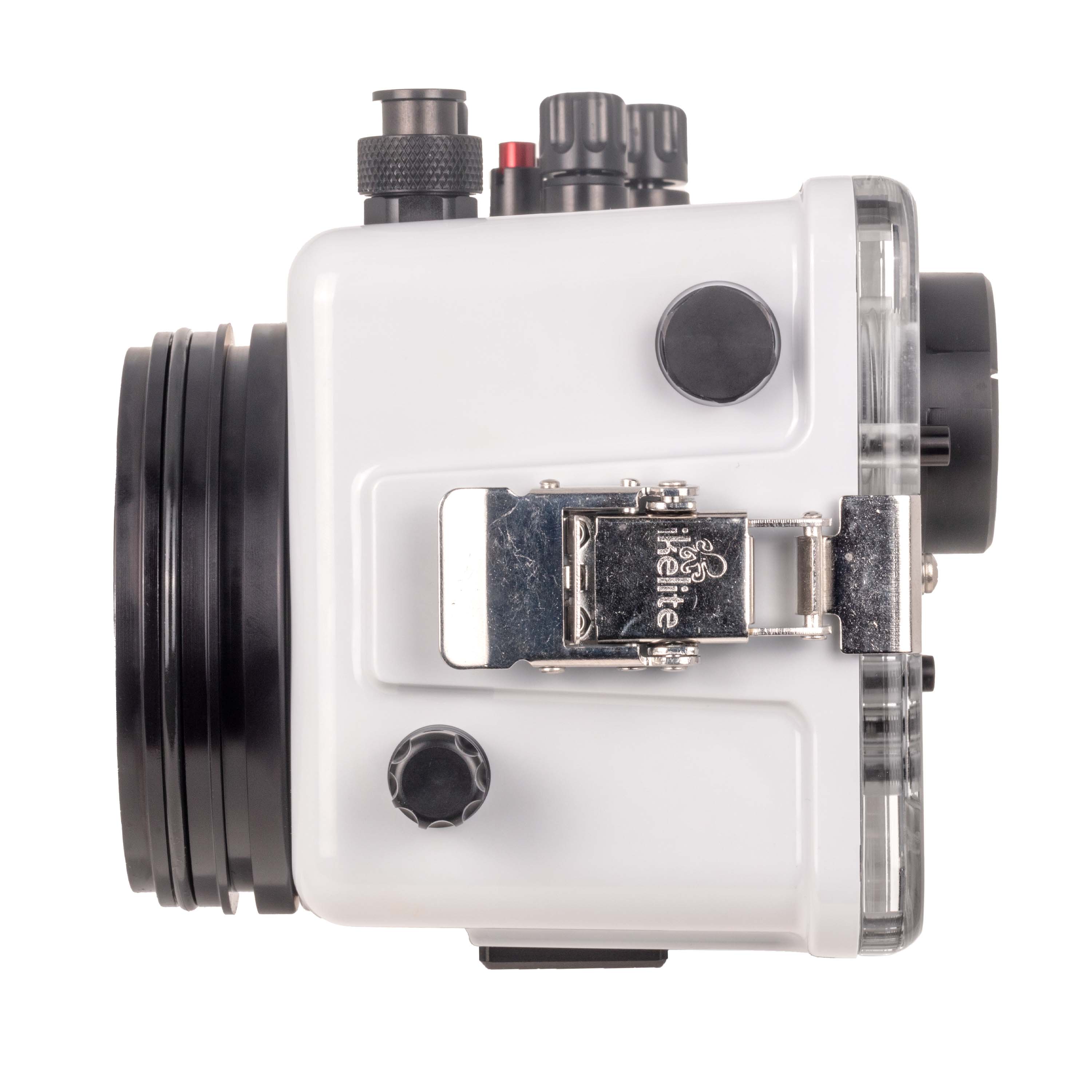

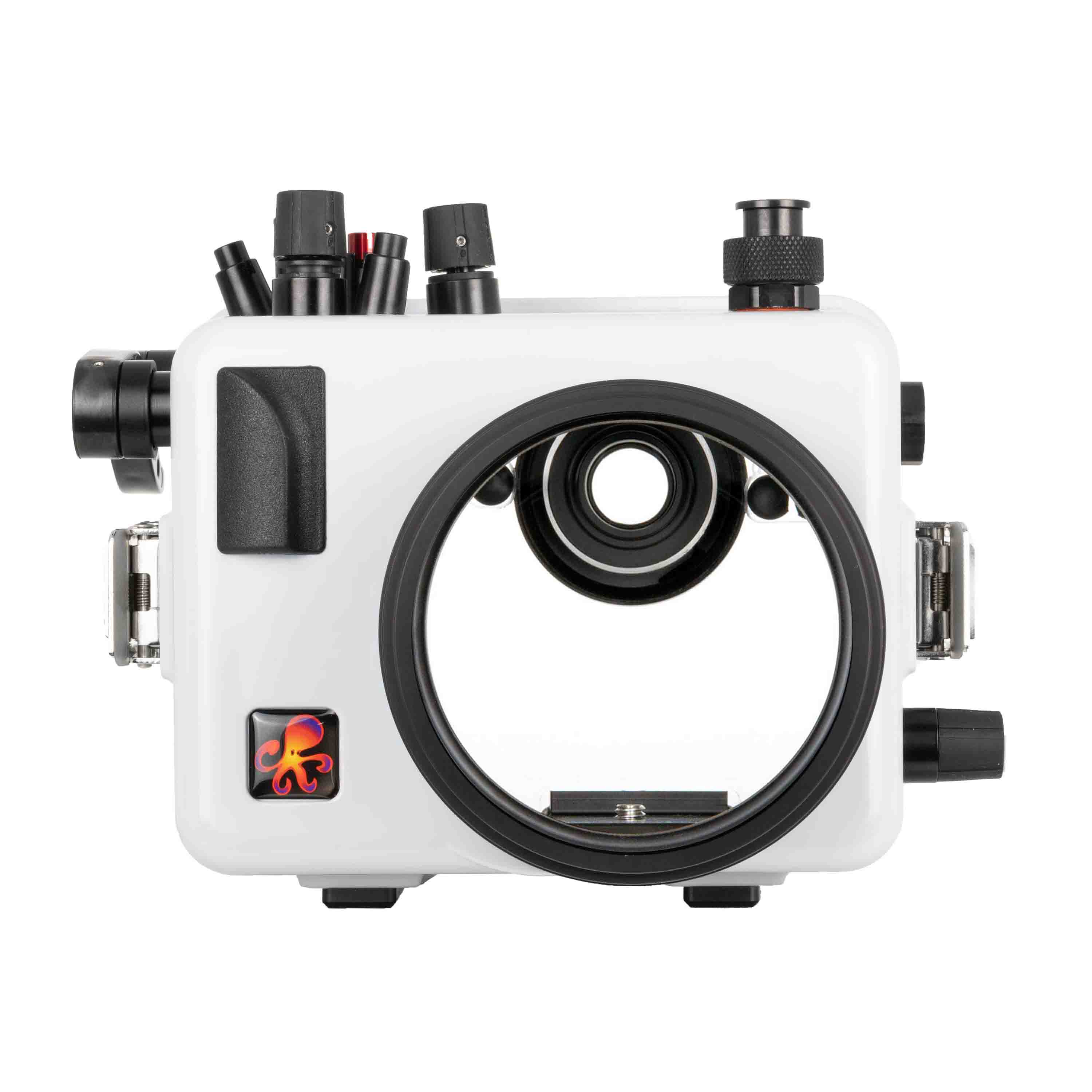

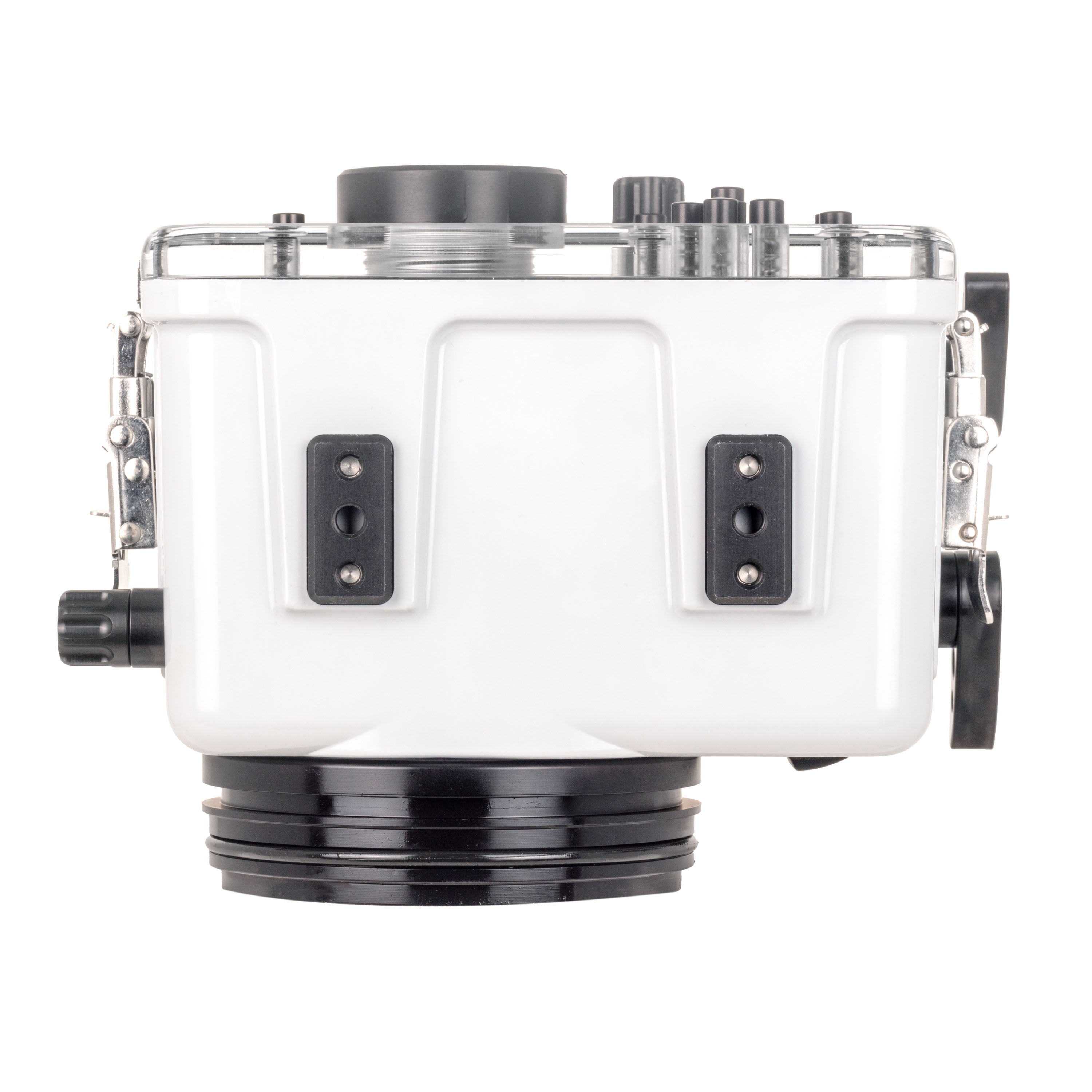

200DLM Underwater Housing for Canon EOS R7

Sale price$ 1,195.00
Ikelite underwater housing for mirrorless compact cameras

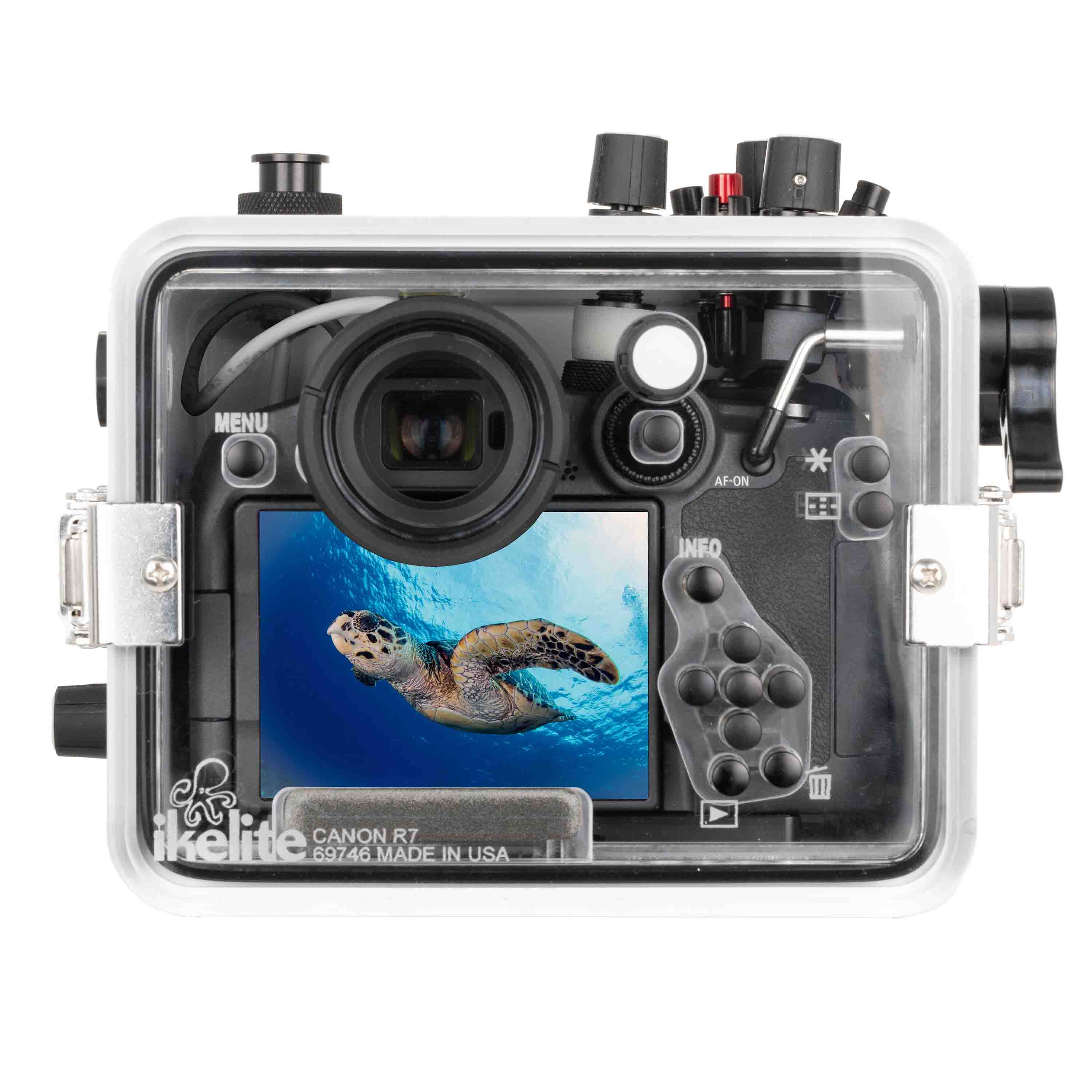

100% Clear Back

See that your camera is dry inside


Incredible performance in a compact package

We are delighted by the level of performance that Canon provides in this small form factor. No other camera manufacturer comes close to the imaging quality or ergonomics of the R7 camera combined with this compact underwater housing.

Released in 2022, the Canon EOS R7 features a 33 megapixel full frame APS-C sensor, 4K video up to 60p (with crop), and in-body image stabilization up to 7 stops. The R7 incorporates Canon’s advanced AF tracking system and is capable of continuous shooting up to 30 frames per second (fps). A battery life rating of 660 shots per charge when using the camera’s rear LCD is perfectly adequate for a full day of diving.

The 200DLM underwater housing is designed for the most streamlined form factor possible and provides ergonomic access to all important camera functions at depths up to 200 feet (60 meters). The 200DLM housing is approximately half the size and weight of housings for full frame cameras like the Sony a7 IV or Canon EOS R5. A built-in Ikelite bulkhead and manual flash hotshoe allow attachment of an underwater strobe out of the box plus expandability to TTL exposure with the optional DL5 DS Link TTL Converter.

Add an optional Vacuum Kit with 1/2” valve to test your housing’s waterproof seals prior to entering the water.

Choose the correct port components on the lens you will be shooting. A compatible lens port is required for waterproof operation (sold separately)

View port chart

Controls are provided for everything except Diopter Adjustment Slider, Multi-Controller (can be pressed straight in), Depth-of-Field Preview Button, Focus Mode Switch

Strobe Connector

Ikelite Bulkhead with Manual Hotshoe

Port Mount

DLM (Dry Lock Micro)

Accessory Port

1/2-20 Thread

Depth Rating

200 feet (60 meters)


3 lb


7.5 x 5.9 x 6 in (191 x 150 x 152 mm)
