MADE IN THE USA
200DL Underwater Housing for Panasonic Lumix S1 II, S1R II & S1 IIE Mirrorless Digital Cameras
A full featured and durable waterproof housing for Panasonic Lumix DC-S1M2 and DC-S1RM2, and DC-S1M2ES mirrorless digital cameras. Suitable for scuba, snorkel, surf, pool, and any application in or around the water.

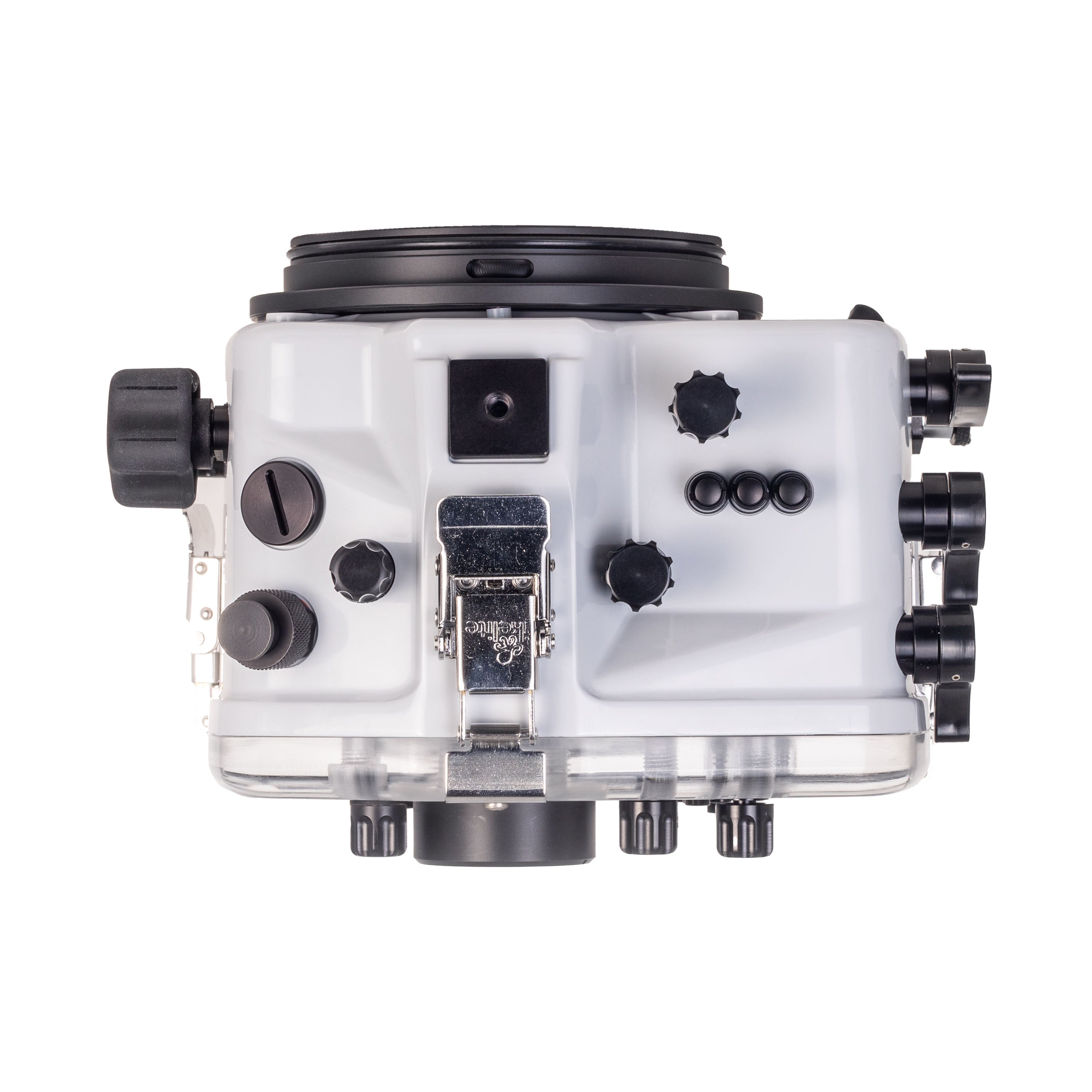

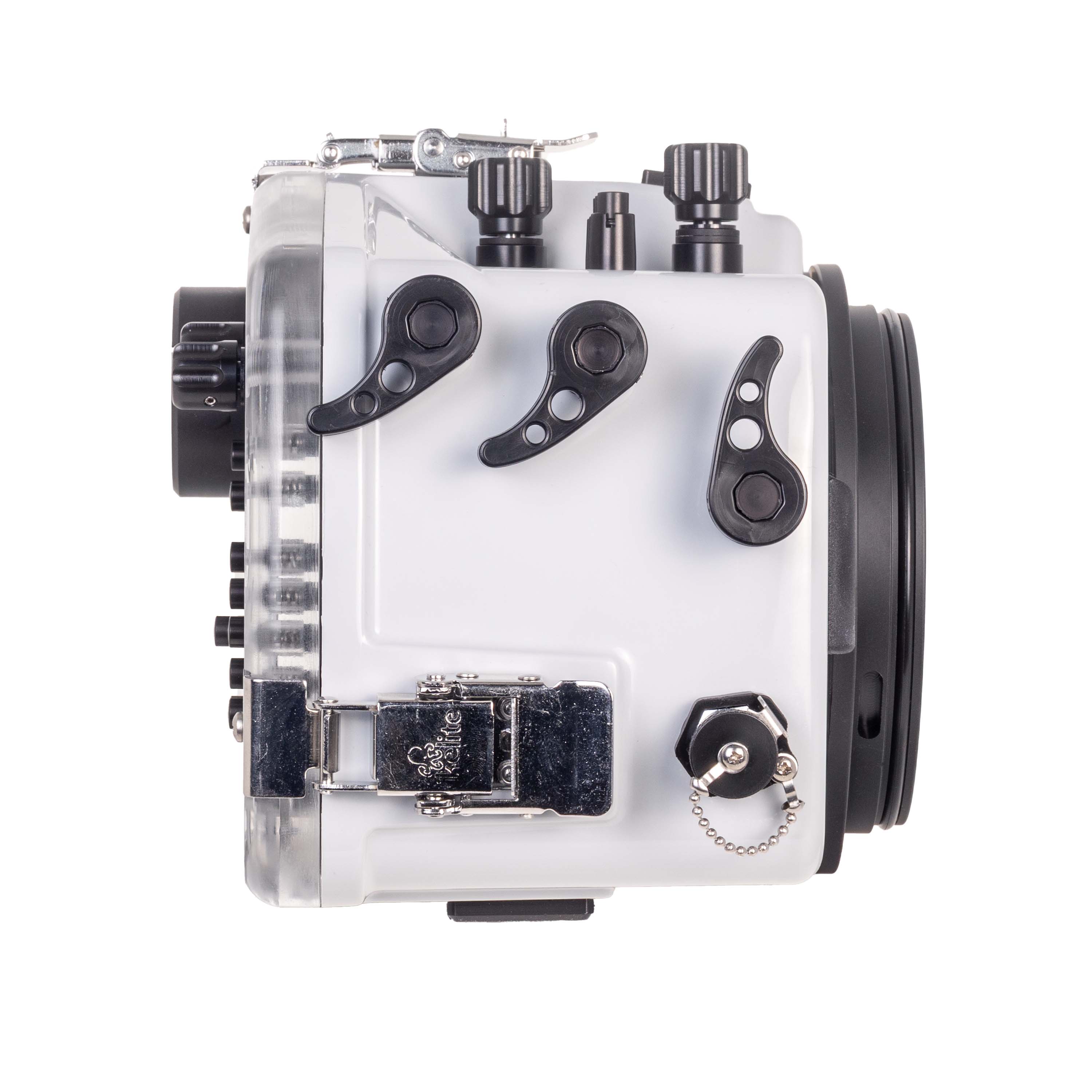

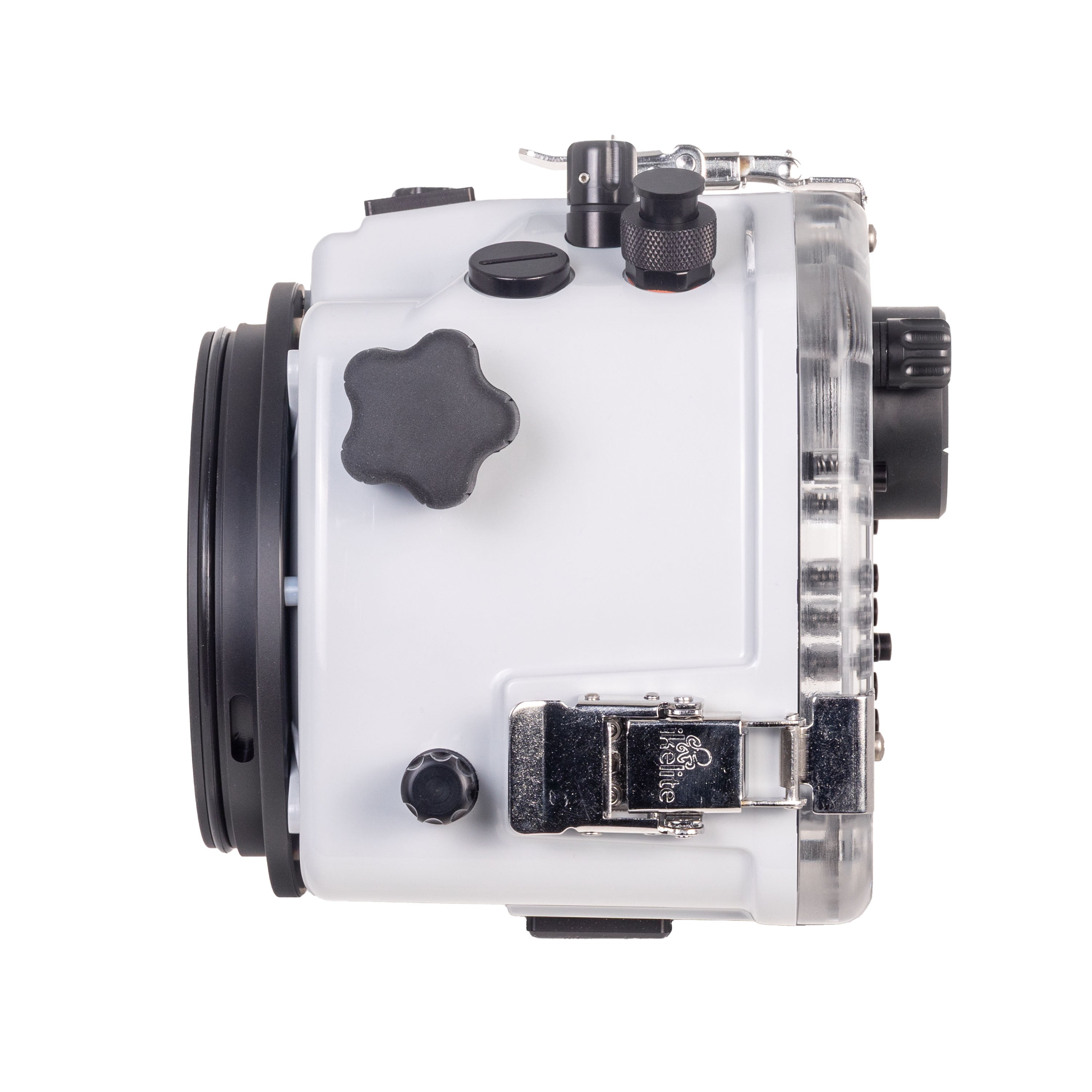

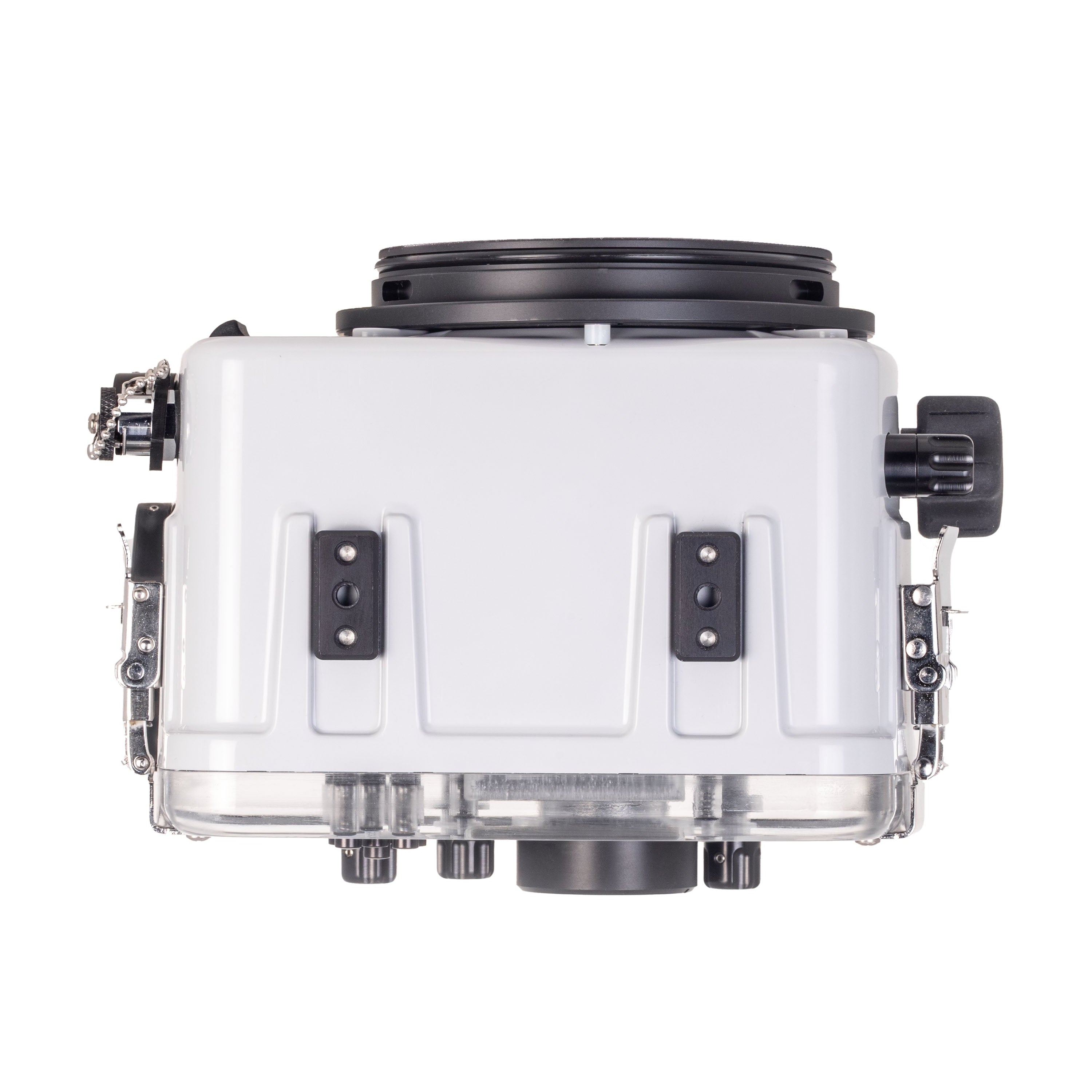

200DL Underwater Housing
This is a full featured and durable waterproof housing for Panasonic S1 Mark II cameras. Suitable for scuba, snorkel, surf, pool, and any application in or around the water.
The housing provides full creative control over the camera including the rear joystick and control dials. Our custom ABS-PC blend is lighter than aluminum yet strong enough for almost anything you want to throw at it.
A variety of lenses can be used with our series of optical grade acrylic domes and glass flat ports. Zoom gears are available for most popular lenses and driven by a large, ergonomic soft-touch lobed control on the left side of the housing.
The Ultimate Assurance
Our housings uniquely allow you to see your camera inside, making it easier to adapt to using it inside of a housing. Use the vacuum leak detection system allows you to check the housing prior to entering the water.
Every housing is built in the USA, checked with a camera, and water pressure tested to 200 feet (60 meters) before it makes its way from us to you.
Advice & Support
Browse our Photo School for hundreds of articles and videos on setting up gear and shooting underwater, plus inspiration for your next shoot. We recommend starting with Underwater Photography 101. When you have questions - as we all do - it's easy to connect with our legendary support staff by phone or email.
Compatibility
This housing is only suitable for Mark II cameras. Prior generation S1 (Mark I) series cameras cannot be used in or adapted to this housing.
"DL" LENS PORT REQUIRED (Sold Separately)
A compatible lens port is required for waterproof operation (sold separately). Choose the correct port components on the lens you will be shooting.
Made in USA
Take control of Panasonic's powerful line of video-centric micro four-thirds cameras in a lightweight housing
No other manufacturer makes professional functionality so accessible. Our housings are designed from the ground up to provide full camera control and connection for external strobe lighting out of the box. Advanced features including TTL lighting exposure and enhanced magnifying viewfinders are available as needed.
Our DL-series lens ports are optimized to be the lightest on the market with superb image quality. The materials chosen for our housings and lens ports are chosen to maximize durability and corrosion resistance while minimizing travel weight and cost.
DL (Dry Lock)
M16 Thread
200 feet (60 meters)
9.2 x 7.2 x 6.5" (234 x 183 x 165 mm)
0132.45
100% Clear Back
Have questions?
We're here for you for every step along the way. Email ikelite@ikelite.com for help on gear selection, assembly, camera settings, and photo advice. We can even help you decide where to dive!
Instruction manualPre-Dive Checks
There is no greater assurance than being able to see your camera and o-ring seal through the back of the housing. Our signature open-groove design suspends the rear o-ring in a natural position that is easier to maintain and more reliable than forcing the o-ring into a channel. Once the housing is closed you can see the o-ring form a solid, waterproof seal.
We recommend using a pump with gauge to pull a vacuum on the housing and check for leaks prior to entering the water.
Construction
Our specially formulated ABS-PC blend housing is highly durable yet significantly lighter than aluminum. The light color keeps your camera cooler when shooting in warm, sunny environments.
Lens Support
Ikelite lens ports are the lightest on the market, yet robust and capable of standing up to rough surf.
We support a wide variety of lenses. Most popular zoom lenses and select focus rings can be engaged using simple gearing that puts adjustment right at your fingertips. Zoom and focus gears differ depending on which lens you are using.
Lens ports and zoom gears sold separately. Refer to the appropriate port chart for compatibility information.
Wi-Fi Transfer
Use the camera's built-in Wi-Fi feature to download photos to another device without removing the camera from the housing. The Wi-Fi feature is only usable above water within close proximity to the connected device.
Compatibility
Unless otherwise noted, this housing does not accommodate the use of add-on grips, battery grips, eyepieces, LCD covers, or other accessories.
Differences in lens and control placement prevent other camera models from being used in or adapted to this housing. We are not aware of any other models which may be used in or adapted to this housing.
In the Box
