200DL Underwater Housing for Nikon D500 DSLR Cameras

Product # 71005
  • 200DL Underwater Housing for Nikon D500 DSLR Cameras

200DL Underwater Housing for Nikon D500 DSLR Cameras

Product # 71005

* Shipping only available within the United States. Outside of the US, please visit the Stores section to find and contact your local Ikelite Dealer. Prices are listed in USD and do not include taxes, duties, or currency conversion fees.

About this Product

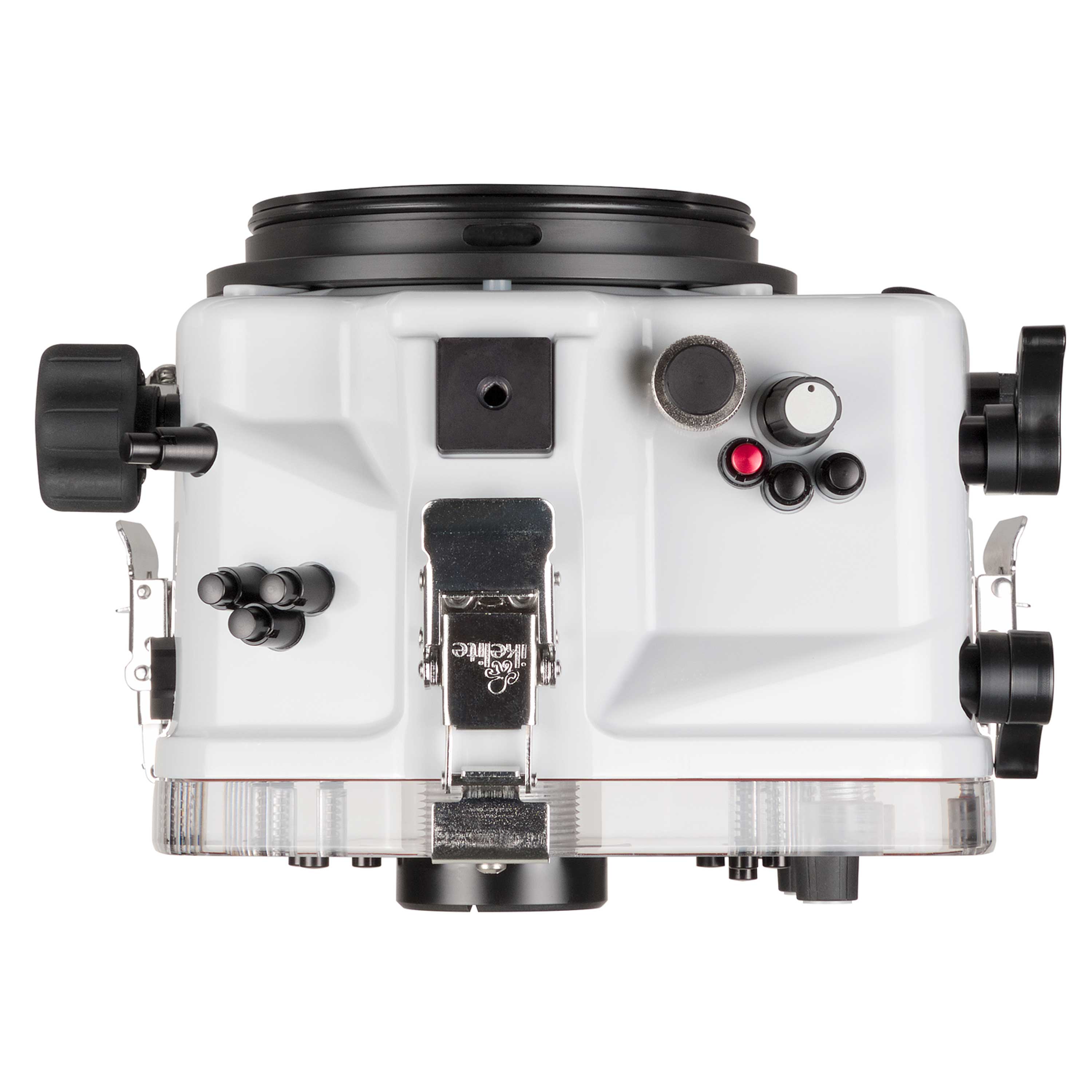

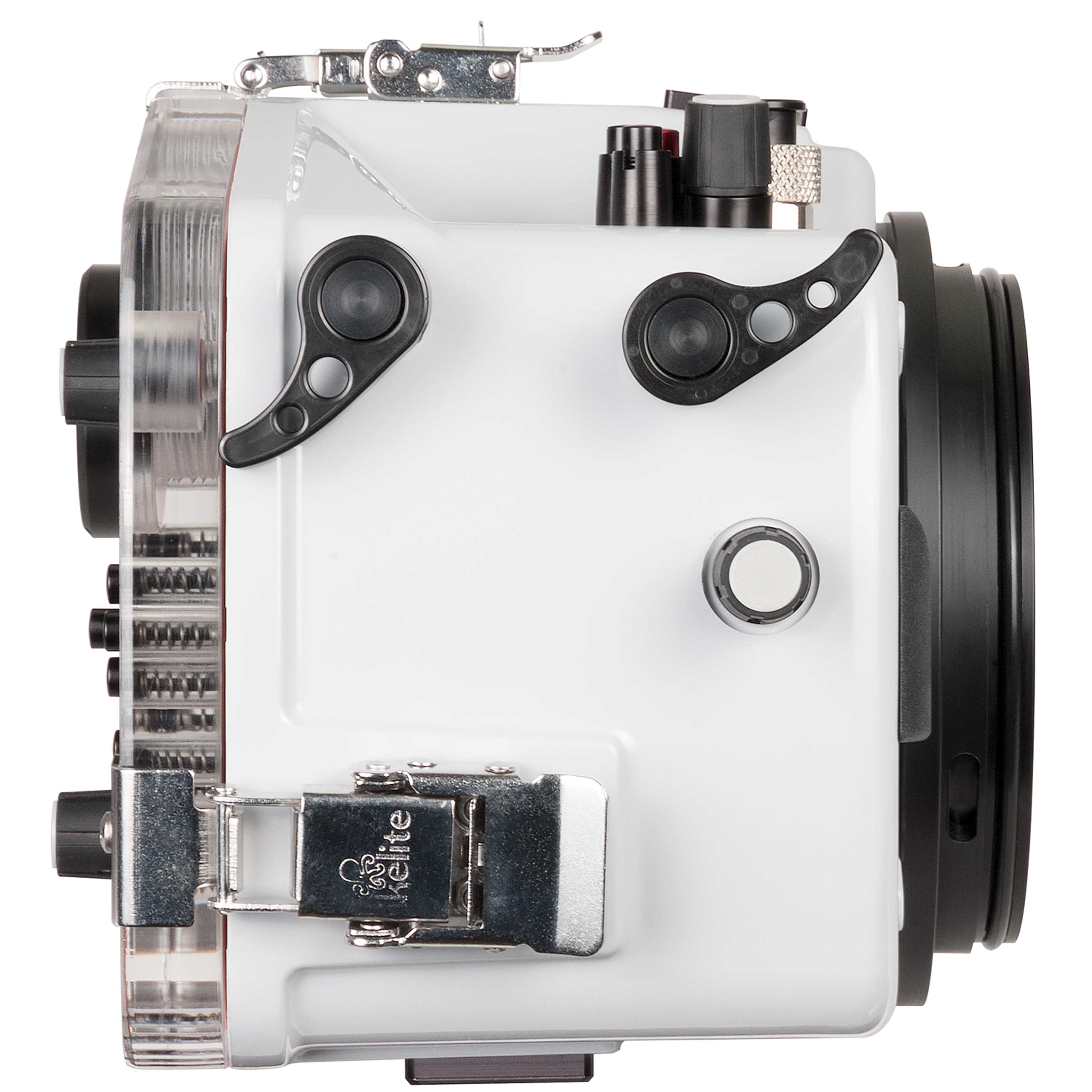

A full featured and durable waterproof housing for Nikon D500 DSLR cameras. Suitable for scuba, snorkel, surf, pool, and any application in or around the water.

See images taken with the Nikon D500 DSLR underwater...

This housing requires the addition of a compatible DL Lens Port for waterproof operation. Lens Port not included.

Features

200' (60m) depth rating

Housing back is interchangeable with optional lightweight 50' (15m) back (sold separately); the 50' back is lighter weight for travel and perfect for snorkeling, surf, and pool work

Supremely functional for maximum creative control—access is provided for all important camera functions

The new Dry Lock (DL) Port System gives added security at the surface of the water and accommodates large diameter lenses

Extra-large, soft touch zoom knob; Zoom is accessible for many lenses using our unique universal zoom gear system

Vacuum valve included (pump sold separately)

Included Ikelite ICS-5 bulkhead connector with manual hotshoe for reliable electrical triggering of underwater strobes; Optional TTL accessories provides automatic exposure with compatible Ikelite DS strobes

Control symbols are laser etched into the back and will never fade or rub off

Quick install camera mount plate does not need to be removed for battery or memory card access

One spare 1/2-20 threaded accessory port locations on the front of the housing for the addition of optional accessories

Includes a balanced aluminum base with left-hand quick release handle; Right-hand handle sold separately

Signature open-groove design suspends the rear o-ring in a natural position that is easier to maintain and more reliable than forcing the o-ring into a channel

ABS-PC construction is fundamentally corrosion-resistant

Made in the USA; Individually inspected for fit and water pressure tested to depth

2 year limited warranty

TTL Exposure

Use the optional DL1 DS Link TTL Converter # 46054 for automatic TTL exposure with compatible Ikelite DS-model Strobes. Ikelite DS-model strobes may be used with this system without the TTL Hotshoe and Converter, but will not provide TTL exposure.

Non-Ikelite Strobes

SEA&SEA, INON, and Nikonos strobes with an electrical connection can be triggered in manual exposure modes using an electrical sync cord. Strobes without an electrical sync cord connection cannot be attached to this system unless slaved off of a hard-wired strobe.

Ikelite Non-Digital Strobes

Older non-digital strobes featuring an ICS-5 electrical sync cord bulkhead can be used with this system in manual exposure modes.

Fiber Optic

Fiber optic only strobes are not compatible with this installation. An external strobe must be connected by electrical sync cord.

Remote Triggering

Strobes with remote slave capabilities may be triggered off of a flash attached to the housing by electrical sync cord. Ikelite DS strobes support remote triggering using the Optical Slave Converter # 4405 or the Water Wizard system (manufactured and sold by Aquatica).

Controls

Shutter-release button

Power switch

Movie-record button

Sub-command dial

Exposure compensation (+/-) button

ISO button

MODE button

WB button

Metering button

BKT button

Lens release button

AF-ON button

Main command dial

Multi selector

Info button

Live view selector

Lv button

i button

Playback button

Trash button

MENU button

Key/? button

Magnify + button

Magnify - button

OK button

Fn2 button

Compatibility

This housing is only compatible with the Nikon D500 DSLR as shipped by the manufacturer. Unless otherwise noted, this housing does not accommodate the use of add-on grips, battery grips, eyepieces, LCD covers, or other accessories.

Differences in lens and control placement prevent other DSLR models from being used in this housing. We are not aware of any other models which may be used in or adapted to this particular housing.



Specifications

200' (60m) depth rating

Compatible with DL system lens ports

1/4-20 thread base mounts with 3.5" spacing

Near neutral buoyancy in fresh water

Actual buoyancy varies depending on choice of lens and port

5.1 lb (2.3 kg)

9.2 x 7.1 x 6.6" (234 x 180 x 168 mm)



In the Box

Housing

Rear o-ring # 0132.61 (installed)

Front o-ring # 0132.45 (installed)

Zoom Gear Retainer # 75900 (installed)

Port Hole Cover # 0200.92 (installed)

Waterproof Bulkhead Cap # 9104.7

Base with Left-Hand Quick Release Handle # 4077.67 (installed)

Tool for Zoom Gear Retainer # 0945.06

.050" Hex Key # 0945.11

1/16" Hex Key # 0945.16

Silicone Lubricant  # 0184.1



Optional Accessories

Spare Rear O-Ring # 0132.61  Carry a back-up in case original seal becomes damaged.

Spare Front O-Ring # 0132.45  Carry a back-up in case original seal becomes damaged.

Vacuum Pump with Gauge # 47011  Pressurize the housing to check for leaks prior to entering the water.

Right-Hand Quick Release Handle # 4077.02  Makes a double tray for easier handling and a second attachment point for strobes or lights.

Shutter Trigger Extension # 4077.93  Recommended if using the Right-Hand Quick Release Handle. Brings shutter and/or AF-ON lever out to handle for more comfortable use.

DL1 DS Link TTL Converter # 46054  Fast, accurate, automatic TTL strobe exposure when used together with compatible Ikelite DS strobes.

45º Magnified Viewfinder (Type 1) # 6891.1  Brighter, larger, and more ergonomic positioning when shooting under water. Rotates for landscape or portrait shots.

Adding an external strobe or video light enhances your photos' color and sharpness underwater. If you will be shooting below 45 ft (13m) or in an indoor pool, your photos will be predominantly blue-green without an artificial light source. Read more about strobe options



Documentation

Instruction Manual

DL Port Chart
