Modular 2.75-inch Lens Extension

MSRP $125
Product Number 5510.11

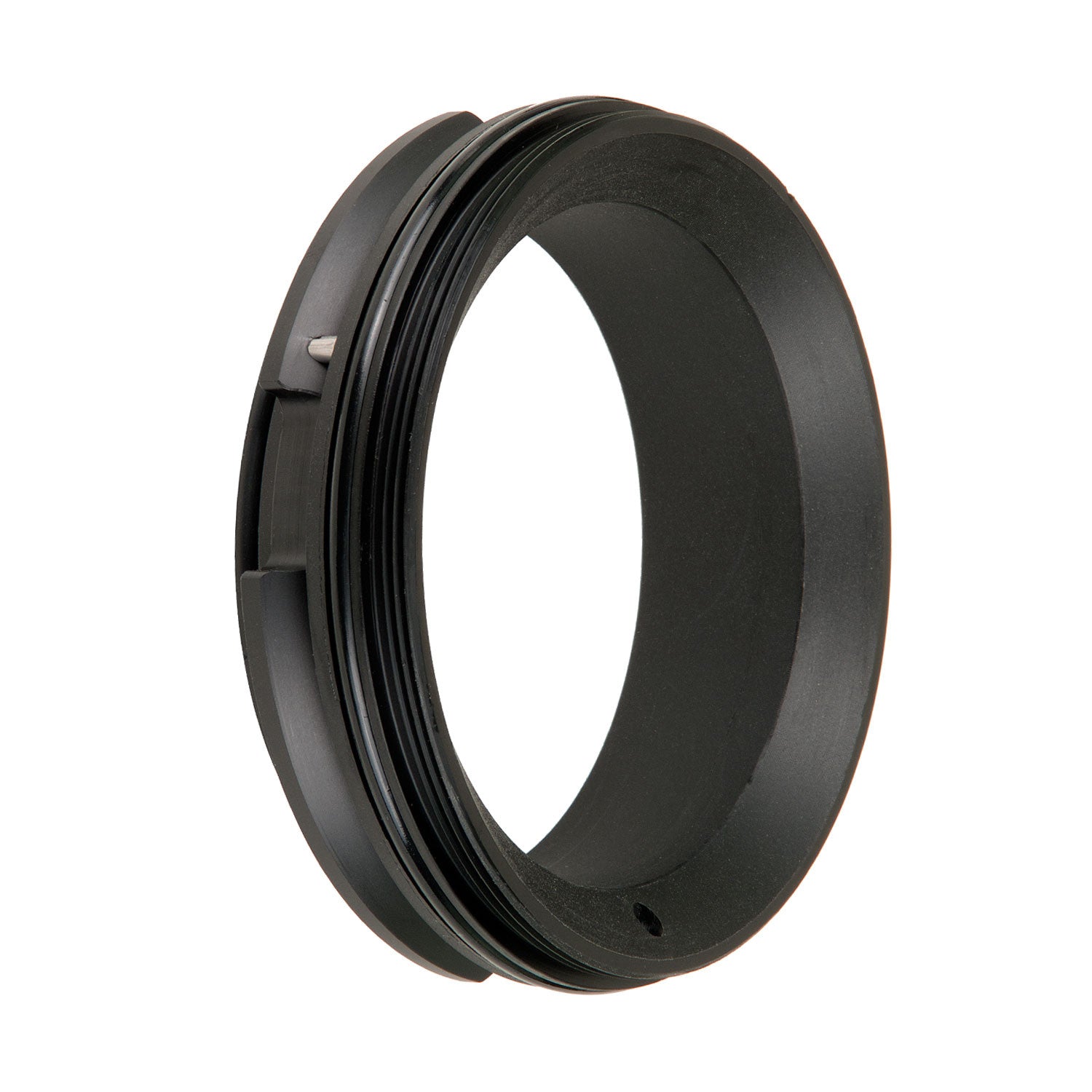

Our shortest Modular Lens Extension for use with compact, super-wide angle lenses. The extension threads onto the base of the Modular 8-inch Dome for simple assembly. Bayonet-style attachment to the housing body. Works with all newer 4-lock housings as well as all older 2-lock housings.

Accommodates lenses up to 2.5-inch (7.0 cm) long and 3.3-inch (8.4 cm) in diameter when used with the Modular 8-inch Dome. Accommodates lenses up to 2.6-inch (6.6 cm) long when used with the Modular Flat Front. The included anti-Rotation lock cannot be used with the Modular Flat Front. Measure your lens or use our Port Finder to determine compatibility.

This Port Body utilizes a bayonet style mount that requires low-profile port locks, standard on all housing models manufactured since March 2006 (serial number 15798 and above).

  • Lens extension

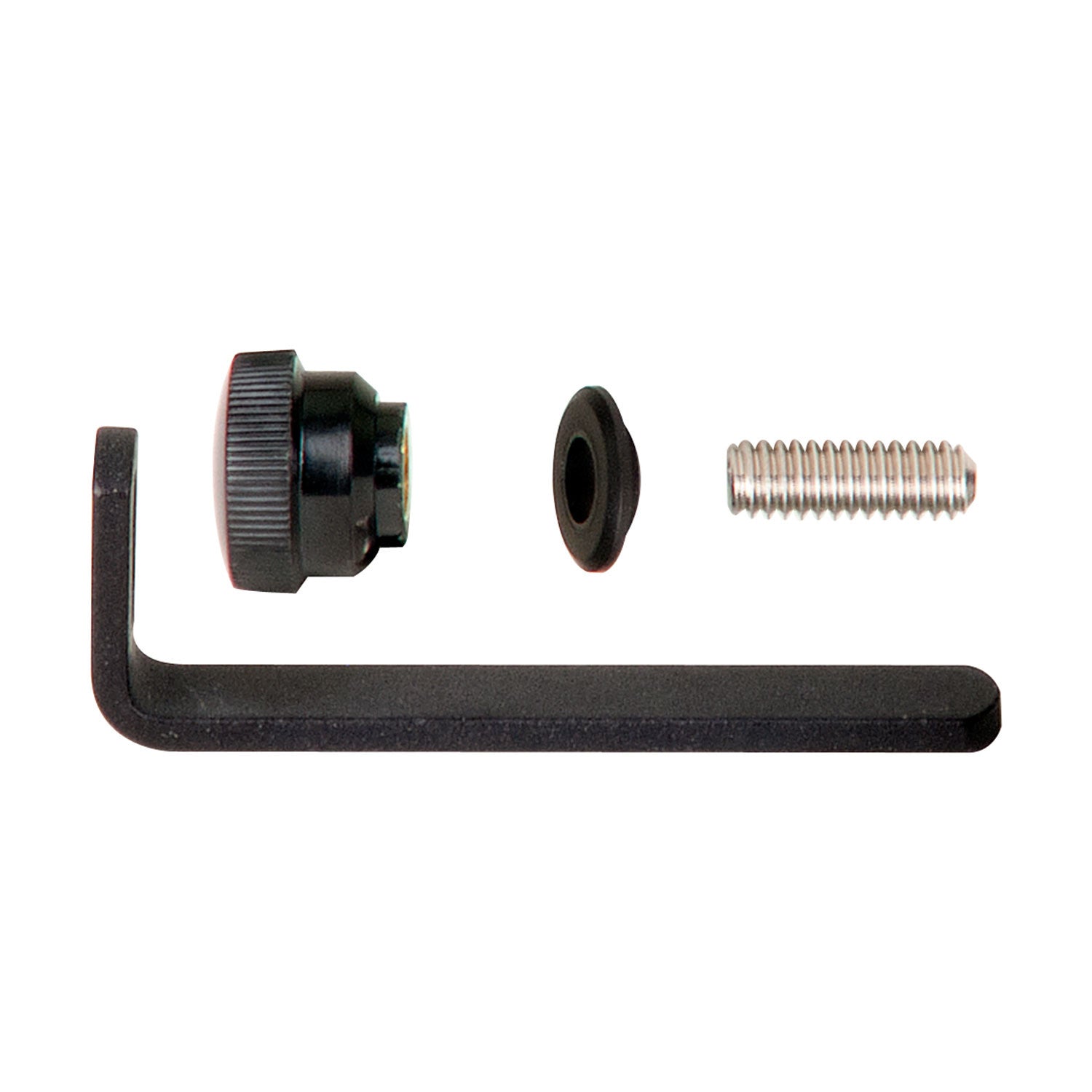

  • Anti-rotation lock
  • Silicone lubricant 1cc tube
  • 1 year manufacturer warranty
  • 200 ft (60m) depth rating
0105O-ring to housing 0132.41O-ring to dome or flat front 0184.2Silicone lubricant resealable 2cc tube
Where to buy

The MSRP referenced is a suggested US market retail price. Actual sales prices are set exclusively by Authorized Ikelite Dealers. Shown with camera, not included.
