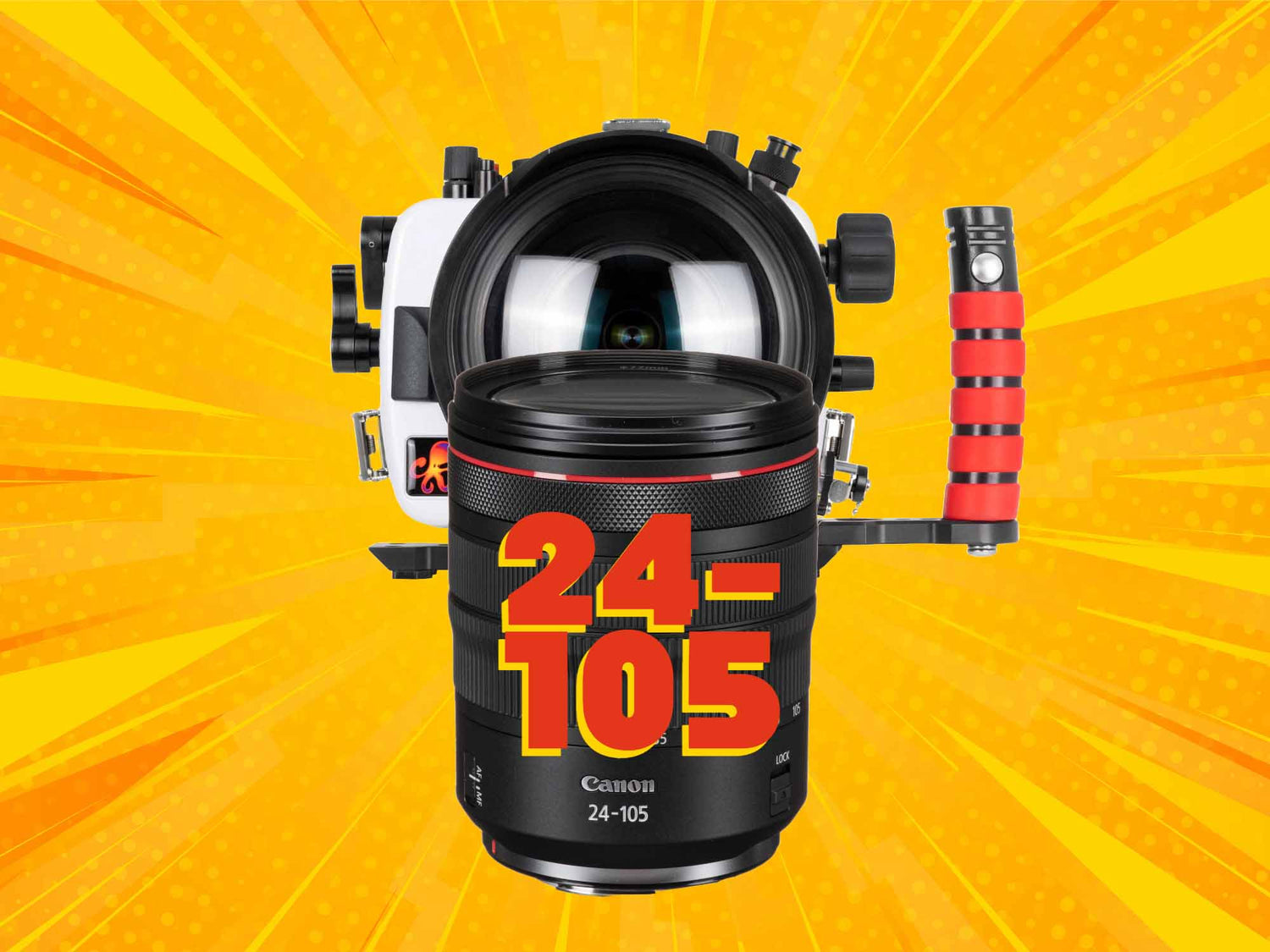

Canon RF 24-105mm f/4L NEW Zoom Gear Assembly // Ikelite 200DL Underwater Housing

Canon RF 24-105mm f/4L NEW Zoom Gear Assembly // Ikelite 200DL Underwater Housing

The new Zoom Gear # 5509.54 provides improved installation and operation with the Canon RF 24-105mm f/4L IS USM lens compared to the prior recommendation of Zoom Gear # 5509.32.

The Canon RF 24-105mm f/4 L IS USM is a versatile lens for surface shooting that you may want to take in the water for shooting smaller to mid-size subjects. This lens is not well suited to surf photography, split shots, or anything wide angle due to its 1.48' (45cm) minimum focus distance and the resulting need to shoot it with a +4 diopter attached.

Mike shows you the important points you need to know when installing the zoom gear for the 24-105mm lens for use in a compatible Ikelite 200DL Underwater Housing.



Getting Started

Set the switches on the side of the lens to the correct positions before you get ready to install the lens on the housing. The switch settings cannot be changed while the lens is installed in the housing.

Alignment

It's important to align one of the narrow grooves in the zoom gear with the red dot on the camera body's lens mount prior to attaching the lens.

Canon RF-mount camera body with zoom gear in Ikelite Underwater Housing

Use the knob on the side of the housing to align one of the narrow slots in the zoom gear must line up with the red line on the camera body before you attach the lens.

This will position the gear in a way that avoids interference with the switches on the side of the lens.

Taking the Camera Out

The camera cannot be installed in or removed from the housing with the Canon RF 24-70mm f/2.8L lens attached. The port and lens must be removed before the camera body can be taken out.

Avoid taking your camera body out of the housing altogether by adding our USB-C Charging & Data Transfer Bulkhead.





Reference

See the Zoom Gear # 5509.54

See the DL Port System Chart for Canon RF Mount Lenses
