US Market Suggested Retail Price $650
- Key Features
✓ Access to important camera functions
✓ True Olympus TTL
✓ See the O-ring seal
✓ Wide angle options
✓ 200ft (60m) depth rating
TAKE MORE, BETTER PHOTOS
No other full-featured housing supports true Olympus TTL exposure metering with a directly connected external flash.
An electrically connected Ikelite DS Substrobe fires more reliably and cannot be triggered accidentally by
reflections or other flashes. The camera's built-in flash does not need to fire for automatic TTL exposure,
saving battery life and improving recycle time!

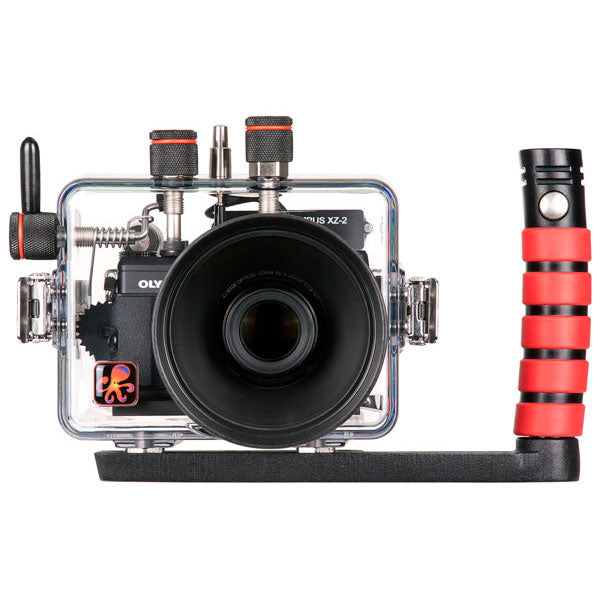

The Ikelite housing for the XZ-2 doesn't just allow you to take pictures underwater—It helps you
get the most, and most perfect, shots possible.
CLEARLY SUPERIOR DESIGN
The durable polycarbonate and acrylic construction provide a unique view of the camera to ensure
correct waterproof installation and confidence underwater. A simple to maintain compression sealed rear
o-ring is plainly visible through the back of the case. An included tray with soft-grip handle provides
comfortable handling underwater and a built-in attachment point for lighting accessories.
- Recommended Accessories
- DS161 Substrobe
True TTL flash exposure—just like attaching an Olympus flash! We recommend the
only strobe to combine the superior coverage of a round flashtube with a built-in LED video light.
- PRO-V8 LED video light
For additional lighting when using the camera's movie mode and to aid in focus.
- WD-4 Wide Angle Dome
Increase your camera's effective angle of coverage so that you can get much closer to your subject for
more clear, colorful photos and video. Super-sharp corner to corner with no vignetting.
- Color filters
Replace some of the reds, oranges and more natural tones that would otherwise be lost
as sunlight is filtered by water. For use without a strobe.
Available for tropical blue or green water settings.
- Tray with Dual Handles
The housing includes a tray with single handle for comfort and the attachment of an underwater
lighting accessory. Add a dual tray and handle for improved handling and the addition of a second strobe.
- Housing Specifications
All camera functions except Flash Switch, Fn2 Button and Manual Focus Lever
7.4 in (188mm) including controls
6.0 in (152mm) including controls
6.2 in (157mm) including controls
4.1 lb (1.9kg) without handle assembly
Near neutral in freshwater
Sync Cord or Slave
3/8-16 bolts with 3in spacing (76mm)
|Port Outer Diameter|
|Blue Water Filter|
|Green Water Filter|
|Use 46mm Lenses|
|Use 67mm Lenses|
|Use Bayonet Lenses|
|Use WD-4 Dome|
9523.61 Tray with Single Handle
0200.08 Vinyl Port Cover
0184.1 Silicone Lubricant
5020 Silicone lubricant in 4 1cc tubes
Ikelite products are available worldwide through any Authorized Ikelite Dealer.
