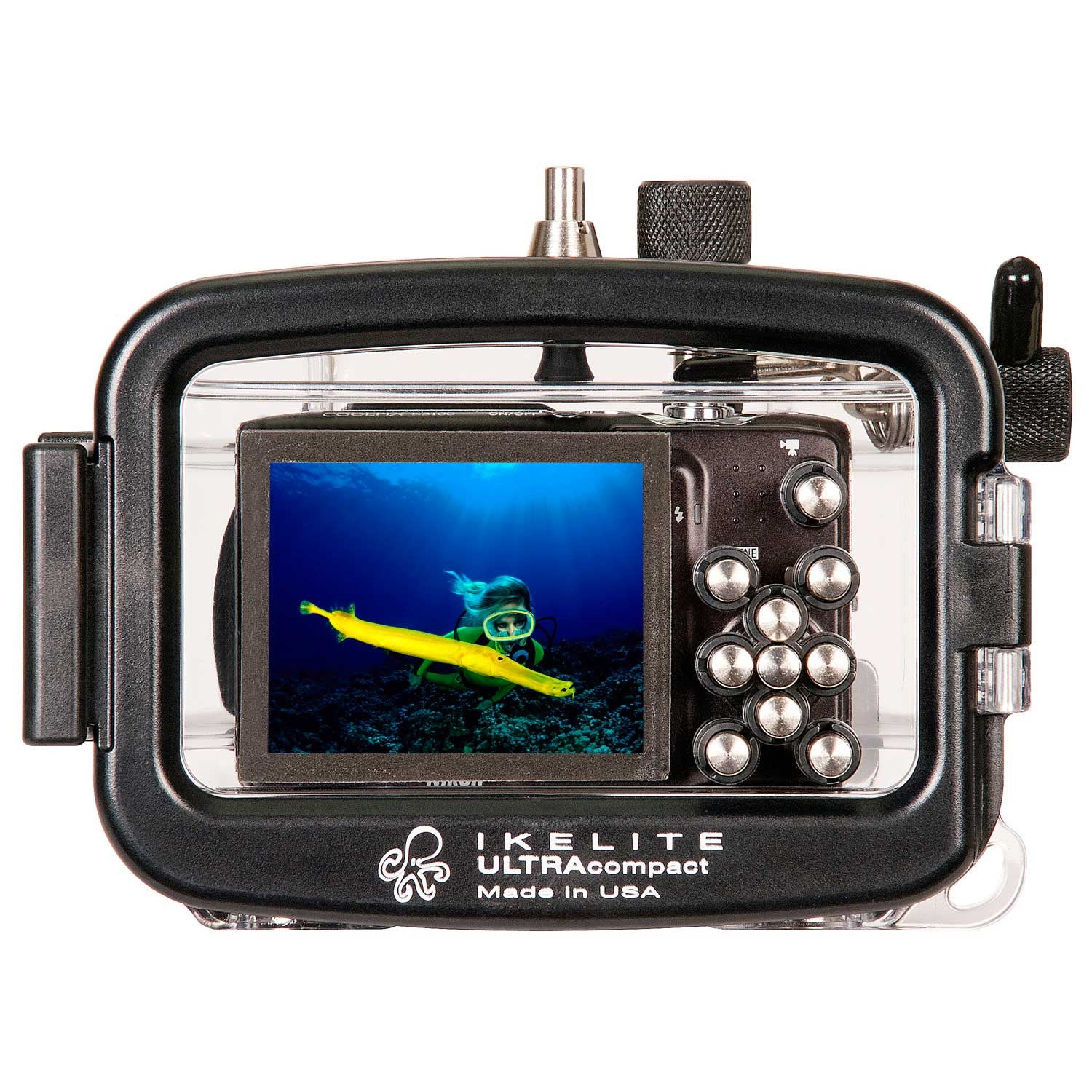

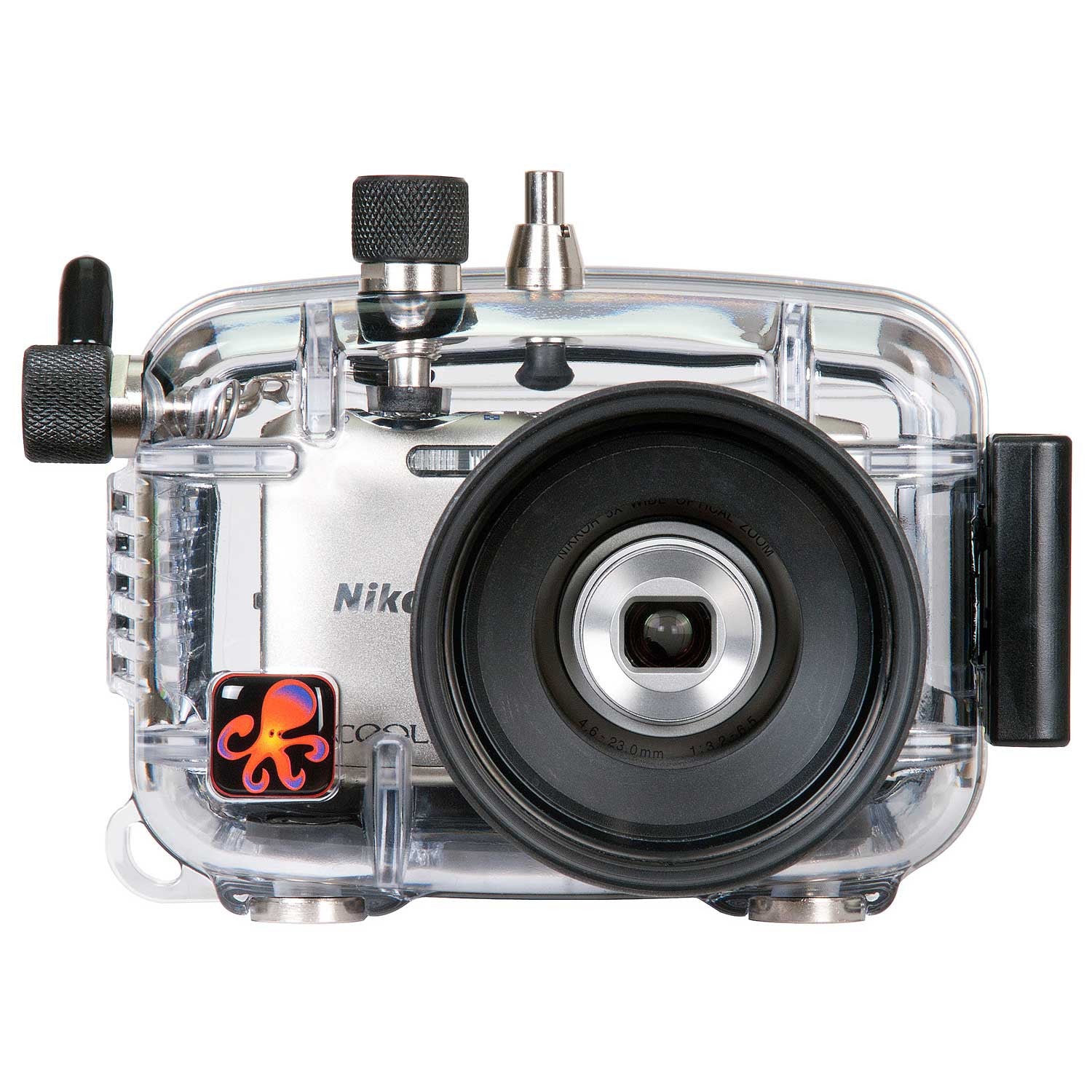

Nikon Coolpix S3100
Product #6282.31
US Market Suggested Retail Price $260

The Ikelite ULTRAcompact digital housing really delivers when performance and durability matter. The ULTRAcompact housing is high quality, built to last and backed by Ikelite's long-standing reputation for excellence.

All camera controls are fully functional through the housing and depth rated to 200 ft. (60m). Easy open latch and drop in camera loading make set-up a breeze.

Two 12-24 threaded mounts on the bottom of the housing allow for the secure, rotation-free attachment of optional trays and lighting accessories.

Size and Weight
Width ...... 6.1 in. (155mm) including controls
Height ...... 4.6 in. (117mm) including controls
Depth ...... 3.8 in. (97mm) including controls & lens port
Weight ...... 1.3 lb. (570g)
Buoyancy ...... Slightly positive in fresh water

Spare Parts
#0132.45 Main Housing O-ring
#0134.33 Port-to-Housing O-ring (typically does not need to be replaced)
#0200 Port Cover
#5020 Silicone Lubricant in four 1cc Tubes
#0321.10 Vinyl Break-Away Safety Lanyard

Trays with Release Handles
Optional Tray with Release Handle(s) provide comfortable handling underwater and attachment points for external substrobes, video lights and accessories.
Click here to see Trays with Release Handles.

External Color Filters
Replace some of the reds and more natural tones that would otherwise be lost. Available as #6441.41 for tropical blue water and #6441.81 for green water. Filters are effective in shallow, sunny conditions depending on water clarity.
Click here to read more about color correcting filters and see examples of their use.

External Underwater Strobes
AutoFlash AF-35 Ikelite strobes are much more powerful, recycle more quickly, and eliminate more backscatter than the camera's built-in flash. The AF35 AutoFlash Kit provides automatic "TTL" exposure by optical signal from the camera's built-in flash. The AF35 is the easiest way to add color and vibrancy to your photos. For the best results in all conditions.

Click here to read about the AF35 AutoFlash Kit.
Click here to see all current compatible strobe systems.

Video Lighting
An external light for video enhances colors during the day and allows video shooting at night.

The Pro-V8 LED Light is a compact and affordable 500 lumen video light. It easily doubles as a focus light and is compatible with any still or video system.
Click here for more information on the Pro-V8.

The PRO-2800 LED Light is the ultimate lighting system for high definition video.
Click here for more information on the PRO-2800.

External Accessory Lenses
An external wide angle conversion lens increases angle of coverage so you can get much closer to your subject while still fitting everything in the frame. By reducing the amount of water between the subject and your camera lens, the resulting image will be more crisp and colorful.

Attach 67mm threaded #6420 Ikelite W-20 and other lenses directly to the front of the port. This housing is not compatible with bayonet-style accessory lenses.

Moderate vignetting (shading in the corners) will be present in the widest setting when using an external accessory lens. This effect can be eliminated by zooming in slightly.

Compact Travel Bag
The optional #3910 Compact Travel Bag is the perfect carry-on for this digital system. Padded sides and divider provide just the right amount of protection for your photo equipment, laptop, electronic devices and personal items. Ample zippered and non-zippered pockets keep all of the essentials right at your fingertips.

Recommended Products
AF35 AutoFlash
W-20 Wide Angle Lens
Travel Accessories

Ikelite products are available worldwide through any Authorized Ikelite Dealer.
Click Here for a complete listing.
