Underwater Housing for Panasonic Lumix LX10, LX15

MSRP $550
Product Number 6171.01

This powerful compact housing packs in all of our latest upgrades to controls and ergonomics. The shutter lever has been updated to a more sensitive and natural feeling curved design. The standard control hugs the side of the housing for comfortable use when hand holding. It can be easily extended using the optional Shutter Trigger Extension # 4077.93 to put it within easy reach when using a right-hand quick release handle.

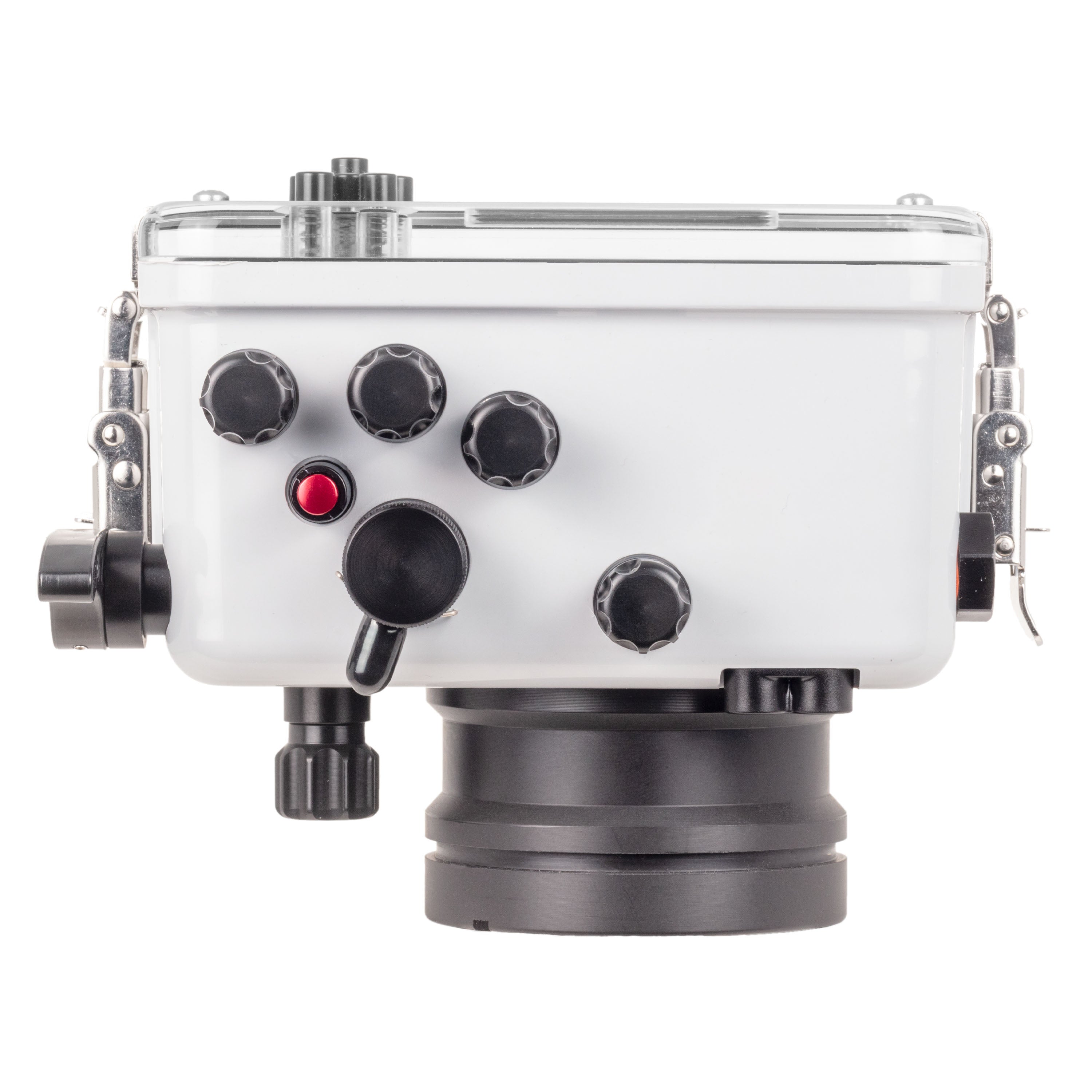

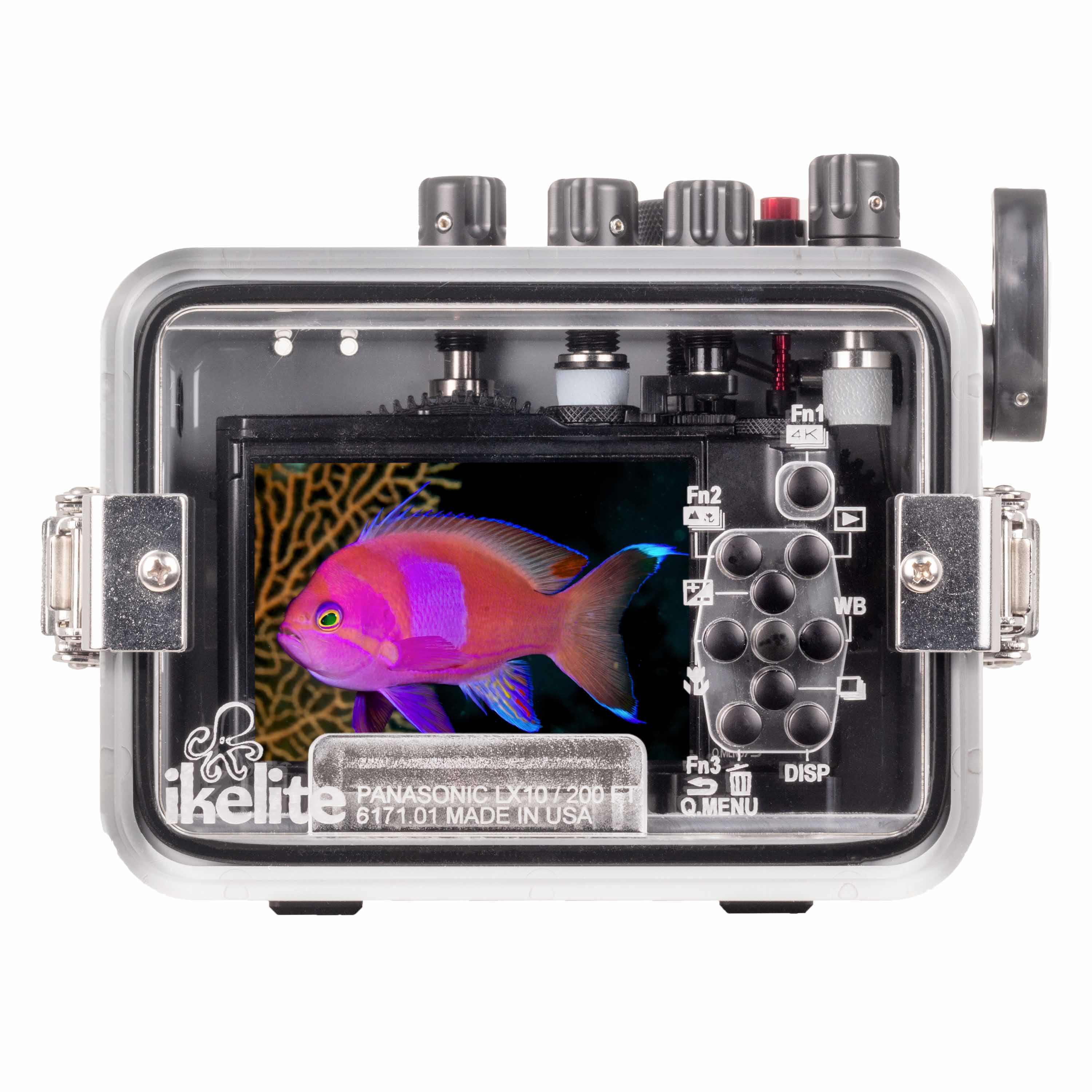

Our push buttons have been redesigned to reduce weight and salt build-up for smooth operation with minimal maintenance. The back of the housing features laser engraved control symbols which will never fade or fall off.

The camera mount is front-loading for easy installation and removal. A small mounting plate attaches to the bottom of the camera and secures in the front of the housing. The camera mounting plate does not need to be removed from the camera for surface use or when changing the battery or memory cards. The mounting plate features a 1/4-20 threaded mount on the bottom so that it can be attached to a tripod on the surface.

Durability and corrosion free performance

Our new white ABS-PC blend housing provides strength and corrosion free performance year with minimal maintenance. The specially formulated color deflects the sun to keep your camera running cooler, longer. Compared to black or clear housings, the light color provides superior contrast for enhanced view of the camera, LCD screen, and o-ring seal.

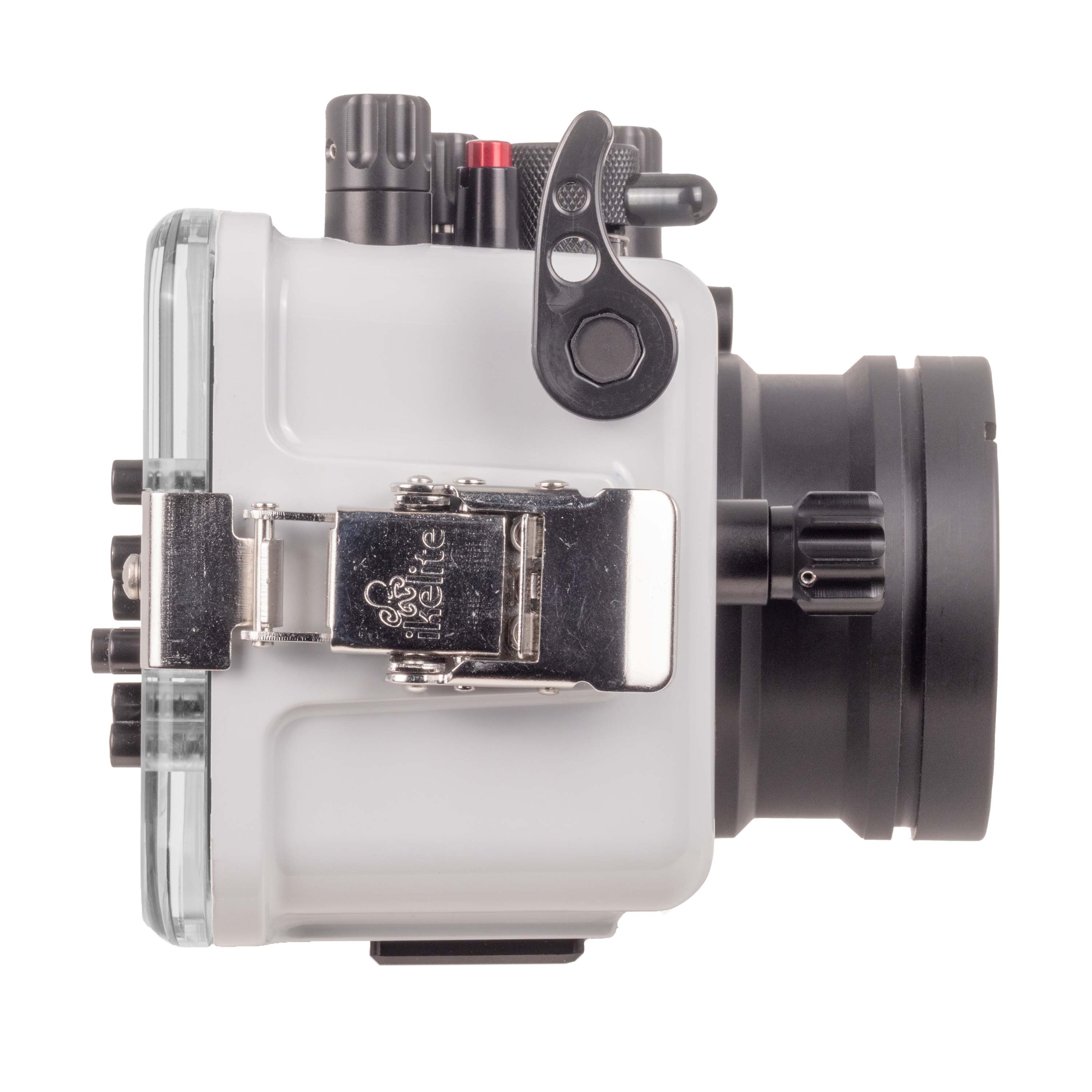

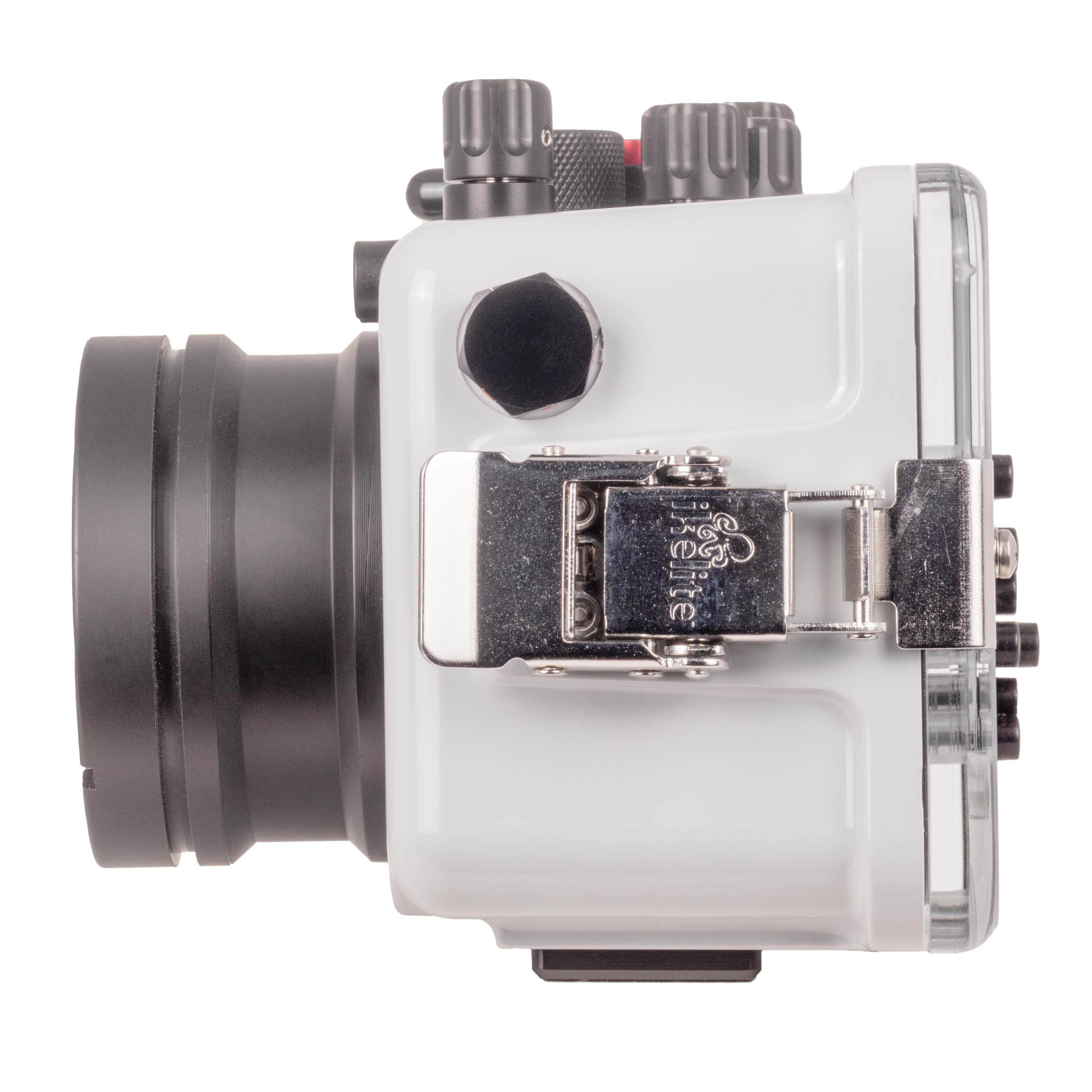

The unique rear seal design prevents accidental twisting or stretching of the o-ring for simple and confident assembly. We have eliminated the need for an o-ring groove or channel which can trap sand, dirt, or debris. Two double-passivated stainless steel locking lid snaps are simple to use and virtually unbreakable. The clear back allows you to see the o-ring form a solid, watertight seal as it closes.

A spare 1/2-20 threaded accessory port is provided on the side of the housing for easily installation of the optional Vacuum Kit # 47012. A vacuum kit allows you to pressurize the housing to check for proper assembly prior to entering the water.

Ikelite products are designed, built and tested in the USA. We use locally sourced, top-grade materials. Our housings are built by hand and individually tested for fit and function. Every unit is water pressure tested to 200 feet (60m). We back our products with over 50 years of experience and the best reputation for service within the dive industry.

Due to the position of the camera's flash in relation to its lens, the built-in flash is not suitable to illuminate photos under water. For the best color and clarity, we recommend adding a filter, strobe, or constant-on light. The built-in flash may be used to trigger external strobes via fiber optic sync cord. Two ports are provided for the connection of up to two fiber optic cords.

Any Ikelite DS strobe may be connected using the Fiber Optic Converter # 4401.1 and Fiber Optic Cord # 4501. The AF35 strobe is not compatible with this housing.

Fiber optic cord compatibility

  • Ikelite Fiber Optic Coiled Cord # 4501
  • INON Optical D Cable "Non-wireless type" L-Connector
  • SEA&SEA Fiber Optic Cable (L-type) # 50107
  • SEA&SEA Fiber Optic Cable II # 50128
  • Olympus UW Fiber Optic Cable PTCB-E02
  • Nauticam Optical Fiber Cable # 26211 Nauticam to INON
  • Nauticam Optical Fiber Cable # 26212 Nauticam to Sea&Sea
  • Housing
  • Port cover # 0200
  • Silicone lubricant 1cc tube # 0184.1
  • 1 year manufacturer warranty
  • 200 ft (60m) depth rating
  • Controls for all camera functions except Flash open lever; flash must be opened prior to installation of camera in housing
  • Slightly negative buoyancy in fresh water

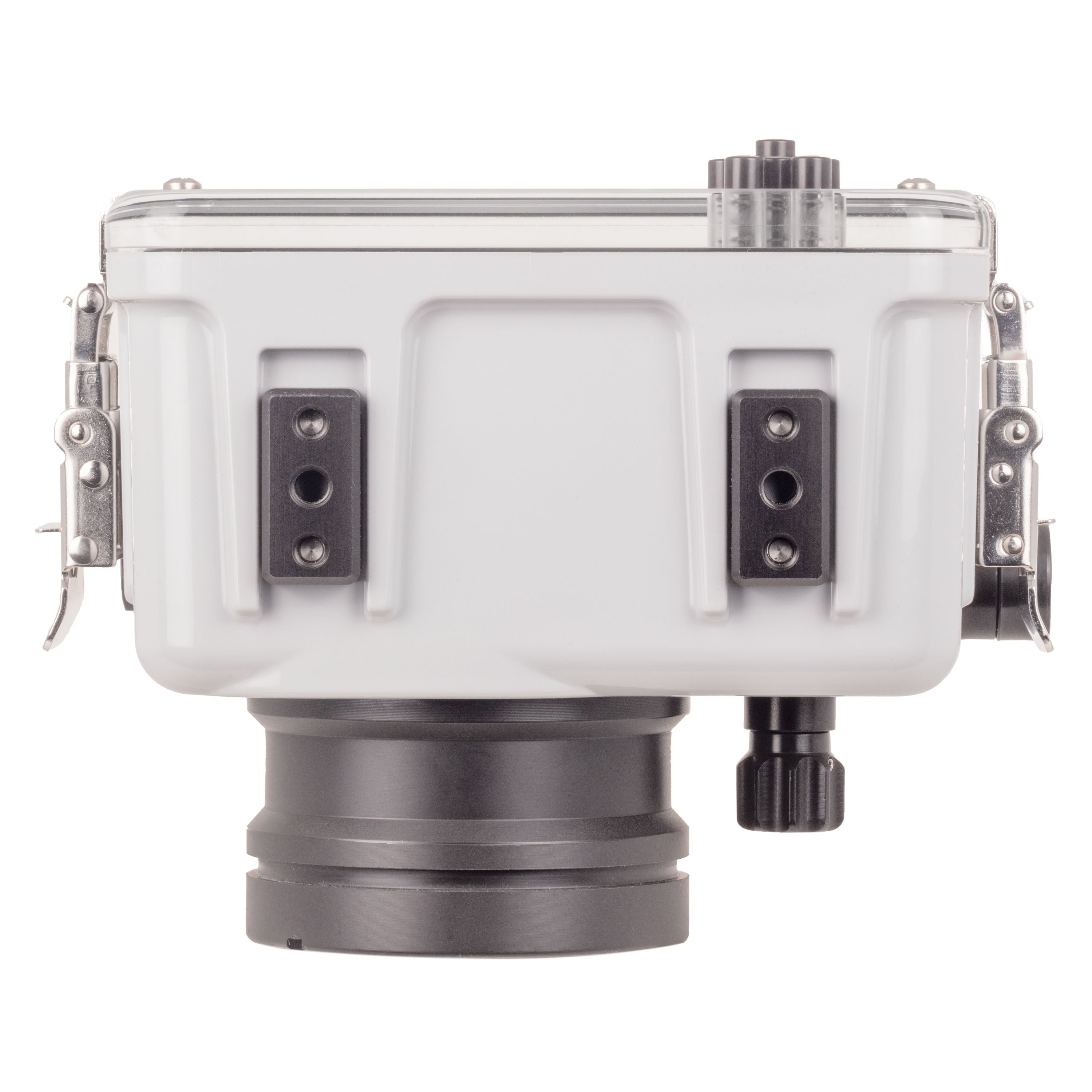

  • 1/4-20 thread tray mounting with 3 in (76mm) spacing
  • Weight 2.6 lb (1180 g)
  • Dimensions 5.3 x 5.1 x 6.9 in (135 x 130 x 175 mm)
  • 3.0-inch diameter glass lens port
0109Main o-ring 0200Port cover 0184.2Silicone lubricant resealable 2cc tube
Where to buy

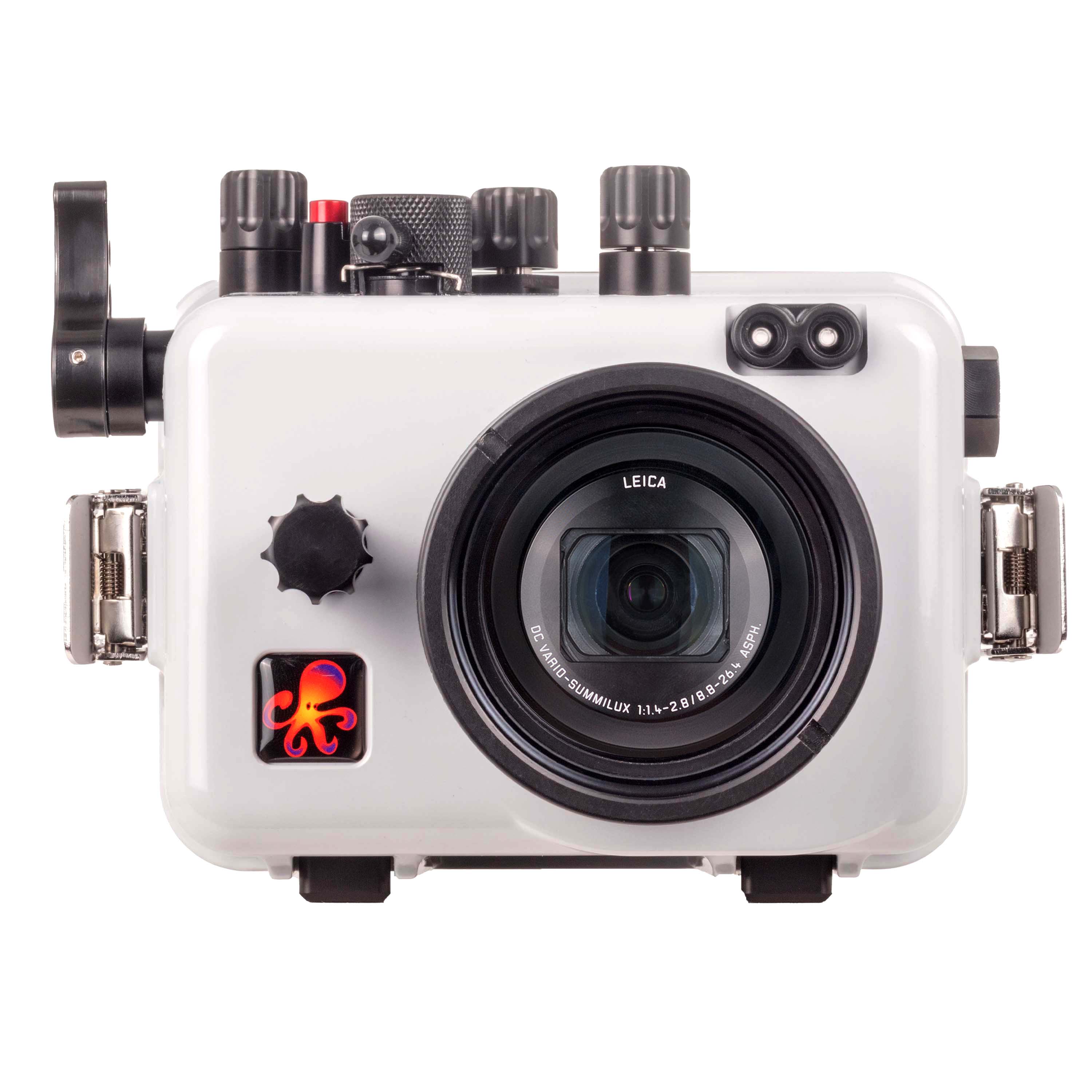

The MSRP referenced is a suggested US market retail price. Actual sales prices are set exclusively by Authorized Ikelite Dealers. Shown with camera, not included.
