SKU: 6146.07

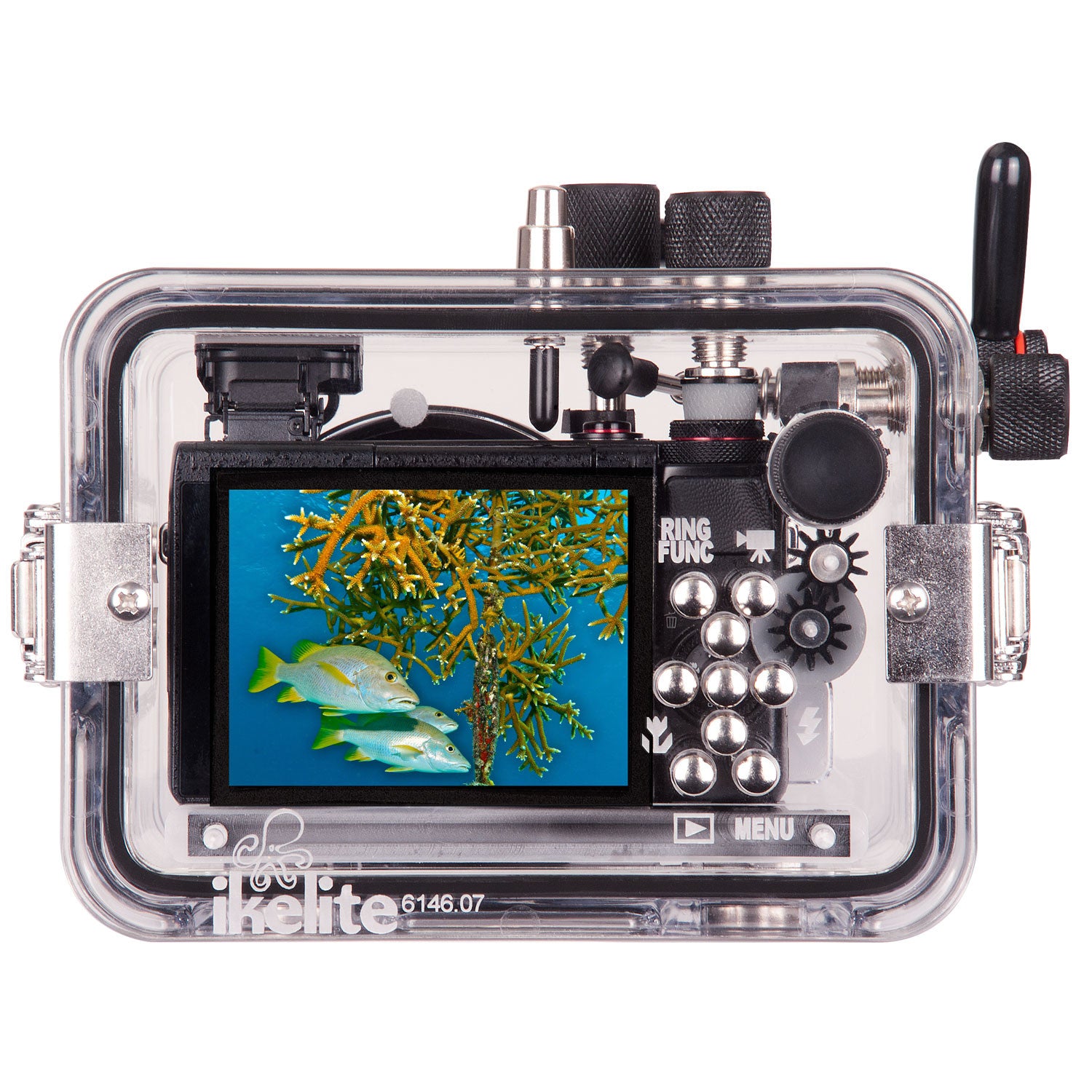

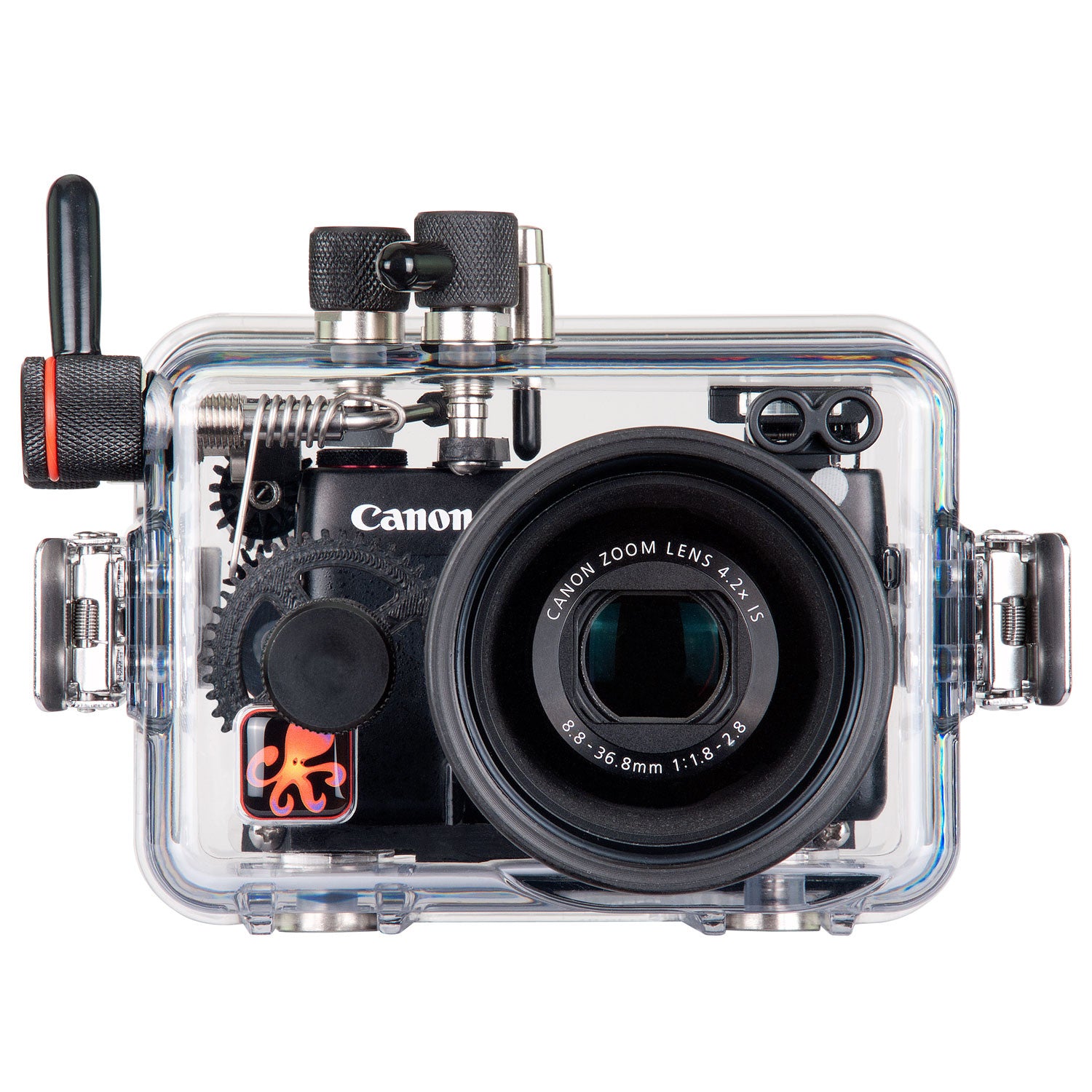

Underwater Housing for Canon PowerShot G7 X

Sale price$ 0.00
Sold out

This housing is out of stock and permanently out of production. We have no remaining new, blemished, or used inventory. We continue to provide service of this product even though it has been discontinued.

A full featured and durable underwater housing for Canon PowerShot G7 X cameras. Suitable for scuba, snorkel, surf, pool, and any application in or around the water.

Construction

There's no greater assurance than being able to see the o-ring seal. Simply close the two double-passivated stainless steel locking lid snaps, and see the o-ring form a solid black, watertight seal.

Ikelite products are designed, built and tested in the USA. We use locally sourced, top-grade materials. Our housings are built by hand and individually tested for fit, function and waterproof integrity. We back our products with over 50 years of experience and service within the dive industry.

Ergonomics

This housing is just-right-sized to hold comfortably in your hand. Controls are provided for all important camera functions including the rear dial. The camera's versatile front control ring is gear driven to place the control within easy reach. A sensitive shutter lever makes it easy to half-depress the trigger for focusing and metering. All rear controls are clearly marked with engraved indicia which will never fade or fall off.

Flash

An included flash diffuser improves lighting quality when the camera's built-in flash is used. A built-in flash is effective between 1-3 feet (0.3-0.9m) from the subject in clear conditions. For best results a color correcting filter or external lighting is recommended. External lighting is more powerful and can be placed in a position to virtually eliminate the backscatter - or "snow" - from your underwater images.

The optional AF35 strobe triggers and provides automatic TTL exposure by watching the camera's built-in flash, without the need of fiber optic cords or sensors. Alternatively, two ports are provided for the connection of up to two Ikelite-, SEA&SEA-, or Olympus-type fiber optic cords.

Wide Angle, Macro, & Filters

Our 3-inch diameter ports feature a 67mm thread on the front for the easy attachment of external wide angle and macro wet lenses. Wide angle lenses make objects appear smaller, so that you can fit more into your frame underwater. Macro close-up lenses make small objects appear larger, so that tiny creatures will fill your frame.

The WD-3 Wide Angle Dome provides mid-range angle of view with no vignetting (dark shadows in the corners of the image).

The W-30 Wide Angle Lens, INON UWL-H100, and other 67mm threaded wide angle lenses, provide a wider maximum angle of view. Because these are separated from the camera's lens by glass, air, and water, some vignetting and edge distortion will be present. These effects can be reduced or eliminated by using a smaller aperture, zooming in slightly, and/or cropping in post-production.

External macro lenses with 67mm threads from INON, Epoque, and other manufacturers, can be attached directly to the front of the housing's port.

3-inch diameter color filters press directly onto these ports. Most wide angle lenses require a 3.6-inch diameter color filter. Refer to the product page for information on color filter compatibility.

Compatibility

Differences in camera size and lens placement prevent the newer Canon PowerShot G7X Mark II from operating in this housing. For the same reason, the housing for the Canon PowerShot G7X Mark II cannot be modified or adapted to fit the older Canon PowerShot G7X.



In the Box

Housing

O-ring # 0109

Vinyl port cover # 0200

Lanyard # 0321.10

Flash diffuser

Flash deflector



      Specifications

      200' / 60 m depth rating

      Controls for all camera functions except Flash switch and Mobile Device Connection button

      Slightly negative buoyancy in fresh water

      12-24 threaded tray mounting with 3" (76mm) spacing

      2.6 lb (1180 g)

      6.9 x 5.0 x 5.4" (175 x 127 x 137 mm)

      3.0" diameter glass lens port

      2 year limited warranty



      Documentation

      Instruction Manual
