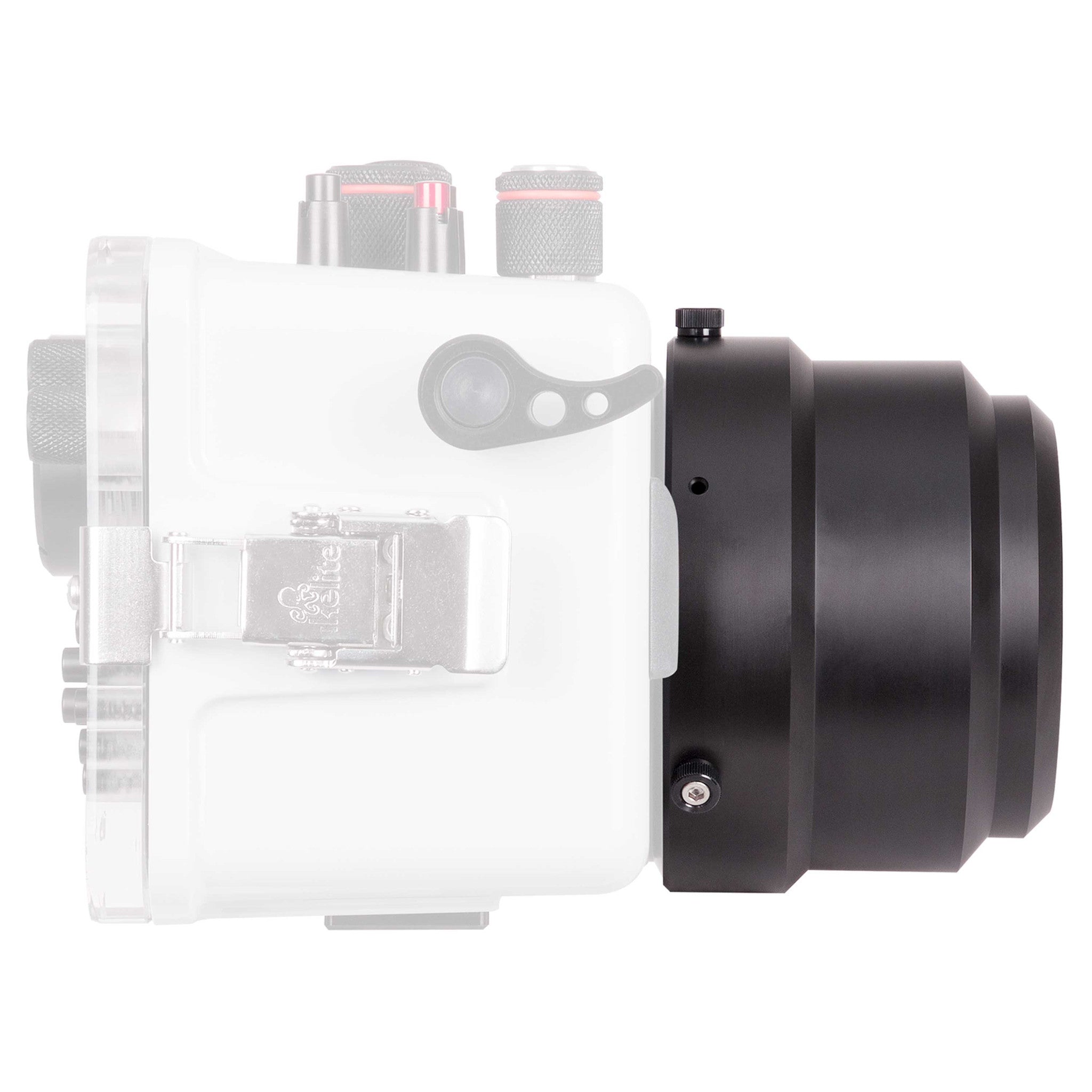

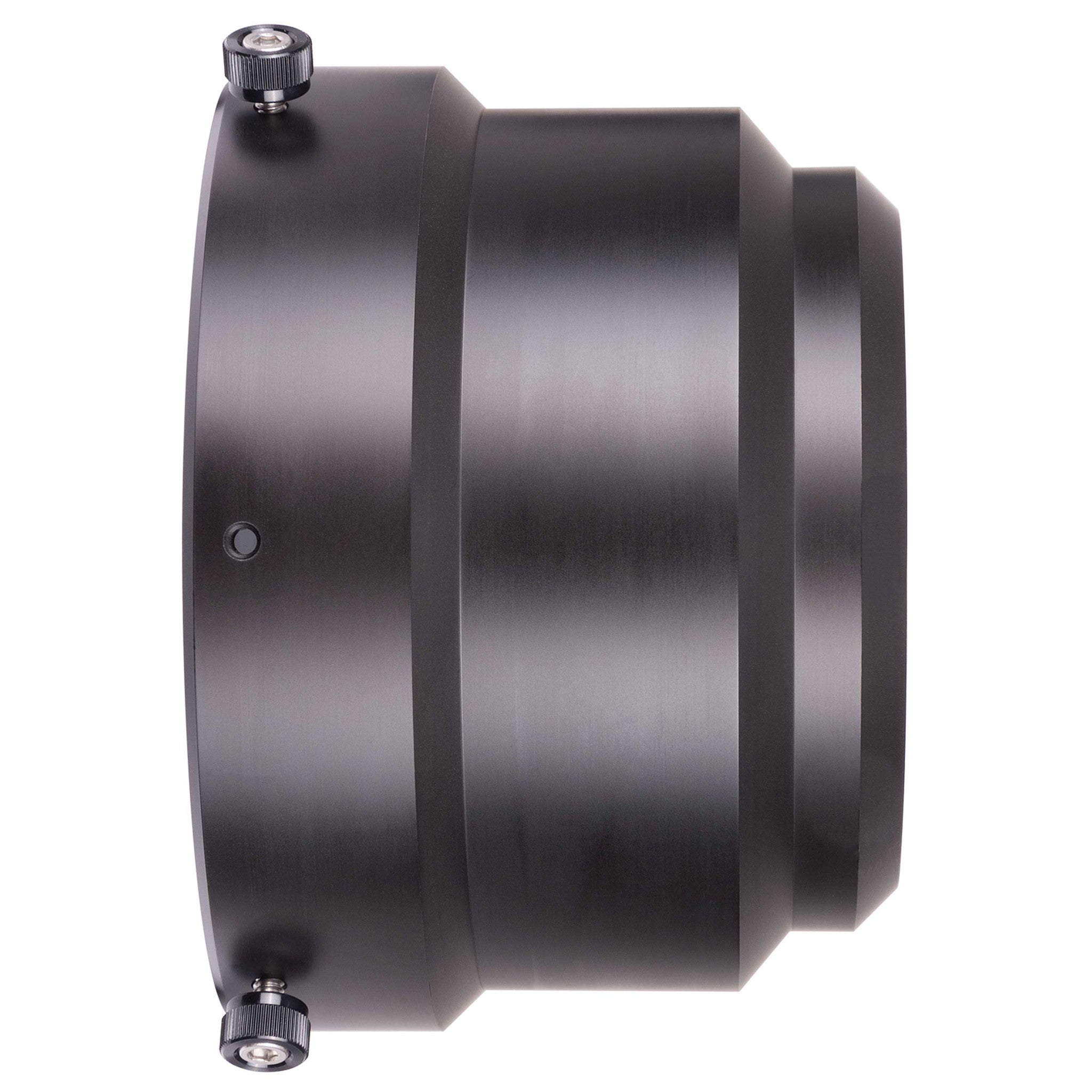

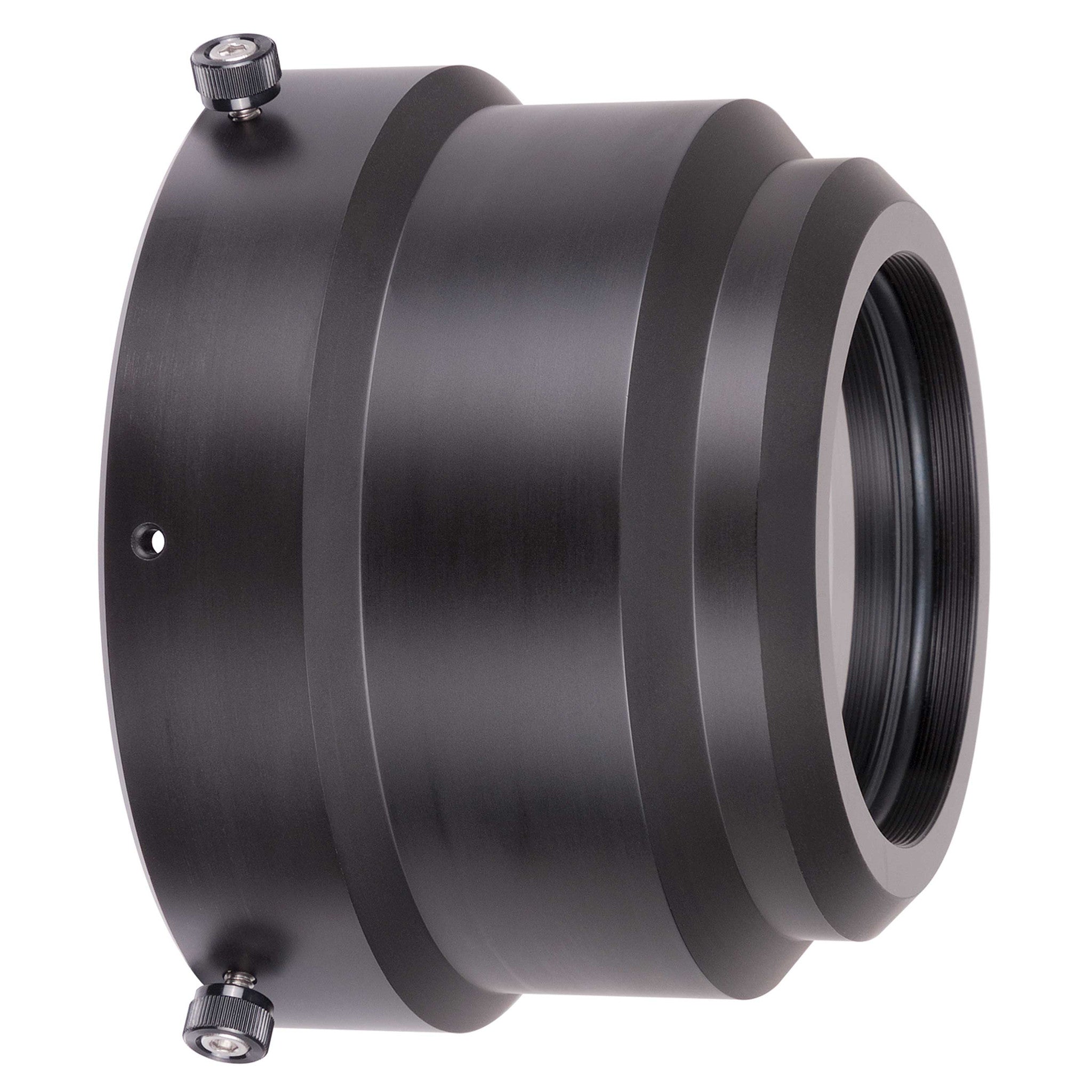

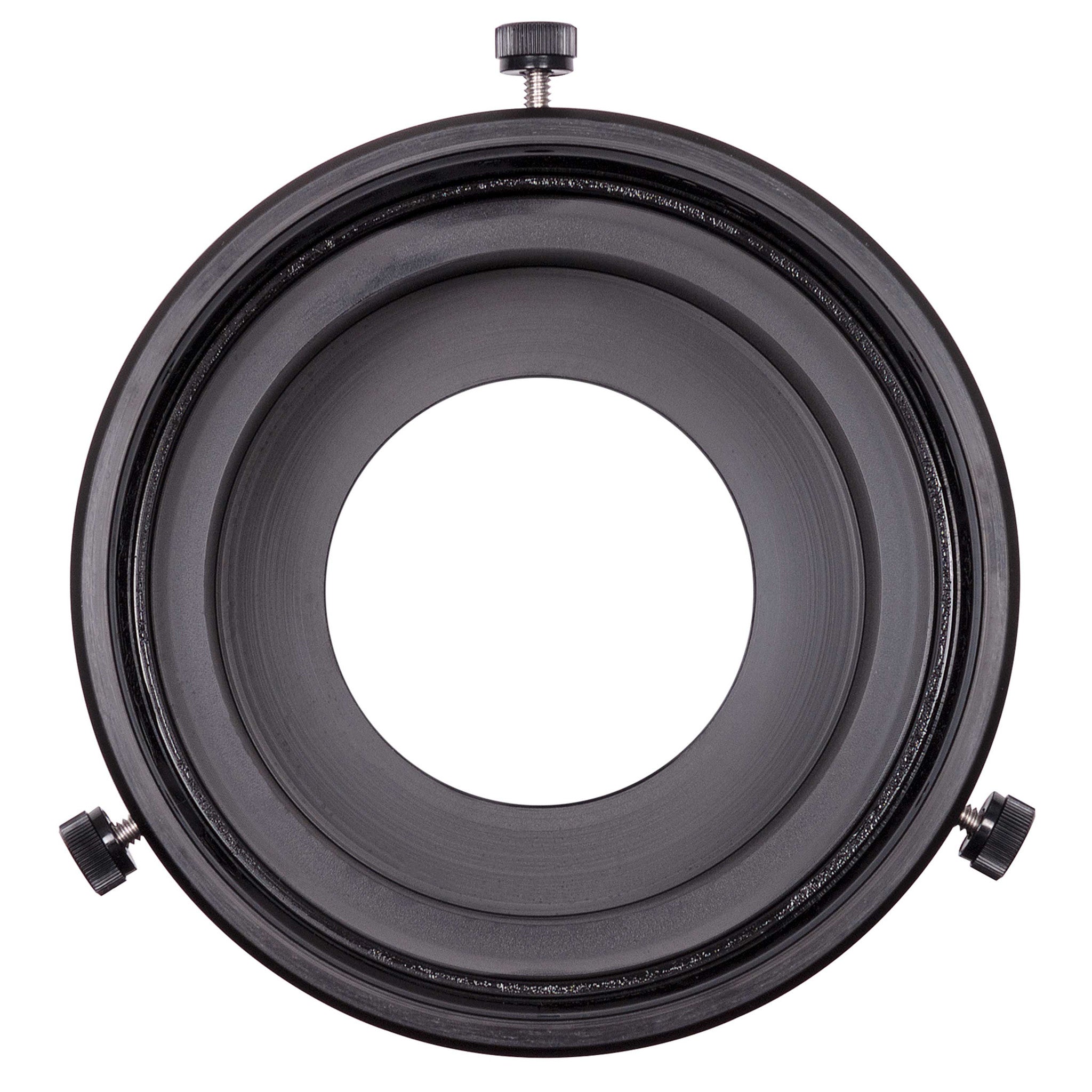

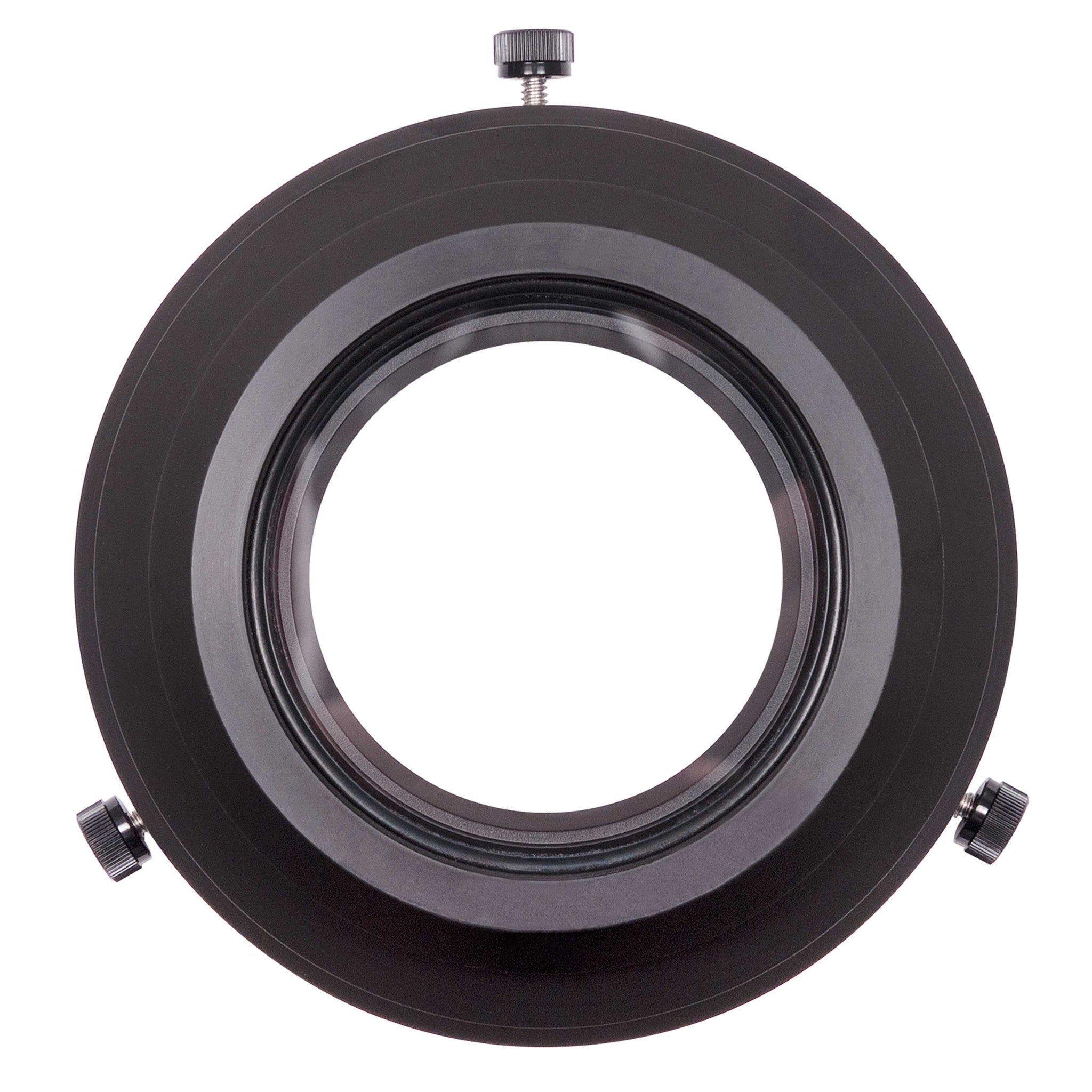

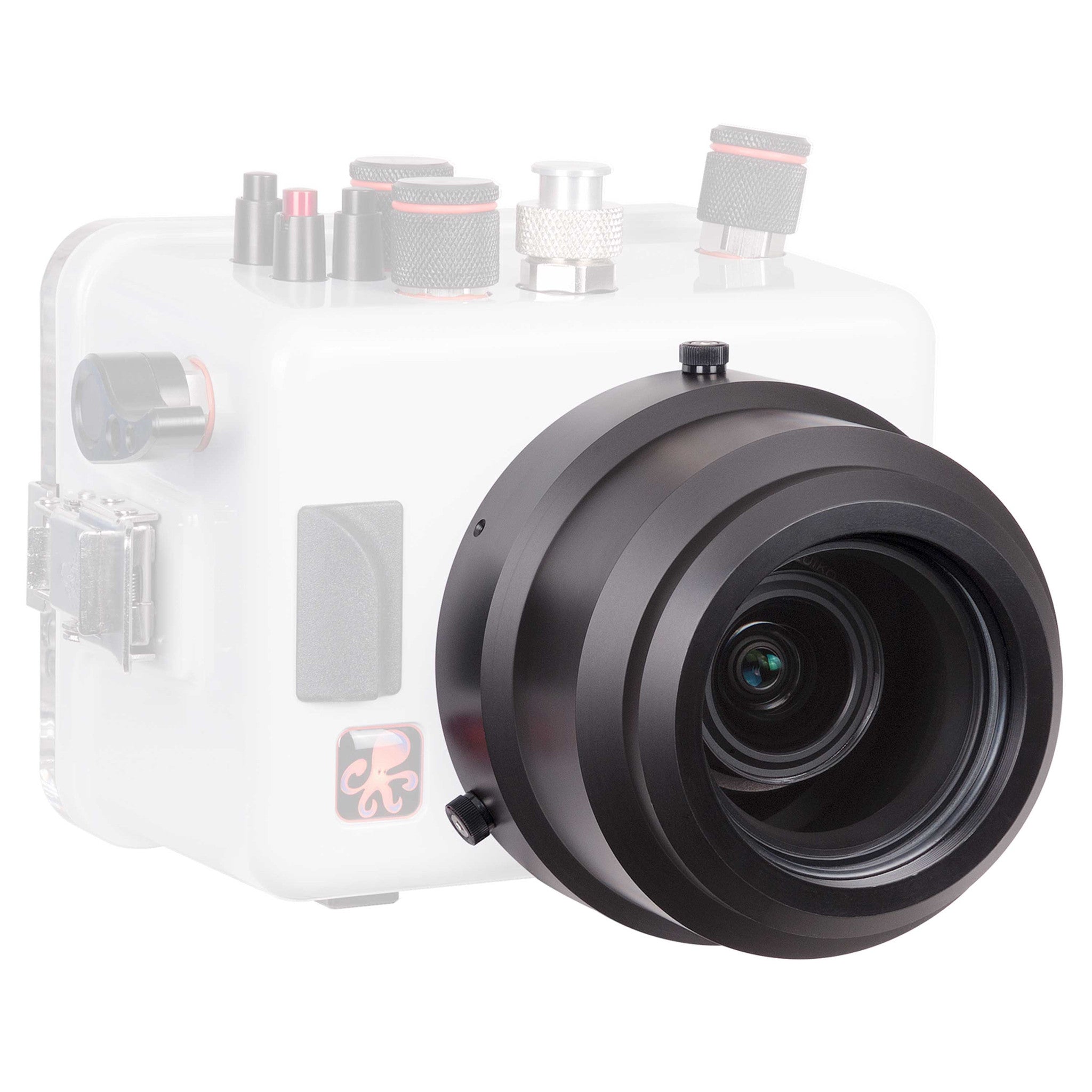

DLM Extended Flat Port

MSRP $250
Product Number 5516.50

A large diameter, extended length flat port for use with larger macro lenses and Ikelite Mirrorless or Compact DSLR Housings. A 67mm threaded front allows for the attachment of external macro lenses or diopters—no separate adapter necessary!

Recommended when using the Canon 60mm Macro with the Ikelite Housing for Canon EOS 100D Rebel SL1. This port can also be combined with the DLM 2.2 Inch Port Extension to use the Canon 100mm IS USM lens.

See Mirrorless Port System section to view lens compatibility for a variety of Mirrorless and Compact DSLR lenses.

An interchangeable lens camera demands a housing with interchangeable lens ports. It couldn't be more simple to change ports than this system—just press the port on and tighten three thumb screws. Feel positive reinforcement that the port is secure without any complex moving parts that can jam or break in a remote location.

View Mirrorless Port Charts

  • Flat Port
  • Neoprene cover
  • Spare securing screws
  • Spare o-ring
  • Silicone lubricant 1cc tube
  • Acetyl body with glass front
  • Dimensions 4.37 diameter x 3 inch (111 x 76 mm)
0184.2Silicone lubricant 2cc resealable tube
Where to buy

The MSRP referenced is a suggested US market retail price. Actual sales prices are set exclusively by Authorized Ikelite Dealers.
