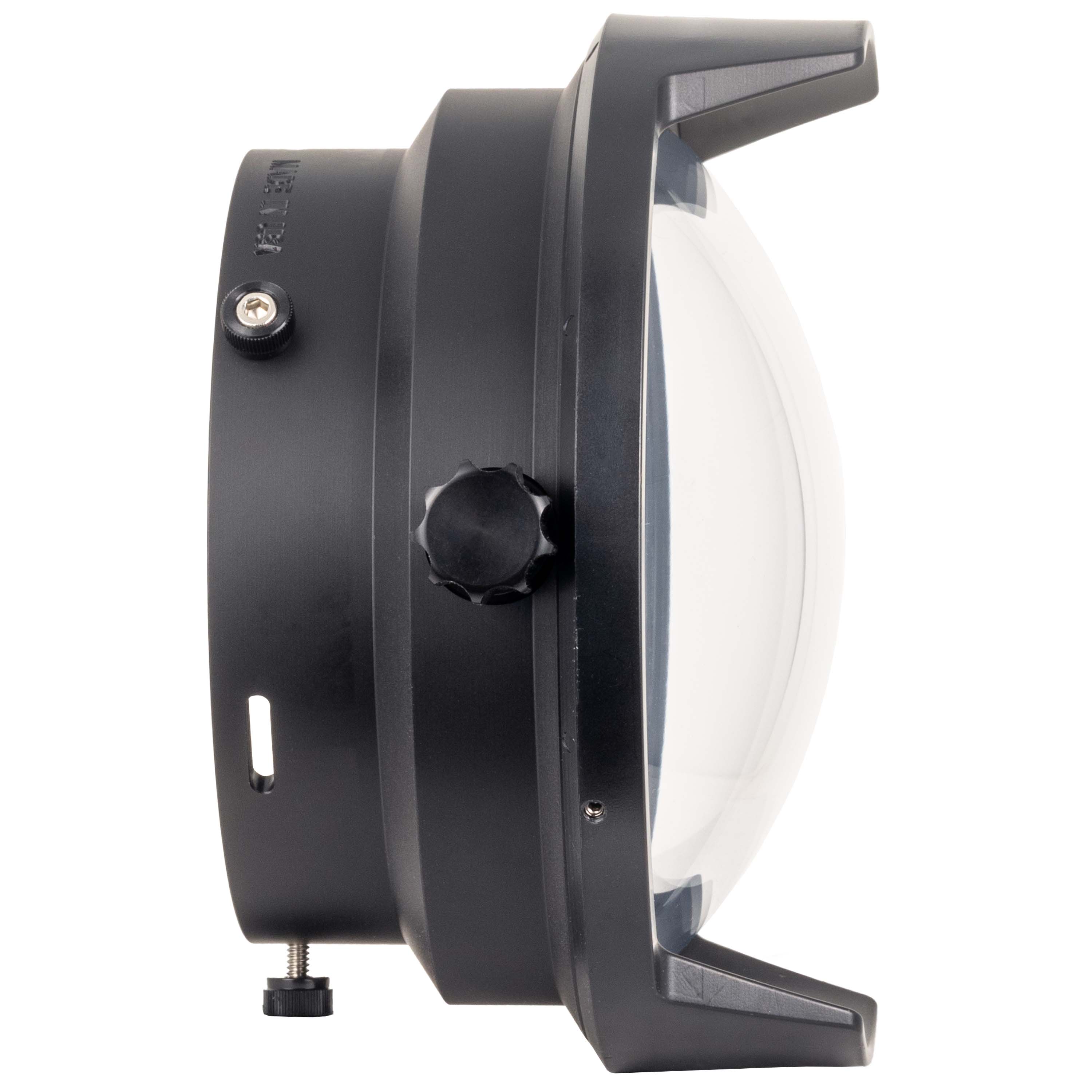

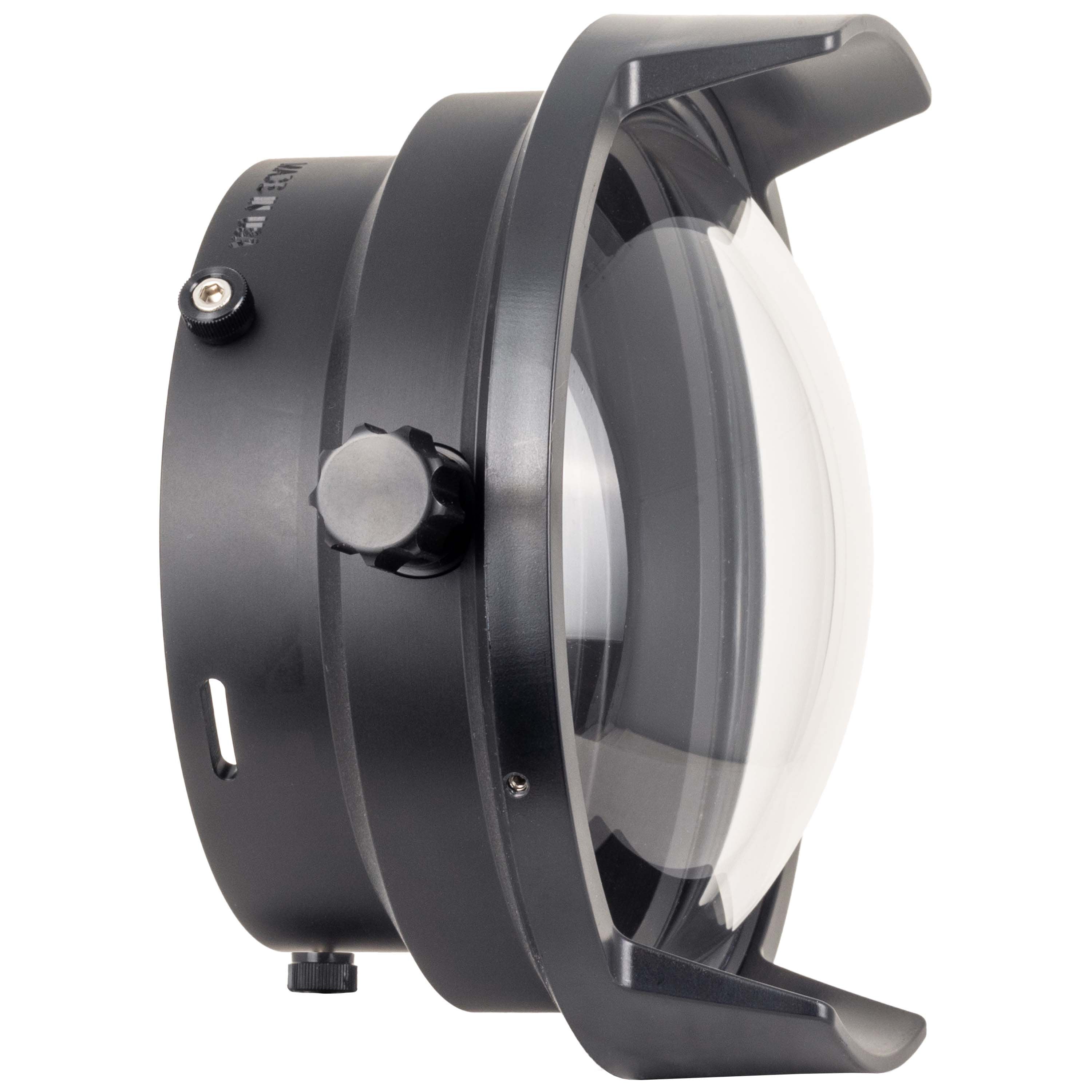

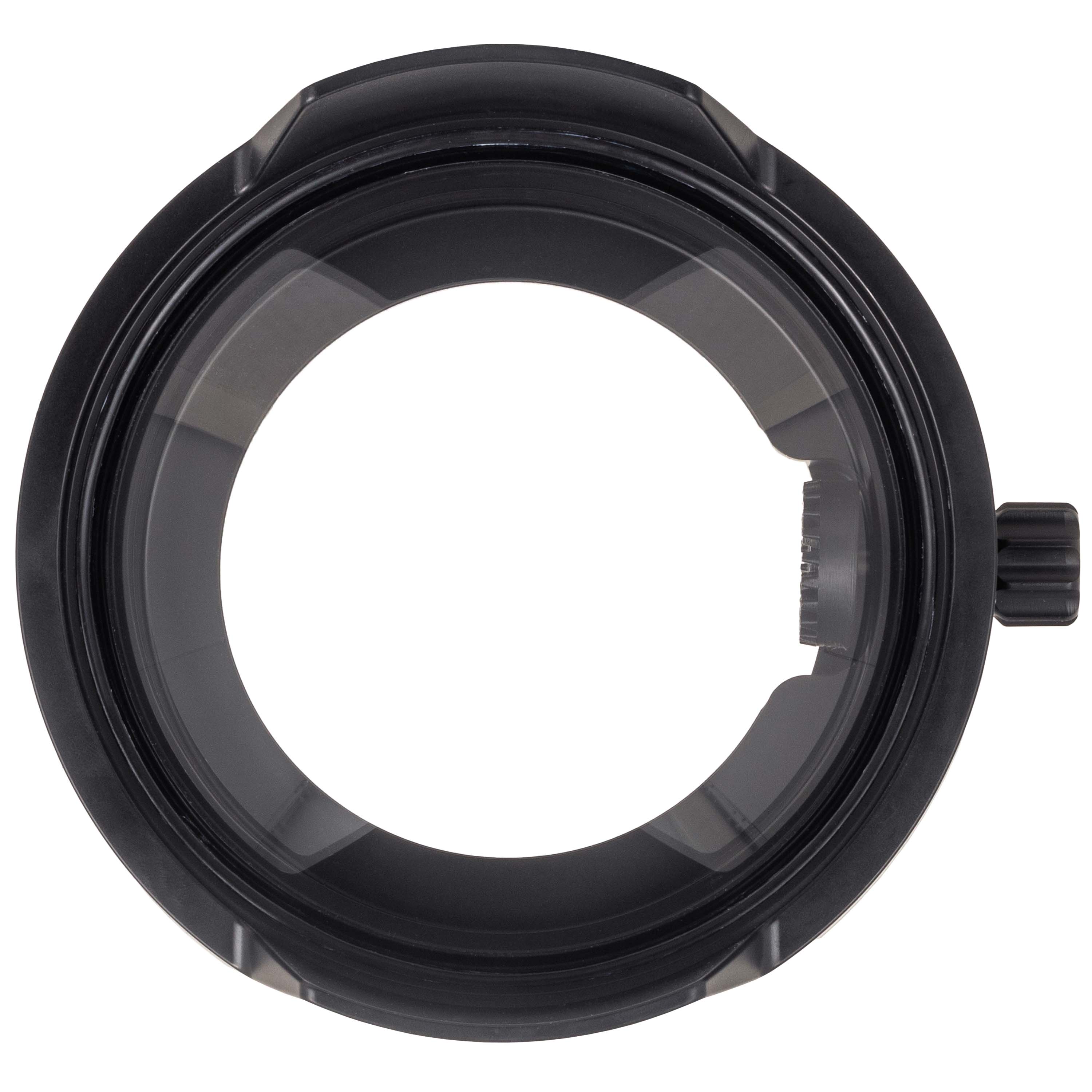

DLM 6 inch Dome Port with Zoom

MSRP $350
Product Number 5516.15

An extended dome port providing zoom function for most mirrorless interchangeable zoom lenses when used with the appropriate zoom sleeve. See Mirrorless Port System section to view lens compatibility.

An optical-grade 6-inch diameter dome allows you to fully take advantage of the angle of view of your lens. Compared to glass, the acrylic front element makes it much lighter weight and easy to pack.

Our unique zoom sleeves are simple and affordable, making it completely painless to use and travel with a variety of lenses. For most lenses, simply install the zoom sleeve between the port and the housing. Then slide your camera into the housing with lens attached. Zoom sleeves are particular to the lens for proper operation. Refer to the next section for information on which zoom sleeve you need for your lens.

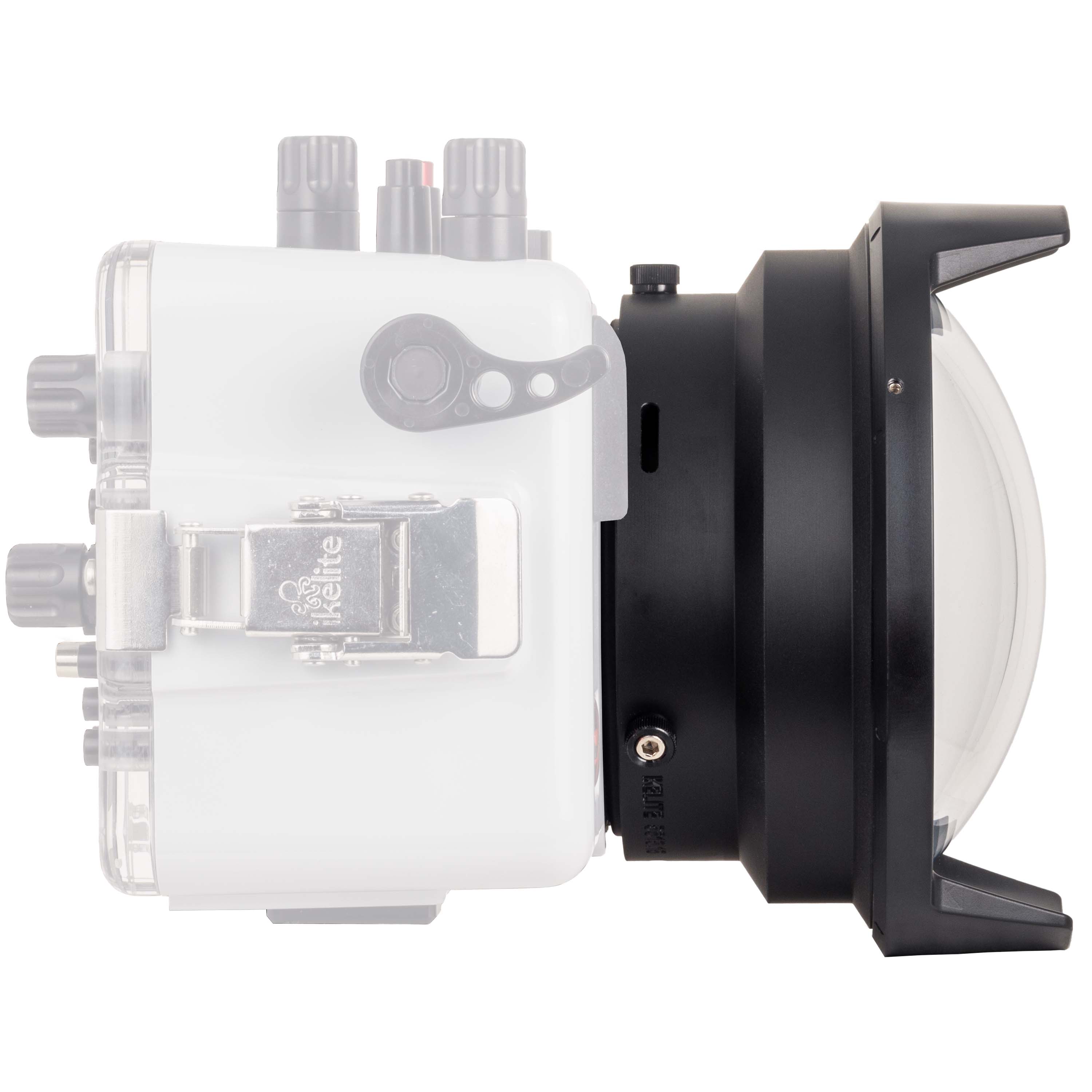

An interchangeable lens camera demands a housing with interchangeable lens ports. It couldn't be more simple to change ports than this system—just press the port on and tighten three thumb screws. Feel positive reinforcement that the port is secure without any complex moving parts that can jam or break in a remote location.

View Mirrorless Port Charts

  • Dome Port
  • Neoprene cover
  • Spare securing screws
  • Spare o-ring
  • Silicone lubricant 1cc tube
  • Delrin body with acrylic dome
0184.2Silicone lubricant 2cc resealable tube 0200.1Neoprene port cover
